HASL RoHS 0.6mm Double Sided Circuit Board For Switch Sensor
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

HASL RoHS 0.6mm Double Sided Circuit Board For Switch Sensor

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-494.V1.0
Base Material:
FR-4
Layer Count:
2 Layers
PCB Thickness:
0.6mm ±0.1
PCB Size:
325 X 147mm=10PCS
Solder Mask:
Green
Silkscreen:
White
Copper Weight:
1oz
Surface Finish:
HASL ,Lead Free,
Highlight:

HASL Double Sided Circuit Board

,

0.6mm Double Sided Circuit Board

,

0.6mm RoHS Printed Circuit Boards

Product Description

Thin PCB 0.6mm HASL PCB FR-4 Double-Sided Circuit Board for Switch Sensor

1. General description
This is a type of 2 layer printed circuit board built on FR-4 substrate with Tg 135°C for the application of switch sensor. It's only 0.6 mm thick with white silkscreen(Taiyo) on green solder mask (Taiyo) and HASL on pads. The base material is from Taiwan ITEQ supplying 10 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

2. Features and benifits
RoHS compliant and suitable for thermal reliability needs
Excellent wetting during component soldering and it can avoid copper corrosion.
Electrical test and high voltage test
Delivery on time. Higher than 98% on-time-delivery rate.
No minimum order quantity. 1 piece is available.
Free stencil shim sent for new user

3, The applications are WiFi Repeater, USB Bluetooth, Video Surveillance System, Access Control Systems, High Frequency Amplifier etc.

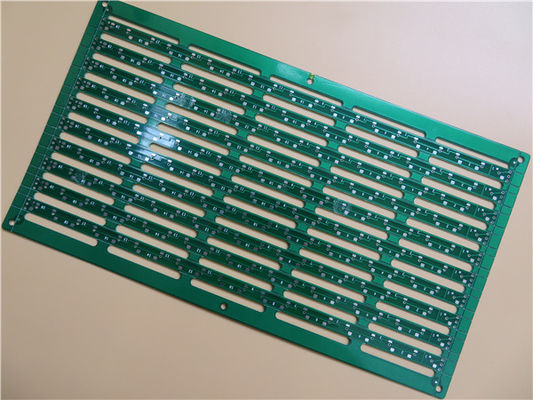

HASL RoHS 0.6mm Double Sided Circuit Board For Switch Sensor 0

4. Parameter and data sheet
PCB SIZE 325 x 147mm=10PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components no
LAYER STACKUP copper ------- 18um(0.5oz)+PLATE
FR-4 0.5mm
copper ------- 18um(0.5oz)+PLATE
TECHNOLOGY
Minimum Trace and Space: 7mil/7.6mil
Minimum / Maximum Holes: 0.5/1.0mm
Number of Different Holes: 5
Number of Drill Holes: 135
Number of Milled Slots: 11
Number of Internal Cutouts: 0
Impedance Control NO
BOARD MATERIAL
Glass Epoxy: FR-4, ITEQ IT-140, TG>135, er<5.4
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 0.6mm ±0.1
PLATING AND COATING
Surface Finish HASL ,Lead Free, Sn>=2.54µm
Solder Mask Apply To: Top and Bottom, 12micon Minimum.
Solder Mask Color: Green, PSR-2000GT600D, Taiyo supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300, Taiyo Supplied.
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated Through Hole(PTH), via tented.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

HASL RoHS 0.6mm Double Sided Circuit Board For Switch Sensor 1
