Dual Layer 2.4mm Medical Equipment PCB With 2oz Copper
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Dual Layer 2.4mm Medical Equipment PCB With 2oz Copper

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-493.V1.0
Base Material:
FR-4
Layer Count:
2 Layers
PCB Thickness:
2.4 Mm ±0.2
PCB Size:
65.5 X 33.75mm=1PCS
Solder Mask:
Green
Silkscreen:
White
Copper Weight:
2oz
Surface Finish:
Immersion Gold
Highlight:

2oz Medical Equipment PCB

,

2.4mm Medical Equipment PCB

,

2.4mm Dual Layer PCB

Product Description

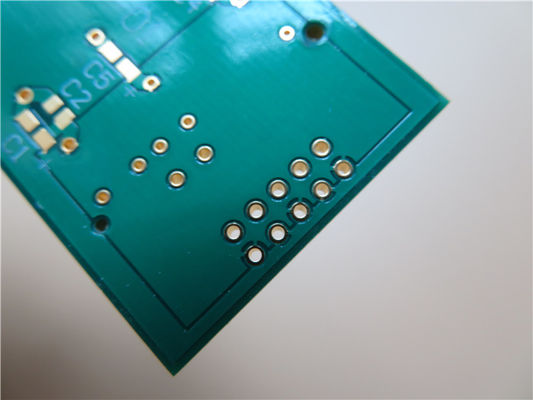

Thick PCB 2.4mm Circuit Board Dual Layer PCB Board Built on FR-4 With 2oz Copper for SATA Carrier

Product profile
1.1 General description
This is a type of 2 oz double sided PCB built on FR-4 substrate with Tg 150°C for the application of micro SATA carrier board. It's 2.4 mm thick with white silkscreen(Taiyo) on green solder mask (Taiyo) and immersion gold(4 microinch gold) on pads. The base material is from ITEQ supplying single PCB. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panels are packed for shipment.

1.2 Features and benifits
Mid Tg substrate with Very Low Moisure Absorption and better CAF resistance
High solderability, no stressing of circuit boards and less contamination of PCB surface.
ISO9001, ISO14001, UL certified manufacturing factory.
30000 square meter month capability
Professional and experienced engineers
12 hours quotation
Volume Production capability

1.3 Applications
Alarm System
Long Range WiFi Antenna
PLC Programming Tutorial
Modular Oscilloscope
Fiber optic receptors

Dual Layer 2.4mm Medical Equipment PCB With 2oz Copper 0

1.4 Parameter and data sheet
PCB SIZE 65.5 x 33.75mm=1PCS
BOARD TYPE Double Sided PCB
Number of Layers 2 Layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 52.5um(1.5oz)+plate TOP layer
FR-4 2.3mm
copper ------- 52.5um(1.5oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space: 23 mil / 7.7 mil
Minimum / Maximum Holes: 0.7 mm / 3.2 mm
Number of Different Holes: 6
Number of Drill Holes: 23
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: FR-4 Tg150℃, er<5.4.IT-158, ITEQ Supplied
Final foil external: 2 oz
Final foil internal: 2 oz
Final height of PCB: 2.4 mm ±0.2
PLATING AND COATING
Surface Finish Immersion gold (12.1% ) 0.1µm over 3µm nickel
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP and Bottom.
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.7mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
