iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer

iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer
iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer

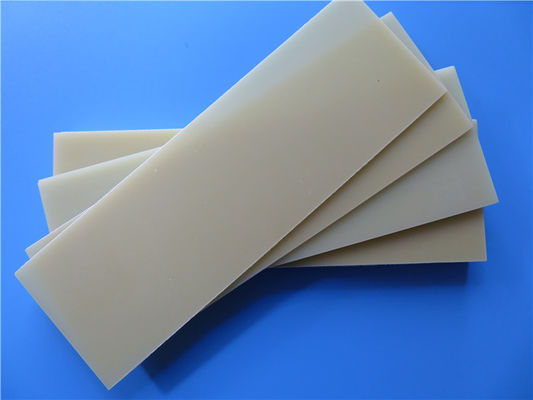

Large Image :  iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-491.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: FR-4 PCB Thickness: 1.6mm ±0.15
PCB Size: 126 X 50 Mm =1UP Surface Finish: NO
High Light:

IPC 6012 Class 2 Blank PCB Board

,

1.6mm Blank PCB Board

,

1.6mm Blank Printed Circuit Board


PCB Spacer Blank FR-4 Board 0.8mm Fiber Board 1.0mm Spacer Board 1.6mm PCB Board

1.1 General description
This is a type of blank PCB built on FR-4 substrate with Tg 150°C for the application of spacer. It's 1.6 mm thick without silkscreen, without solder mask, without copper pattern and surface finish. The base material is from ITEQ supplying single PCBup. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 40 panels are packed for shipment.

1.2 Features and benifits
Very Low Moisure Absorption and better CAF resistance;
Excellent dimensionaly stability;
Strict WIP inspection and monitoring as well as working instruction;
Great customer service;
Diversified shipping method;
Delivery on time: >98%
Customer complaint rate: <1%

iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer 0

1.3 Parameter and data sheet
Number of Layers N/A
Board Type Blank Spacer
Board Size 126 x 50 mm =1UP
Board Thickness 1.5mm +/-0.15
Board Material FR-4
Board Material Supplier ILM
Tg Value of Board Material TG135℃

PTH Cu thickness N/A
Inner Iayer Cu thicknes N/A
Surface Cu thickness N/A

Solder Mask Type and Model No. N/A
Solder Mask Supplier N/A
Solder Mask Colour N/A
Number of Solder Masks N/A
Thickness of Solder Mask N/A

Type of Silkscreen Ink N/A
Supplier of Silkscreen N/A
Color of Silkscreen N/A
Number of Silkscreen N/A

Mininum Trace (mil) N/A
Minimum Gap(mil) N/A

Surface Finish N/A
RoHS Required Yes
Warpage 0.15%

Thermal Shock Test Pass, 288±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test N/A
Function visual inspection
Workmanship Compliance with IPC-A-600H & IPC-6012C Class 2

iPC 6012 Class 2 1.6mm Blank PCB Board No Surface Finishing For Spacer 1
