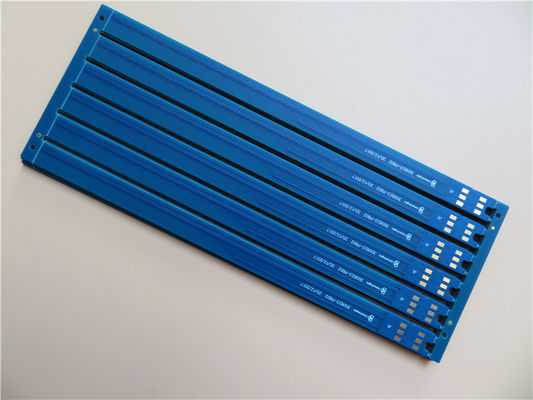

Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board

Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board
Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board

Large Image :  Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-486.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: FR-4 Layer Count: 2 Layers
PCB Thickness: 0.8 Mm ±0.08 PCB Size: 177 X 65 =6 UP
Solder Mask: Matt Blue Silkscreen: White
Copper Weight: 1oz Surface Finish: Selective Hard Gold On Pads 10 U"
High Light:

Hard Gold Medical Equipment PCB

,

0.8mm Medical Equipment PCB

,

0.8mm FR4 Circuit Board


Selective Hard Gold PCB Dual Layer 0.8mm FR-4 Circuit Board for Security Equipment

1.1 General description
This is a type of double sided PCB built on FR-4 substrate with Tg 150°C for the application of Security Equipment. It's 0.8 mm thick with white silkscreen(Taiyo) on matt blue solder mask (Kuangshun) and selective hard gold on pads. The base material is from ITEQ supplying 6 up PCBs per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 40 panels are packed for shipment.

1.2 Features and benifits
Outstanding thermal resistance and suitable for lead-free process;
The plated thick gold is Au-Co alloy, the purity of gold reach 99.7% and the deposition thickness can reach 1 to 3 um thick;
Good wear resistance and low contact resistance;
Meeting your PCB needs from prototype to mass production;
UL recognized and RoHS Directive-compliant;
Experienced sales persons and skilled customer services;

1.3 Applications
Data Acquisition
Car Tracking System
Door Access Control Systems
Microwave Radio Systems

Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board 0

1.4 Parameter and data sheet
PCB SIZE 177 x 65 =6 UP
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components no
LAYER STACKUP copper ------- 18um(0.5oz)+plate TOP layer
FR-4 0.7 mm
copper ------- 18um(0.5oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space: 15 mil / 6.5 mil
Minimum / Maximum Holes: 0.3 mm / 3.5 mm
Number of Different Holes: 2
Number of Drill Holes: 35
Number of Milled Slots: 5
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: FR-4 Tg150℃, er<5.4.IT-158, ITEQ Supplied
Final foil external: 1 oz
Final foil internal: 0 oz
Final height of PCB: 0.8 mm ±0.08
PLATING AND COATING
Surface Finish Selective hard gold on pads 10 u"
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Matt blue, KSM-S6189BLM1
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing, v-cut
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

Hard Gold 0.8mm Medical Equipment PCB FR4 Circuit Board 1

1.5 Printed Circuit Board Capability 2020
Parameter Value
 Layer Counts  1-32
 Substrate Material FR-4(including High Tg 170, High CTI>600V); Aluminum based; Copper based; Rogers RO4350B, RO4003C, RO3003, RO3006, RO3010, RO3210 etc.; Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010 etc..; Taconic TLX-8, TLY-5, RF-35TC, TLF-35 etc..; Arlon AD450, AD600 etc; PTFE F4B DK2.2, DK2.65 etc..; Polyimide and PET.
 Maximum Size  Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
 Board Outline Tolerance  ±0.0059" (0.15mm)
 PCB Thickness 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)  ±8%
Thickness Tolerance(t<0.8mm)  ±10%
 Insulation Layer Thickness 0.00295" - 0.1969" (0.075mm--5.00mm)
 Minimum Track 0.003" (0.075mm)
 Minimum Space  0.003" (0.075mm)
 Outer Copper Thickness  35µm--420µm (1oz-12oz)
 Inner Copper Thickness  17µm--420µm (0.5oz - 12oz)
 Drill Hole(Mechanical) 0.0059" - 0.25" (0.15mm--6.35mm)
 Finished Hole(Mechanical) 0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical) 0.00295" (0.075mm)
 Registration (Mechanical) 0.00197" (0.05mm)
 Aspect Ratio  12:1
 Solder Mask Type  LPI
 Min Soldermask Bridge 0.00315" (0.08mm)
 Min Soldermask Clearance 0.00197" (0.05mm)
 Plug via Diameter 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance  ±10%
 Surface Finish HASL,HASL LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger
