14-Layer Panasonic Megtron M6 High-Speed PCB 2.123mm IPC Class 3 ENIG PCB

Crafted with authentic Panasonic Megtron M6 ultra-low-loss dielectric substrate, this custom 14-layer high-speed PCB is purpose-built for high-performance digital transmission and high-reliability industrial networking systems. With a lamination thickness of 2.123mm and a uniform 1oz finished copper thickness on every conductive layer, it delivers stable current conduction and flawless signal consistency for intricate multilayer circuit layouts. The board features dual-sided green solder mask paired with sharp white silkscreen for clear component identification and robust circuit protection. Complemented by electroless nickel palladium gold (ENEPIG) surface plating, it offers exceptional anti-oxidation performance, reliable solderability, and durable wire bonding compatibility for long-term industrial operation.

Manufactured in full compliance with IPC-6012 Class 3 stringent reliability standards, this Megtron M6 multilayer PCB adopts a 25μm uniform hole copper layer to ensure stable via conduction and structural integrity. It integrates precise impedance control technology to minimize signal crosstalk, eliminate transmission deviation, and maintain accurate signal matching for high-speed circuit operation. To maximize structural density and soldering reliability, all micro-vias under 0.4mm undergo full resin plugging and electroplated flat-filling treatment, completely eliminating hollow via defects. Measuring 100mm × 98mm, this high-precision PCB strictly follows official Megtron M6 manufacturing protocols, making it a premium solution for high-end communication infrastructure, enterprise-grade servers, and sophisticated precision industrial electronic devices.

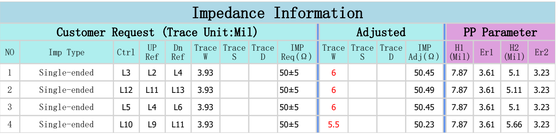

PCB Specifications

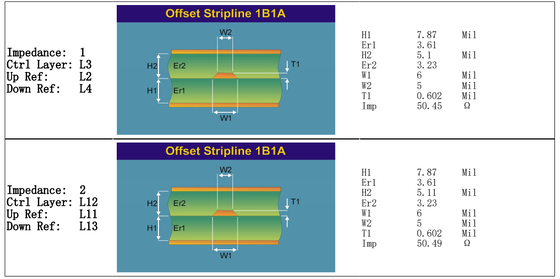

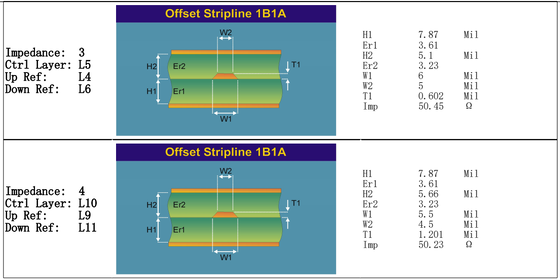

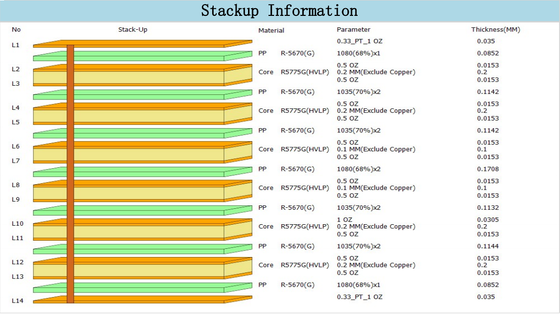

PCB Stack-up

Megtron M6 Official Processing Guidelines

Panasonic Megtron M6 is a premium halogen-free, ultra-low-loss and high-heat-resistance PCB material optimized for high-speed digital and communication infrastructure equipment. Strict compliance with standardized storage, surface preparation, bonding and drying procedures is essential to retain its original low-Df performance, thermal stability and long-term reliability. The standardized fabrication guidelines are summarized as follows:

Material Storage Requirements

Megtron M6 laminates must be stored flat in a cool, dry environment to avoid bending deformation and surface scratches. Original packaging is recommended for long-term preservation. For M6 prepreg materials, professional controlled storage conditions are mandatory: temperature ≤23°C (73°F) and relative humidity ≤50%. Extended-term storage requires low-temperature preservation at 5°C (41°F). All opened prepreg bags must be tightly resealed to prevent moisture absorption. The cumulative exposure time in open environments should not exceed 8 hours to avoid material performance degradation.

Laminate Surface Preparation

Different copper foil types adopt targeted cleaning processes to ensure optimal surface activity. Standard shiny copper surfaces can be treated with conventional industry chemical cleaning or mechanical scrubbing processes. Reverse-treated copper foils require pure chemical cleaning procedures to protect the special surface treatment layer and maintain stable lamination adhesion performance.

Inner Layer Bond Treatment

Multiple oxidation treatment options are available for Megtron M6 inner layer bonding. Both black oxide and brown oxide processes are applicable, while black oxide treatment requires strict peel strength verification before mass production to ensure lamination reliability. The peroxide/sulfuric acid alternative oxide treatment with organic coating is the preferred solution, delivering more stable bonding uniformity and better adaptability for high-speed multilayer lamination.

Professional Drying Standards

Complete moisture removal is critical to prevent delamination and bubbling during lamination. Finished inner layers must be fully dried to eliminate surface and absorbed moisture. The recommended standard process is racked baking at 105°C (225°F) for 20 to 30 minutes. Although some conveyorized oxide treatment equipment provides auxiliary drying functions, independent racked baking is still strongly recommended to guarantee thorough dehumidification and consistent batch quality.

M6 Data sheet
