4 Layer 0.3mm Flexible PCB Board With Black Mask

4 Layer 0.3mm Flexible PCB Board With Black Mask
4 Layer 0.3mm Flexible PCB Board With Black Mask 4 Layer 0.3mm Flexible PCB Board With Black Mask 4 Layer 0.3mm Flexible PCB Board With Black Mask 4 Layer 0.3mm Flexible PCB Board With Black Mask 4 Layer 0.3mm Flexible PCB Board With Black Mask 4 Layer 0.3mm Flexible PCB Board With Black Mask

Large Image :  4 Layer 0.3mm Flexible PCB Board With Black Mask

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-283.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Polyimide Layer Count: 4 Layers
PCB Thickness: 0.3mm PCB Size: 70.18 X 40.28mm
Coverlay: Black Silkscreen: White
Copper Weight: 1oz Surface Finish: Immersion Gold
High Light:

Black Mask Flexible PCB Board


0.3mm Flexible PCB Board


0.3mm 4 Layer PCB

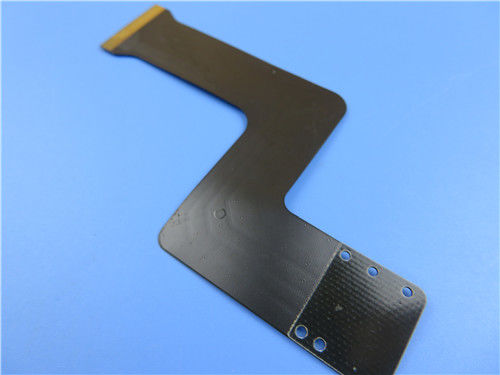

4 Layer Flexible Printed Circuit (FPC) Built On Polyimide With Black Mask and Immersion Gold for Consumer Game Consoles

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)


General description

This is a type of flexible printed circuit for the application of PLC Programing It’s a 4 layer FPC at 0.3mm thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Polyimide stiffener is applied on the inserting part.


Parameter and data sheet

Size of Flexible PCB 70.18 X 40.28mm
Number of Layers 4
Board Type Flexible PCB
Board Thickness 0.30mm
Board Material Polyimide 25µm
Board Material Supplier ITEQ
Tg Value of Board Material 60
PTH Cu thickness 20 µm
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 µm
Coverlay Colour Black
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material Polyimide
Stiffener Thickness 0.2mm
Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1
Peeling test of Coverlay No peelable
Legend Adhesion 3M 90 No peeling after Min. 3 times test
Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0
Thermal Shock Test Pass, -25±125, 1000 cycles.
Thermal Stress Pass, 300±5,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2


4 Layer 0.3mm Flexible PCB Board With Black Mask 0

4 Layer 0.3mm Flexible PCB Board With Black Mask 1


Features and benefits

Excellent flexibility

Reducing the volume

Weight reduction

Consistency of assembly

Increased reliability

The end can be whole soldered

Low cost

Continuity of processing

Focus on low to medium volume production

Make delivery on time. We keep higher than 98% on-time-delivery rate.



Keypad FPC, FFC for industrial control equipment, consumer game consoles


Structure of FPC

According to the number of layers of conductive copper foil, FPC can be divided into single layer circuit, double layer circuit, multi-layer circuit, double sided and so on.


Single-layer structure: the flexible circuit of this structure is the simplest structure of the flexible PCB. Usually the base material (dielectric substrates) + transparent rubber(adhesive) + copper foil is a set of purchased raw materials(semi-manufactures), the protective film and transparent glue are another kind of bought raw material. First, copper foil must be etched to obtain the required circuit, and the protective film should be drilled to reveal the corresponding pad. After cleaning, the two are combined by rolling. Then the exposed part of the pad electroplated gold or tin to protect. In this way, the big panel board will be ready. Generally also it’s stamped into the corresponding shape of the small circuit board. There is also no protective film directly on the copper foil, but printed resistance soldering coating, so that the cost will be lower, but the mechanical strength of the circuit board will become worse. Unless the strength requirement is not high and the price needs to be as low as possible, it is best to apply the protective film method.


Double layer structure: when the circuit is too complex to be wired, or copper foil is needed to shield the ground, it is necessary to choose a double layer or even a multilayer. The most typical difference between a multilayer and a single plate is the addition of a perforated structure to connect the layers of copper foil. The first process of transparent rubber + base material + copper foil is to make holes. Drill holes in the base material and copper foil first, clean and then plated with a certain thickness of copper. The subsequent fabrication process is almost the same as the single-layer circuit.


Double sided structure: both sides of the double sided FPC have pads, mainly used to connect other circuit boards. Although it and monolayer structure is similar, but the manufacturing process is very different. Its raw material is copper foil, protective film and transparent glue. The protective film should be drilled according to the position of the pad first, then the copper foil should be affixed, the pad and track lines should be etched and then the protective film of another drilled hole should be affixed.
