Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate

Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate
Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate

Large Image :  Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-260.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: PET Layer Count: Single Side
PCB Thickness: 0.15mm PCB Size: 70.18 X 68.28mm
Coverlay: Transparent Silkscreen: Black
Copper Weight: 1oz Surface Finish: Immersion Gold
High Light:

RoHS Flat Flex PCB

,

Yellow Coverlay Flat Flex PCB

,

RoHS Multilayer Flex PCB



Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)



General description

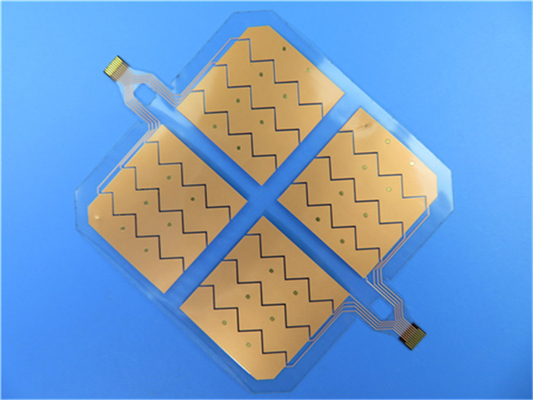

This type of flexible printed circuit is built on PET material for the application of microwave amplifier. It’s a single layer FPC at 0.15mm thick. The base laminate is from Shengyi, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Polyimide stiffener is applied on the inserting part.



Parameter and data sheet

Size of Flexible PCB 70.18 X 68.28mm
Number of Layers 1
Board Type Flexible PCB
Board Thickness 0.15mm
Board Material PET 25µm
Board Material Supplier ITEQ
Tg Value of Board Material 60

PTH Cu thickness N/A
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 µm

Coverlay Colour Transparent
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material Polyimide
Stiffener Thickness 0.2mm

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen Black
Number of Silkscreen 1

Peeling test of Coverlay No peelable
Legend Adhesion 3M 90 No peeling after Min. 3 times test

Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25±125, 1000 cycles.
Thermal Stress Pass, 300±5,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2



Flexible Printed Circuit (FPC) Flexible PCB On Transparent PET Substrate 0



Features and benefits

Excellent flexibility

Reducing the volume

Weight reduction

Consistency of assembly

Increased reliability

The end can be whole soldered

Low cost

Continuity of processing

No minimum order quantity and low cost sample.

Meeting your printed circuit board needs from PCB prototyping to mass volume production.



Applications

Laser head FPC, Tablet PC camera soft board, Automobile sensor flex board



Clarifications of FPC

According to the combination of base material and copper foil, flexible circuit board can be divided into two types: flexible board with adhesive and flexible board without adhesive. The price of non-adhesive flexible PCB is much higher than that of adhesive flexible PCB, but its flexibility, bonding force between copper foil and substrate and flatness of solder are also better than that of adhesive flexible PCB. So it is only used in the high demand situations, such as the: COF (CHIP ON FLEX, flexible board with bare chip, the high flatness of the pad) and so on. Because its price is high, most of the flexible PCBs used in the market are still adhesive flexible circuit board. Because the flexible circuit board is mainly used in the situation where bending is required, if the design or process is not reasonable, it is easy to produce micro-cracks, welding and other defects.



Economy of using FPC

If the circuit design is relatively simple, the total volume is small, and the space is suitable, the traditional internal connection is much cheaper. Flexible circuits are a good design option if the circuit is complex, processes many signals or has special electrical or mechanical requirements. When the size and performance of applications exceed the capacity of rigid circuits, flexible assembly is the most economical. A 12mil pad with a 5mil through hole and a flexible circuit with 3mil lines and spacing can be fabricated on a thin film. Therefore, it is more reliable to mount the chip directly on the film. There is no flame retardant that could be an ion source. These films may be protective and solidified at higher temperatures to obtain higher glass transition temperatures. Flexible materials are less costly than rigid materials because they are free of connectors.
