Hybrid 10 Layer 1.7mm HDI PCB Board RO4350B and FR4

Hybrid 10 Layer 1.7mm HDI PCB Board RO4350B and FR4
Hybrid 10 Layer 1.7mm HDI PCB Board RO4350B and FR4 Hybrid 10 Layer 1.7mm HDI PCB Board RO4350B and FR4 Hybrid 10 Layer 1.7mm HDI PCB Board RO4350B and FR4 Hybrid 10 Layer 1.7mm HDI PCB Board RO4350B and FR4

Large Image :  Hybrid 10 Layer 1.7mm HDI PCB Board RO4350B and FR4

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-084.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RO4350B+FR-4 Layer Count: 10 Layers
PCB Thickness: 1.7mm PCB Size: 210 X 85mm=1PCS
Solder Mask: Red Silkscreen: White
Copper Weight: Outer Layer 35 Um/ Inner Layer 18 Um Surface Finish: Immersion Gold
High Light:

10 Layer HDI PCB Board

,

1.7mm HDI PCB Board

,

1.7mm 10 Layer PCB



Hybrid 10-Layer PCB Rogers RO4350 6.6mil+FR4 Hybrid PCB With Red Solder Mask and Immersion Gold

(PCB's are custom-made products, the picture and parameters shown are just for reference)



Today we’re talking about a type of 10-layer hybrid PCB built on RO4350B and FR-4. This board is used for high gain applications.

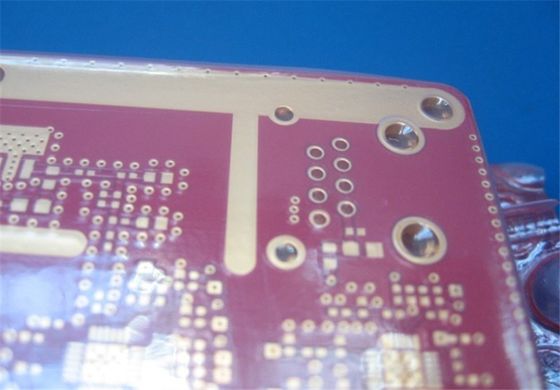

Hybrid 10 Layer 1.7mm HDI PCB Board RO4350B and FR4 0



The board actually is simple, because there’s only through holes connected each layer. Finished height is 1.7mm thick. Pads and holes are immersion gold plated, the surface is with red solder mask. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 boards are packed for shipment.



Hybrid 10 Layer 1.7mm HDI PCB Board RO4350B and FR4 1



Applications

Preamplifier, WiFi amplifier, relay stations and RF transceiver etc.



Our advantages

1) Help you focus on your core competencies on research and development, sales and marketing;

2) 30000 square meter month capability;

3) Meeting your PCB needs from prototype to mass production;

4) Quick and on-time delivery;

5) IATF 16949 (2016), ISO14001 (2015), ISO9001 (2015), UL certified factory.



Parameter and data sheet

PCB SIZE 210 x 85mm=1PCS
BOARD TYPE
Number of Layers Multilayer PCB, 10 Layer PCB
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35um(1oz)+plate TOP layer
RO4350B core 0.168mm
copper ------- 18um(0.5oz) MidLayer 1
RO4450F Prepreg (2x0.1) 0.2mm
copper ------- 18um(0.5oz) MidLayer 2
RO4350B core 0.168mm
copper ------- 18um(0.5oz) MidLayer 3
RO4450F Prepreg (2x0.1) 0.2mm
copper ------- 18um(0.5oz) MidLayer 4
RO4350B core 0.168mm
copper ------- 18um(0.5oz) MidLayer 5
RO4450F Prepreg (2x0.1) 0.2mm
copper ------- 18um(0.5oz) MidLayer 6
RO4350B core 0.168mm
copper ------- 18um(0.5oz) MidLayer 7
FR-4 pregpreg 0.1mm
copper ------- 18um(1oz) MidLayer 8
FR-4 core 0.1mm
copper ------- 35um(1oz)+plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 5.9mil/5.9mil
Minimum / Maximum Holes: 0.3mm/3.8mm
Number of Different Holes: 16
Number of Drill Holes: 11385
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Glass Epoxy: RO4350B, RO4450B mixed with FR-4 TG>135
Final foil external: 1.5oz
Final foil internal: 0.5oz
Final height of PCB: 1.7mm ±0.17
PLATING AND COATING
Surface Finish Immersion Gold (17.7%) 2µ" over 100µ" nickel
Solder Mask Apply To: Top and Bottom, 12micon Minimum.
Solder Mask Color: Red
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP and Bottom.
Colour of Component Legend White, S-380W, Taiyo Supplied.
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated Through Hole(PTH), via tented.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
