Hybrid PCB 1.4mm RO4003C and FR4 Through Holes PCB Impedance Controlled PCB

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-083.V1.0

Base Material:

RO4003C+FR-4; RO4350B + FR4; F4B + FR4; Duroid/RT5880 + RO4350B; Duroid/RT5880 + FR4

Layer Count:

4 Layer, 6 Layer, Multilayer

PCB Thickness:

1.0-5.0mm

PCB Size:

≤400mm X 500mm

Solder Mask:

Green, Red, Blue, Black, Yellow

Silkscreen:

White

Copper Weight:

0.5oz (17 µm), 1oz (35µm), 2oz (70µm)

Surface Finish:

Bare Copper, HASL, ENIG, Immersion Tin, OSP

Highlight:

Through Holes PCB

Impedance Controlled PCB

Product Description

6 Layer Hybrid PCB Made On 12mil 0.305mm RO4003C and FR-4 for Satellite Antenna

Today we’re introducing a type of 6-layer RF PCB built on 12mil RO4003C and FR-4. This board is used for satellite antenna. Following drawing is the stack-up of the board.

Hybrid PCB 1.4mm RO4003C and FR4 Through Holes PCB Impedance Controlled PCB 0

Viewing from the stack-up, the 12mil core is on the top layer and it mainly plays the roles of signal layer. The core has fixed thickness which is very important to the electrical length of RF lines on the circuit board. The rest layers are FR-4 epoxy glass material with similar thickness with RO4003C.

The detailed specifications are as follows.

Base material: 12mil 0.305mm RO4003C+ Tg170 FR-4

Dielectric constant: 3.38+/-0.05

Layer count: 6 layers

Via type: Through holes

Format: 105mm x 80mm = 1 type = 1 piece

Surface finish: Immersion gold

Copper weight: Outer layer 35μm / Inner layer 18μm

Solder mask / Legend: Green / White

Final PCB height: 1.4 mm

Others: Impedance controlled PCB

Standard: IPC 6012 Class 2

Packing: 20 panels are packed for shipment.

Lead time: 10 working days

Shelf life: 6 months

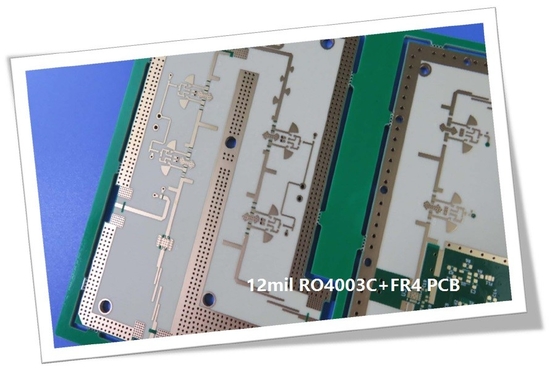

Hybrid PCB 1.4mm RO4003C and FR4 Through Holes PCB Impedance Controlled PCB 1

At present, the mature mixed pressing materials are as follows:

RO4350B + FR4;

RO4003C + FR4;

F4B + FR4;

RT/duroid 5880 + RO4350B

RT/duroid 5880 + FR4

PCB Capability
PCB Type:	Hybrid PCB, Mixed PCB
Mixed type:	RO4350B + FR4;
	RO4003C + FR4;
	F4B + FR4;
	Duroid/RT5880 + RO4350B
	Duroid/RT5880 + FR4
Solder mask:	Green, Red, Blue, Black, Yellow
Layer count:	4 Layer, 6 Layer, Multilayer
Copper weight:	0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness:	1.0-5.0mm
PCB size:	≤400mm X 500mm
Surface finish:	Bare copper, HASL, ENIG, Immersion tin, OSP
