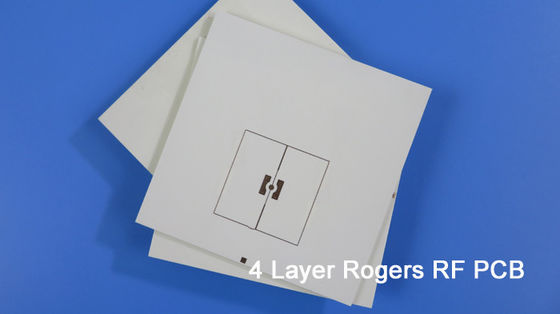

RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor

RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor
RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor

Large Image :  RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-065.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RO4350B Layer Count: 4 Layers
PCB Thickness: 1.0mm Copper Weight: 1oz
Surface Finish: Immersion Gold
High Light:

4 Layer Immersion Gold PCB

,

Blind Via Immersion Gold PCB

,

Blind Via Radar PCB



4 Layer High Frequency PCB Built On 6.6mil and 20mil RO4350B with Blind Via for Radar Sensor

(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)



Multilayer Rogers PCBs are made based on several core combined, which are different from FR-4 multilayer PCBs. As is known to all, there’re 8 cores in RO4350B family, i.e. 4mil (0.101mm) to 60mil (1.524mm).



RO4350B
4mil 0.101mm
6.6mil 0.168mm
10mil 0.254mm
13.3mil 0.338mm
16.6mil 0.422mm
20mil 0.508mm
30mil 0.762mm
60mil 1.524mm



So it’s very interesting that stack-up of 4 layers can be done in many different ways.



Today, we are going to introduce Rogers 4-layer PCBs built on 6.6mil and 20mil RO4350B.

Let’s see first one and stack-up is shown first.



RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor 0



Layer 1 to layer 2 is the first core of 6.6mil, layer 3 to layer 4 is the second core of 20mil, they are combined through 2 sheet of RO4450F (1 RO4450F=4mil). This board is used for radar sensor, 1.0mm thick, pads with immersion gold. It contains blind via from top layer to inner 1. Since it's asymmetric buildup, 1.2% warpage is allowed. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards are packed for shipment.



The second one is very similar to previous one, the stack-up explains all.

RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor 1



Features and benefits

1) The dielectric constant (DK) is low and stable, so the signal transmission is good without delay.

2) Immersion gold has excellent surface planarity, particularly helpful for PCBs with BGA packages or even CSP mounted components to reduce failure rate during assembly and soldering.

3) 100% tests inclusive of electrical test and AOI inspection, thermal stress test, reliability test, insulation resistance test and ionic contamination test,

4) Fast and flexible to save the time of production from prototype to standard production

5) UL recognized and RoHS Directive-compliant



Applications

TV antenna, Transmitter combiner, Sound control switch induction, Tower Mounted Amplifier, RF module, Power splitter, Low Noise Block, 4G antenna



PCB SIZE 70mm x 125mm = 1 piece
BOARD TYPE Multlayer PCB
Number of Layers 4 Layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP Copper -----Signal 18um(0.5 oz)+plate TOP layer
RO4350B 0.508 mm
Copper -----Plain 0.018 mm
Prepreg RO4450F X 3, 0.305mm
Copper ----- Plain 0.018 mm
RO4350B 0.508 mm
Copper ------- 18um(0.5oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 5 mil
Minimum / Maximum Holes: 0.4 mm / 5.6 mm
Number of Different Holes: 12
Number of Drill Holes: 121
Number of Milled Slots: 0
Number of Internal Cutouts: NA
Impedance Control: N/A
Number of Gold finger: N/A
BOARD MATERIAL
Base Material: RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external: 1 oz
Final foil internal: 0.5 oz
Final height of PCB: 1.42 mm ±10%
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



RO4350B 4 Layer Blind Via Immersion Gold PCB For Radar Sensor 2
