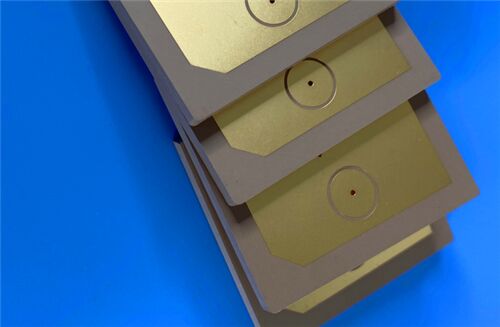

Rogers TMM6 PCB 15mil Substrate 2-layer High Frequency Circuit Board

This PCB utilizes Rogers TMM6 as its base material and adheres strictly to IPC-Class-2 quality standards. It features a 2-layer rigid structure, engineered to meet the high-reliability requirements of RF, microwave, and precision electronic applications.

PCB Specifications

Stack-up Configuration

Rogers TMM6 Material Introduction

Rogers TMM6 is a high-performance thermoset microwave material, formulated as a ceramic thermoset polymer composite specifically tailored for applications requiring high plated thru-hole reliability in stripline and microstrip circuits. This material combines the key advantages of ceramic and traditional PTFE microwave laminates—including excellent dielectric stability and mechanical strength—without the need for specialized production techniques typically required for those materials. Notably, TMM6 offers a unique dielectric constant compared to other materials in Rogers’ product family, expanding its applicability in precision microwave designs.

TMM6 Material Features

TMM6 Material Benefits

-Superior Mechanical Stability: TMM6 boasts excellent mechanical properties that resist creep and cold flow, ensuring long-term dimensional stability even in harsh operating environments.

-Process Chemical Resistance: The material is highly resistant to process chemicals, effectively minimizing damage during etching, plating, and other PCB fabrication procedures.

-Reliable Wire-Bonding Capability: As a thermoset resin-based material, TMM6 enables reliable wire-bonding, a critical requirement for high-frequency and precision electronic assemblies.

-Broad Manufacturing Compatibility: TMM6 is compatible with all common PCB manufacturing processes, eliminating the need for specialized equipment and reducing overall production costs.

Typical Applications

Leveraging its excellent dielectric performance, thermal stability, and manufacturing compatibility, this PCB is ideally suited for a wide range of RF, microwave, and precision electronic applications. Key application areas are as follows:

-RF & Microwave Circuitry

-Power Amplifiers & Combiners

-Filters & Couplers

-Satellite Communication Systems

-GPS Antennas

-Patch Antennas

-Dielectric Polarizers & Lenses

-Chip Testers

Quality & Availability

This PCB strictly complies with IPC-Class-2 quality standards, ensuring consistent performance and reliability for commercial and industrial electronic products. It is available for worldwide, supporting global project requirements and facilitating timely delivery to international customers.
