DiClad 527 PCB Substrate Copper Clad Laminate Sheet

Products

Copper Clad Laminates

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Contact Now

DiClad 527 PCB Substrate Copper Clad Laminate Sheet

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-332.V1.0

Part Number:

DiClad 527

Laminate Thickness:

0.508mm 0.762mm 1.524mm

Laminate Size:

12''X18''(305X457mm) 18''X12''(457X305)18''X 24''(475 X 610mm)24''X18''(610X457mm)

Copper Weight:

0.5OZ(0.018MM), 1OZ（0.035mm);

Highlight:

DiClad 527 PCB copper laminate

copper clad laminate sheet

PCB substrate laminate with warranty

Product Description

DiClad 527 laminates are woven fiberglass-reinforced PTFE composite materials engineered for use as high-performance printed circuit board (PCB) substrates. Through precise calibration of the fiberglass-to-PTFE ratio, DiClad 527 offers a versatile product range—spanning variants with ultra-low dielectric constant (Dk) and dissipation factor (Df), to highly reinforced grades optimized for enhanced dimensional stability.

The woven fiberglass reinforcement core to all DiClad series materials delivers superior dimensional stability when compared to nonwoven fiberglass-reinforced PTFE laminates of equivalent dielectric constant. Rogers’ stringent process control and consistency for PTFE-coated fiberglass cloth enable a broader spectrum of available Dk values, while also producing laminates with improved dielectric constant uniformity over comparable nonwoven fiberglass-reinforced alternatives. DiClad materials feature unidirectionally aligned coated fiberglass plies; cross-plied configurations of most grades are available under the CuClad product line.

DiClad 527 laminates are ideally suited for applications where dielectric constant uniformity is a critical performance parameter, including RF filters, couplers, and low-noise amplifiers (LNAs). They are also a high-value choice for power dividers and combiners, where minimal signal loss is paramount. With a dielectric constant (Er) range of 2.40–2.65, DiClad 527 utilizes a higher fiberglass-to-PTFE ratio to achieve mechanical performance that approaches conventional PCB substrates—alongside additional advantages of enhanced dimensional stability and reduced thermal expansion across all axes. The electrical properties of DiClad 527 laminates are validated through rigorous testing at 1 MHz and 10 GHz, respectively.

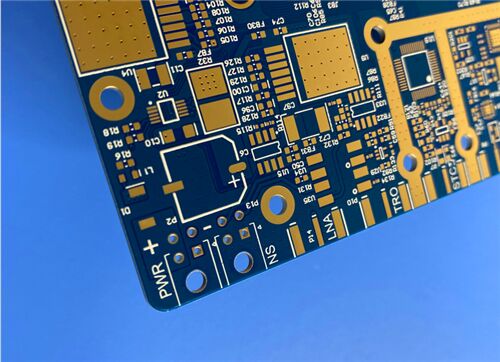

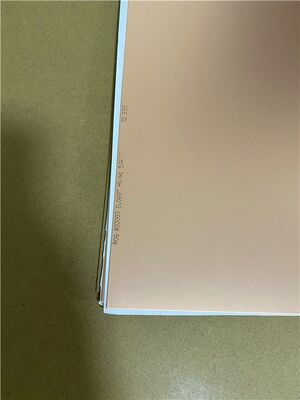

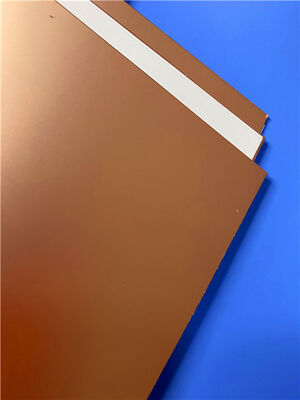

DiClad 527 PCB Substrate Copper Clad Laminate Sheet 0

Features & Benefits

Ultra-low loss tangent
Exceptional dimensional stability
Consistent product performance
Highly uniform electrical properties across the operating frequency range
Reliable, repeatable mechanical performance
Superior chemical resistance

Typical Applications

Military radar feed networks
Commercial phased array antenna networks
Low-loss base station antennas
Missile guidance systems
Digital radio antennas
RF filters, couplers, and low-noise amplifiers (LNAs)

Properties	DiClad 527	Units	Test Conditions	Test Method
