IsoClad 933 PCB Substrate Copper Clad Laminate Sheet

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-332.V1.0

Part Number:

IsoClad 933

Laminate Thickness:

0.381mm 0.787mm 1.575mm

Laminate Size:

305X460mm(12X18''); 24X18''(610X457mm)

Copper Weight:

0.5OZ(0.018MM), 1OZ（0.035mm);

Highlight:

IsoClad 933 PCB substrate

copper clad laminate sheet

PCB substrate with warranty

Product Description

IsoClad® 933 laminates are nonwoven fiberglass-reinforced PTFE composite materials tailored for deployment as printed circuit board (PCB) substrates. The nonwoven reinforcement architecture imparts enhanced flexural capability, making these laminates ideally suited for applications requiring post-fabrication circuit bending—conformal or “wrap-around” antennas represent a prime use case for this attribute.

Unlike standard nonwoven fiberglass/PTFE alternatives, IsoClad series laminates incorporate longer randomly oriented fibers and leverage a proprietary manufacturing process to deliver superior dimensional stability and enhanced dielectric constant (Dk) uniformity, even when compared to competitive products with equivalent dielectric constant values.

With a dielectric constant (Er) of 2.33, IsoClad 933 laminates utilize a higher fiberglass-to-PTFE ratio to form a highly reinforced composite structure. This optimized formulation achieves improved dimensional stability alongside elevated mechanical strength, without compromising core electrical performance.

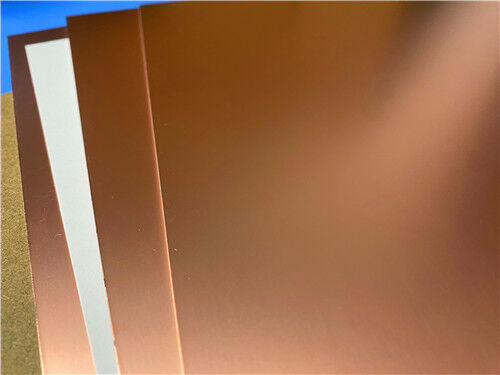

IsoClad 933 PCB Substrate Copper Clad Laminate Sheet 0

Features

Nonwoven fiberglass reinforcement
Low dielectric constant (Er = 2.33)
Ultra-low signal loss

Benefits

Reduced rigidity versus woven fiberglass-reinforced laminates
Exceptional isotropy across the X, Y, and Z axes

Typical Applications

Conformal antennas
Stripline and microstrip circuits
Missile guidance systems
Radar and electronic warfare systems

Property	Test Method	Condition	IsoClad 933
Dielectric Constant @ 10 GHz	IPC TM-650 2.5.5.5	C23/50	2.33
Dissipation Factor @ 10 GHz	IPC TM-650 2.5.5.5	C23/50	0.0016
Thermal Coefficient of Er (ppm/°C)	IPC TM-650 2.5.5.5 (Adapted)	-10°C to +140°C	-132
Peel Strength (lbs.per inch)	IPC TM-650 2.4.8	After Thermal	10
Volume Resistivity (MΩ-cm)	IPC TM-650 2.5.17.1	C96/35/90	3.5 x 10⁸
Surface Resistivity (MΩ)	IPC TM-650 2.5.17.1	C96/35/90	1.0 x 10⁸
Arc Resistance (seconds)	ASTM D-495	D48/50	>180
Tensile Modulus (kpsi)	ASTM D-638	A, 23°C	173, 147
Tensile Strength (kpsi)	ASTM D-882	A, 23°C	6.8, 5.3
Compressive Modulus (kpsi)	ASTM D-695	A, 23°C	197
Flexural Modulus (kpsi)	ASTM D-790	A, 23°C	239
Dielectric Breakdown (kV)	ASTM D-149	D48/50	>45
Density (g/cm³)	ASTM D-792 (Method A)	A, 23°C	2.27
Water Absorption (%)	MIL-S-13949H 3.7.7; IPC TM-650 2.6.2.2	E1/105 + D24/23	0.05
Coefficient of Thermal Expansion (ppm/°C)	IPC TM-650 2.4.24; Mettler 3000 Thermomechanical Analyzer	0°C to 100°C	X Axis: 31
Y Axis: 47	Y Axis: 35
Z Axis: 236	Z Axis: 203
Thermal Conductivity (W/mK)	ASTM E-1225	100°C	0.263
Outgassing Requirements	125°C, ≤10⁻⁶ torr	-
Total Mass Loss (%)	Maximum 1.00%	125°C, ≤10⁻⁶ torr	0.03
Collected Volatile Condensable Material (%)	Maximum 0.10%	125°C, ≤10⁻⁶ torr	0.00
Water Vapor Regain (%)	-	125°C, ≤10⁻⁶ torr	0.02
Visible Condensate	±	125°C, ≤10⁻⁶ torr	NO
Flammability	UL 94 Vertical Burn; IPC TM-650 2.3.10	C48/23/50, E24/125	Meets requirements of UL94-V0

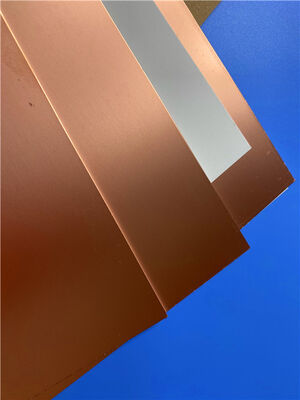

IsoClad 933 PCB Substrate Copper Clad Laminate Sheet 1
