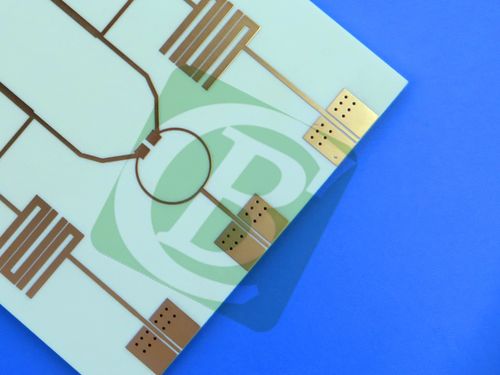

High-Frequency 2-Layer RF PCB RO4730G3 Material ENIG Finish

High-Frequency 2-Layer RF PCB RO4730G3 Material ENIG Finish

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-052.V1.0
Base Material:
Rogers RO4730G3
Layer Count:
2-layer
PCB Thickness:
0.6 Mm
PCB Size:
59.6mm X 40.5mm (
Copper Weight:
1oz (equivalent To 1.4 Mils Or 35μm)
Surface Finish:
Electroless Nickel Immersion Gold (ENIG)
Highlight:

2-layer RF PCB RO4730G3

,

ENIG finish Rogers PCB

,

high-frequency Rogers PCB board

Product Description
High-Frequency 2-Layer RF PCB RO4730G3 Material ENIG Finish

This is a high-quality, double-sided PCB engineered for radio frequency (RF) applications, particularly suited for antenna systems. It is fabricated using Rogers RO4730G3 antenna-grade laminate, ensuring superior electrical performance, reliability, and cost-effectiveness.



1. PCB Specifications

Specification Category Details
Base Material Rogers RO4730G3 (hydrocarbon/ceramic laminate) – Low-loss, high-frequency substrate; robust and economical alternative to traditional PTFE-based substrates.
Layer Count 2 layers
Physical Dimensions - Board size: 59.6mm x 40.5mm (1 piece)- Dimensional tolerance: ±0.15mm
Design Rules – Traces & Holes - Minimum Trace/Space: 5 mil / 5 mil- Minimum Drill Size: 0.4mm
Design Rules – Vias - Via Type: Through-hole vias only (no blind vias)- Via Plating Thickness: 20 μm
Board Thickness Finished board thickness: 0.6 mm
Copper Weight 1 oz (equivalent to 35 μm) on both outer layers
Surface Finish Electroless Nickel Immersion Gold (ENIG) – Provides a flat, solderable surface with excellent oxidation resistance; optimized for RF performance.
Solder Mask - Top side: Green (LPI, Liquid Photoimageable) solder mask- Bottom side: No solder mask (exposed copper)
Silkscreen - Top side: White legend silkscreen- Bottom side: No silkscreen



2. PCB Stack-up

Layer Position Material Thickness
Top Layer 35 μm Copper 35 μm (1oz)
Core Layer Rogers RO4730G3 0.508mm (20mil)
Bottom Layer 35 μm Copper 35 μm (1oz)



High-Frequency 2-Layer RF PCB RO4730G3 Material ENIG Finish 0



3. Key Material Features & Benefits (RO4730G3):

The use of Rogers RO4730G3 material provides significant advantages for RF designs:



-Optimized RF Performance: Stable dielectric constant (Dk) of 3.00 ± 0.05 at 10 GHz and an ultra-low dissipation factor of 0.0028 for reduced insertion loss.



-Low Passive Intermodulation (PIM): Ideal for cellular base station antennas where signal integrity is critical.



-Excellent Thermal Stability: High Tg >280°C and a low Thermal Coefficient of Dk (34 ppm/°C) ensure consistent electrical performance across temperature variations.



-Ease of Fabrication: Fully compatible with standard FR-4 multi-layer processing and lead-free assembly, eliminating the need for specialized PTFE treatments.



-Lightweight & Robust: Unique filler system makes the material 30% lighter than PTFE/glass and features a CTE matched to copper for enhanced reliability.



-Environmental Compliance: RoHS compliant and compatible with lead-free soldering processes.



Characteristic Category Technical Specification
Stable Dielectric Constant (Dk) 3.00 ± 0.05 at 10 GHz
Ultra-Low Signal Loss Dissipation factor of 0.0028 at 10 GHz
Superior Thermal Stability (TCDk) Thermal Coefficient of Dk: 34 ppm/°C
High Thermal Resilience - Glass Transition Temperature (Tg): >280°C- Decomposition Temperature (Td): 411°C (TGA)
Controlled Thermal Expansion (CTE) - X-axis: 15.9 ppm/°C- Y-axis: 14.4 ppm/°C- Z-axis: 35.2 ppm/°C
Efficient Heat Dissipation Thermal Conductivity: 0.45 W/mK



4. Typical Applications:

This PCB is ideally suited for:



-Cellular Base Station Antennas

-Various other RF and antenna applications requiring stable electrical performance and low loss.



Quality & Testing: Manufactured to IPC-Class-2 standards and undergoes 100% electrical testing prior to shipment to ensure functionality and reliability.



Artwork Format: Gerber RS-274-X– the universal industry standard, compatible with fabrication facilities worldwide.



Availability: This PCB is available for order and shipment worldwide.



High-Frequency 2-Layer RF PCB RO4730G3 Material ENIG Finish 1
