0.5oz Rogers 4350 PCB Board

0.5oz Rogers 4350 PCB Board
0.5oz Rogers 4350 PCB Board 0.5oz Rogers 4350 PCB Board

Large Image :  0.5oz Rogers 4350 PCB Board

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-085.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RO4350B Layer Count: 1 Layer, 2 Layer, Multilayer, Hybrid Type (Mixed)
PCB Thickness: 10mil (0.254mm), 20mil (0.508mm); 30mil (0.762mm), 60mil (1.524mm) PCB Size: ≤400mm X 500mm
Solder Mask: Green, Black, Blue, Yellow, Red Etc. Silkscreen: White
Copper Weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm) Surface Finish: Bare Copper, HASL, ENIG, Silver, OSP,etc.
High Light:

UL Rogers PCB Board

,

0.5oz Rogers PCB Board

,

UL Printed Circuit Board



Rogers RO4350B High Frequency Printed Circuit Board with 10mil, 20mil, 30mil and 60mil thick Coating with Immersion Gold

(PCB's are custom-made products, the picture and parameters shown are just for reference)

Hello Everyone,
Today, we’re going to introduce high frequency PCB built on RO4350B laminates.



RO4350B is a woven glass cloth reinforced hydrocarbon resin ceramic-filled laminate from Rogers Corporation, which has very similar electrical properties to PTFE/fabric glass cloth material and its processability is similar to epoxy resin/glass cloth material.



The Reason for using RO4350B Laminates

1. Superior high frequency performance

RO4350B materials are hydrocarbon ceramic filled laminates, not PTFE which are designed to offer superior high frequency performance.



2. Low dielectric loss

Low loss results in excellent electrical performance and allows applications with high operating frequencies.



3. Stable electrical properties versus frequency

RO4350B material possesses the properties of RF microwave circuits, matching networks and controlled impedance transmission lines.



4. Low thermal coefficient of dielectric constant

This allows the RO4350B to exhibit excellent dimensional stability, a property needed for mixed dielectric multi-layer PCBs constructions and reliable plated through holes.



5. Cost

RO4350B laminates can be fabricated using standard FR-4 processes, do not require speicalized via preparation prcoesses, can be processed by automated handling systems and scrubbing equipment used for copper surface preparation. This properties allow it can be using in volume manufacturing and get competitively priced.



PCB Capability

Double sided circuit boards on RO4350B are available in a variety of thicknesses, such as 10mil, 20mil, 30mil and 60mil. It's used in a variety of typical and non-traditional microwave / radio frequency applications, such as base station antennas, attenuator, power amplifiers, RFID, radar and sensors etc.


PCB Material:Glass reinforced hydrocarbon ceramic laminates
Code:Rogers RO4350B
Dielectric constant:3.48 ±0.05 (process)
3.65 (design)
Layer count:1 Layer, 2 Layer, Multilayer, Hybrid type (Mixed)
Copper weight:0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness:10mil (0.254mm), 20mil (0.508mm)
30mil (0.762mm), 60mil (1.524mm)
PCB size:≤400mm X 500mm
Solder mask:Green, Black, Blue, Yellow, Red etc.
Surface finish:Bare copper, HASL, ENIG, Silver, OSP,etc.


Multilayer PCB

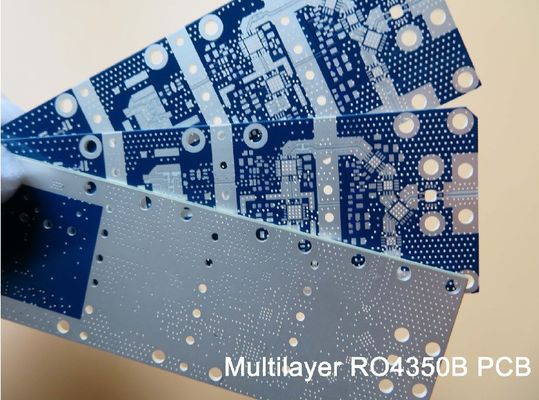

The multilayer PCB is made on core of RO4350B, such as 4-layer board on 6.6mil core and 20mil core, 4-layer board on 2 cores of 10mil. This is different from multilayer PCB on FR-4. The core has fixed thickness which is very important to the electrical length of RF lines on the circuit board.

Hybrid PCB
In order to save production cost without reducing signal loss in high frequency environment, FR-4 glass fiber material is mixed with RO4350B in multi-layer circuit board. The high frequency material is used in signal layer and FR-4 glass fiber material is used in other layers.

0.5oz Rogers 4350 PCB Board 0

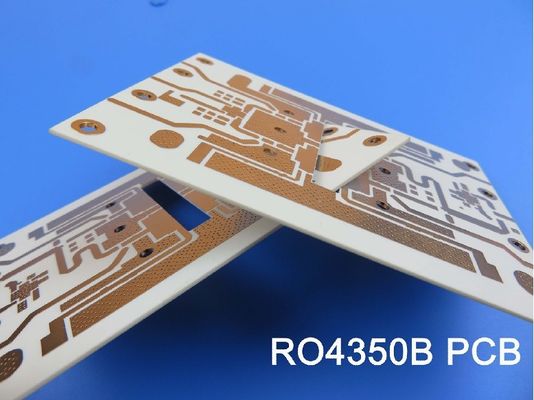

RO4350B PCB
The basic colour of RO4350B PCB is white.

We specialize in provide you with prototype, small batches and mass production service.
