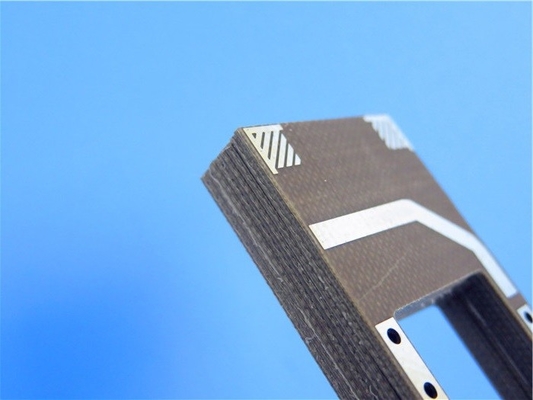

0.8mm DiClad 870 RF PCB Dual Layer Rigid Boards With ENEPIG

0.8mm DiClad 870 RF PCB Dual Layer Rigid Boards With ENEPIG
0.8mm DiClad 870 RF PCB Dual Layer Rigid Boards With ENEPIG 0.8mm DiClad 870 RF PCB Dual Layer Rigid Boards With ENEPIG 0.8mm DiClad 870 RF PCB Dual Layer Rigid Boards With ENEPIG

Large Image :  0.8mm DiClad 870 RF PCB Dual Layer Rigid Boards With ENEPIG

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99/PCS-99.99/PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
High Light:

RF PCB Rigid Boards


Dual Layer Rigid Boards



Introducing the newly shipped RF PCB.Which is built is built on 31mil rogers DiClad 870 substrates. Designed with a focus on achieving lower dielectric constants, the DiClad 870 PCB offers exceptional electrical properties for a wide range of applications. It utilizes a unique composition of woven fiberglass and a higher ratio of PTFE content, resulting in reduced dielectric constants (Dk) and dissipation factors compared to other laminates in the DiClad series, all while maintaining a similar thickness.


Key Features:

The DiClad 870 PCB stands out with its impressive DK of 2.33 at both 10 GHz and 1 MHz, 50% RH. This ensures excellent signal transmission capabilities. Additionally, it exhibits an exceptionally low dissipation factor of only 0.0013 at 10 GHz and 0.0009 at 1 MHz, 50% RH, providing minimal signal loss.


Temperature fluctuations are not a concern as the DiClad 870 PCB offers a temperature coefficient of DK (TcDK) of -161 ppm/°C. It covers a wide temperature range of -10~140°C at 10 GHz, ensuring stable performance even under varying environmental conditions.

Moisture-related issues are minimized with this PCB, thanks to its moisture absorption rate of just 0.02%. This outstanding resistance to moisture ensures reliable operation in diverse environments.


The DiClad 870 PCB demonstrates excellent dimensional stability with a coefficient of thermal expansion (CTE) of 17 ppm/°C in the X-axis, 29 ppm/°C in the Y-axis, and 217 ppm/°C in the Z-axis. This stability guarantees precise performance and reliability.


Parameter Value
 Layer Counts  1-32
 Substrate Materials RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; IsoClad 917; CLTE, CLTE-XT, CLTE-AT, CLTE-MW; Nelco N4000, N9350, N9240; SCGA-500 GF220, SCGA-500 GF255, SCGA-500 GF265, SCGA-500 GF300; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
 Maximum Size  Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
 Board Outline Tolerance  ±0.0059" (0.15mm)
 PCB Thickness 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)  ±8%
Thickness Tolerance(t<0.8mm)  ±10%
 Insulation Layer Thickness 0.00295" - 0.1969" (0.075mm--5.00mm)
 Minimum Track 0.003" (0.075mm)
 Minimum Space  0.003" (0.075mm)
 Outer Copper Thickness  35µm--350µm (1oz-10oz)
 Inner Copper Thickness  17µm--350µm (0.5oz - 10oz)
 Drill Hole(Mechanical) 0.0079" - 0.25" (0.2mm--6.35mm)
 Finished Hole(Mechanical) 0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical) 0.00295" (0.075mm)
 Registration (Mechanical) 0.00197" (0.05mm)
 Aspect Ratio  12:1
 Solder Mask Type  LPI
 Min Soldermask Bridge 0.00315" (0.08mm)
 Min Soldermask Clearance 0.00197" (0.05mm)
 Plug via Diameter 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance  ±10%
 Surface Finish HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc.


Key Benefits:

With an extremely low loss tangent, the DiClad 870 PCB offers enhanced signal quality and reduced signal distortion. This makes it an ideal choice for applications where signal integrity is critical.


The PCB's excellent dimensional stability ensures precise performance, making it suitable for applications that require high accuracy and reliability over time.


Consistency is key, and that's exactly what the DiClad 870 PCB delivers. Its product performance uniformity guarantees consistent results across different PCBs, enabling reliable and predictable performance in various electronic systems.


The DiClad 870 PCB maintains highly uniform electrical properties across different frequencies. This feature ensures consistent signal transmission and reception, regardless of the frequency of operation.


Reliability and durability are crucial, and the DiClad 870 PCB delivers on both fronts. Its consistent mechanical performance ensures long-term reliability and durability in demanding applications.


Chemical resistance is another advantage of the DiClad 870 PCB. It is highly resistant to corrosive elements, providing protection against chemical damage and ensuring long-lasting performance.


When it comes to moisture absorption, the DiClad 870 PCB boasts the lowest rate among PTFE-based composites. This exceptional characteristic enhances the PCB's reliability and performance, particularly in humid environments.


The stable DK values of the DiClad 870 PCB across a wide frequency range make it suitable for applications that require consistent performance across different frequencies. This ensures reliable operation across a broad spectrum of applications.

The low DK value of the DiClad 870 PCB allows for wider line widths, reducing insertion loss and enabling more efficient signal transmission.


0.8mm DiClad 870 RF PCB Dual Layer Rigid Boards With ENEPIG 0


PCB Stackup:

This PCB is a 2-layer rigid PCB with the following stackup:

- Copper Layer 1: 35 μm
- DiClad 870: 0.787 mm (31 mil)
- Copper Layer 2: 35 μm


The dimension of this PCB has a board dimension of 174mm x 44.5mm (1 piece), with a tolerance of +/- 0.15mm. It supports a minimum trace/space of 4/4 mils and a minimum hole size of 0.25mm. The finished board thickness is 0.8mm, with a finished copper weight of 1oz (1.4 mils) for outer layers. Via plating thickness is 20 μm. This PCB is finished with an ENEPIG surface finish. The top and bottom layers feature white silkscreen and green solder mask. Prior to shipment, every PCB undergoes a 100% electrical test to ensure quality.


This PCB features 42 components and a total of 103 pads. It includes 68 thru-hole pads, 35 top SMT pads, and 0 bottom SMT pads. There are 73 vias and 3 nets.


This PCB accepts Gerber RS-274-X artwork format, ensuring compatibility with standard design tools.


This PCB complies with IPC-Class-2 standards, guaranteeing high-quality manufacturing processes and reliable performance.


The DiClad 870 PCB is available for worldwide distribution, providingaccessibility to customers globally.


0.8mm DiClad 870 RF PCB Dual Layer Rigid Boards With ENEPIG 1


Typical Applications:

The DiClad 870 PCB is designed to excel in various applications, including:

- Radar feed networks
- Commercial phased array networks
- Low-loss base station antennas
- Guidance systems
- Digital radio antennas
- Filters, couplers, and low-noise amplifiers (LNAs)


Experience superior performance and exceptional reliability with the DiClad 870 PCB. Its advanced performance and outstanding electrical properties make it the perfect choice for demanding electronic applications.
