1mm 6-Layer IS370HR PCB Board With Immersion Gold And Impedance Controlled

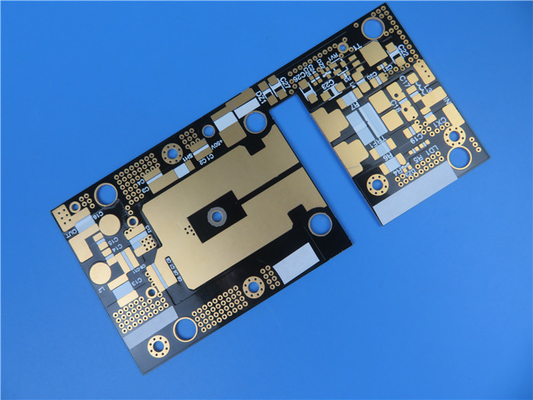

Introducing our newly shipped PCB, designed to meet the highest standards of performance, reliability, and thermal efficiency. This 6-layer rigid PCB utilizes Isola 370HR high-performance FR-4 material, offering exceptional characteristics for a wide range of applications. With a glass transition temperature of 180°C and a decomposition temperature of 340°C, this PCB ensures reliable operation even in demanding environments.

The key features of this PCB include its high thermal performance, allowing for efficient heat dissipation. It guarantees high throughput and accuracy during fabrication and assembly processes, ensuring optimal functionality. Additionally, its excellent CAF resistance and low coefficient of thermal expansion (CTE) contribute to its long-term reliability.

The stackup of this PCB consists of copper layers, prepreg 370HR, and FR-4 core 370HR, providing the necessary stability and structural integrity.

The finished board thickness is 1.02mm, with a finished copper weight of 1 oz (1.4 mils) per layer. The surface finish is Electroless Nickel Immersion Gold (ENIG), ensuring excellent conductivity and corrosion resistance.

With a board dimension of 122.87mm x 128.5mm, this PCB offers ample space for component placement. It supports minimum trace/space of 4/4 mils and minimum hole size of 0.203mm. The via plating thickness is 20μm, and the silkscreen is applied in white color on both top and bottom layers.

This PCB complies with IPC-Class-2 standards, guaranteeing high-quality manufacturing and adherence to industry guidelines. It has undergone a 100% electrical test before shipment, ensuring optimal functionality and reliability.

With 82 components and 120 pads, this PCB is suitable for various applications in computing, storage, consumer electronics, networking, medical equipment, automotive systems, and more. Its exceptional thermal performance and reliability make it an ideal choice for applications where these qualities are crucial.

We offer worldwide availability for this PCB, ensuring that customers from different regions can benefit from its superior performance. For any technical inquiries or further information, please contact our sales team at sales10@bichengpcb.com.

Choose our PCB for your next project and experience the reliability and performance you deserve.
