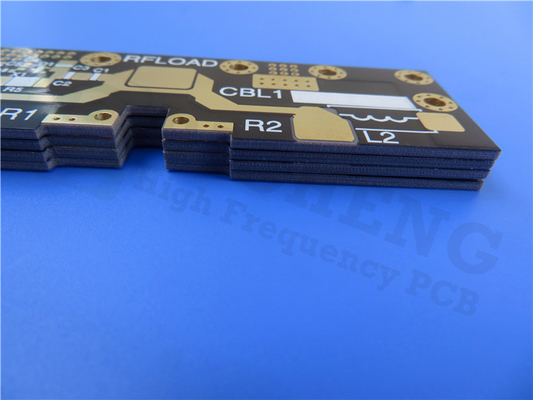

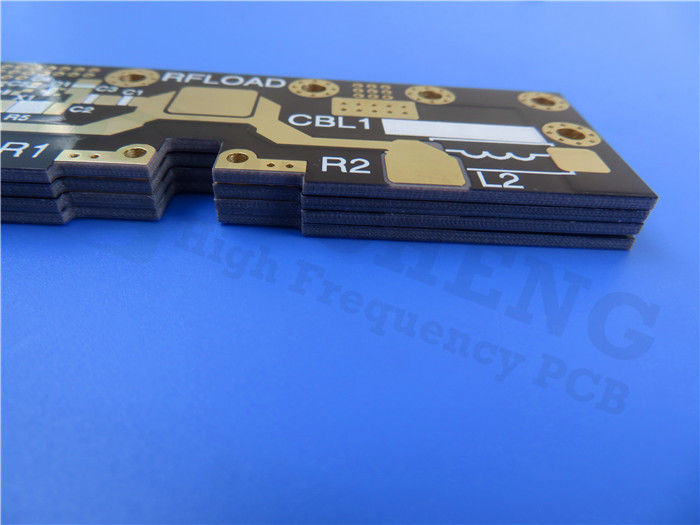

Introducing our newly shipped PCB, expertly crafted with Rogers RT/duroid 5870 glass microfiber reinforced PTFE composites. This 2-layer rigid PCB is designed to meet the demands of high-frequency applications, offering exceptional electrical performance and reliability.
The PCB's material, Rogers RT/duroid 5870, is a well-established and widely trusted reinforced PTFE material. With a process DK of 2.33 +/- 0.02 at 10 GHz/23°C and a dissipation factor of 0.0012 at the same frequency and temperature, it ensures the lowest electrical loss among reinforced PTFE materials. This enables efficient signal transmission and minimal signal loss, guaranteeing high-fidelity performance.

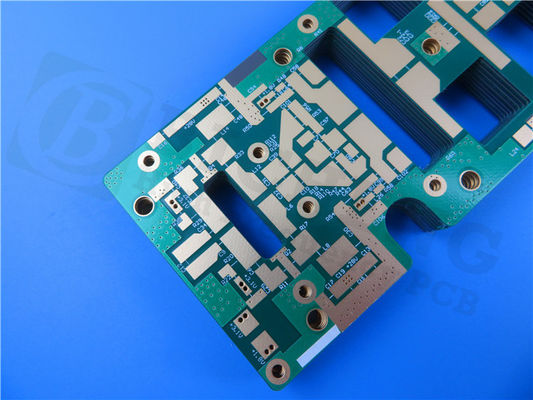

The construction details of the PCB include a copper layer on both sides, each with a thickness of 35 μm. The Rogers Core RT/duroid 5870 layer has a thickness of 0.787 mm (31mil), providing excellent dimensional stability and signal integrity. The finished board has a thickness of 0.9mm, ensuring a compact and reliable design. The board dimensions are precisely manufactured at 45mm x 51mm, with a tolerance of +/- 0.15mm.
This PCB offers exceptional versatility and ease of use. It can be easily cut, shared, and machined to shape, allowing for seamless integration into various applications. Its resistance to solvents and reagents used in etching or plating edges and holes ensures long-term durability and reliability.
Built to withstand harsh environments, our PCB is ideal for high moisture environments. It exhibits isotropic properties, ensuring uniform electrical performance over a wide frequency range. This makes it suitable for a range of applications, including commercial airline broadband antennas, microstrip and stripline circuits, millimeter-wave applications, radar systems, guidance systems, and point-to-point digital radio antennas.
To maintain the highest quality standards, our PCBs undergo a 100% electrical test prior to shipment. We strictly adhere to IPC-Class-2 standards, ensuring consistent quality and reliability. With worldwide availability, you can trust that our PCBs are accessible no matter where your project takes you.
For any technical questions or inquiries, please reach out to Ivy at sales10@bichengpcb.com. Our team is dedicated to providing exceptional support and expertise to ensure your project's success.
| Dielectric Constant,εProcess | 2.33 2.33±0.02 spec. |
Z | N/A | C24/23/50 C24/23/50 |
1 MHz IPC-TM-650 2.5.5.3 10 GHz IPC-TM 2.5.5.5 |
|
| Dielectric Constant,εDesign | 2.33 | Z | N/A | 8GHz to 40 GHz | Differential Phase Length Method | |
| Dissipation Factor,tanδ | 0.0005 0.0012 |
Z | N/A | C24/23/50 C24/23/50 |
1 MHz IPC-TM-650 2.5.5.3 10 GHz IPC-TM 2.5.5.5 |
|
| Thermal Coefficient of ε | -115 | Z | ppm/℃ | -50℃to 150℃ | IPC-TM-650 2.5.5.5 | |
| Volume Resistivity | 2 x 107 | Z | Mohm cm | C/96/35/90 | ASTM D 257 | |
| Surface Resistivity | 3 x 107 | Z | Mohm | C/96/35/90 | ASTM D 257 | |
| Specific Heat | 0.96(0.23) | N/A | j/g/k (cal/g/c) |
N/A | Calculated | |
| Tensile Modulus | Test at 23℃ | Test at 100℃ | N/A | MPa(kpsi) | A | ASTM D 638 |
| 1300(189) | 490(71) | X | ||||
| 1280(185) | 430(63) | Y | ||||
| Ultimate Stress | 50(7.3) | 34(4.8) | X | |||
| 42(6.1) | 34(4.8) | Y | ||||
| Ultimate Strain | 9.8 | 8.7 | X | % | ||
| 9.8 | 8.6 | Y | ||||
| Compressive Modulus | 1210(176) | 680(99) | X | MPa(kpsi) | A | ASTM D 695 |
| 1360(198) | 860(125) | Y | ||||
| 803(120) | 520(76) | Z | ||||
| Ultimate Stress | 30(4.4) | 23(3.4) | X | |||
| 37(5.3) | 25(3.7) | Y | ||||
| 54(7.8) | 37(5.3) | Z | ||||
| Ultimate Strain | 4 | 4.3 | X | % | ||
| 3.3 | 3.3 | Y | ||||
| 8.7 | 8.5 | Z | ||||
| Moisture Absorption | 0.02 | N/A | % | 0.62"(1.6mm) D48/50 | ASTM D 570 | |
| Thermal Conductivity | 0.22 | Z | W/m/k | 80℃ | ASTM C 518 | |
| Coefficient of Thermal Expansion | 22 28 173 |
X Y Z |
ppm/℃ | 0-100℃ | IPC-TM-650 2.4.41 | |
| Td | 500 | N/A | ℃ TGA | N/A | ASTM D 3850 | |
| Density | 2.2 | N/A | gm/cm3 | N/A | ASTM D 792 | |
| Copper Peel | 27.2(4.8) | N/A | Pli(N/mm) | 1oz(35mm)EDC foil after solder float |
IPC-TM-650 2.4.8 | |
| Flammability | V-0 | N/A | N/A | N/A | UL 94 | |
| Lead-free Process Compatible | Yes | N/A | N/A | N/A | N/A | |
Exploring the Power of RT/duroid 5870: Unleash the Potential of High-Frequency Applications
Introduction:
In the world of high-frequency applications, choosing the right PCB material is crucial to ensure optimal electrical performance and reliability. One material that stands out for its exceptional properties is RT/duroid 5870. In this article, we will delve deep into the features and benefits of RT/duroid 5870, exploring its electrical performance, mechanical properties, machining capabilities, durability in harsh environments, versatile applications, quality standards, global availability, and technical support. Join us on this journey as we unlock the true potential of RT/duroid 5870 and its impact on high-frequency designs.
Unraveling the Electrical Performance:
The key to superior electrical performance lies in the dielectric constant and dissipation factor. RT/duroid 5870 boasts a dielectric constant of 2.33, ensuring efficient signal transmission and minimal signal loss. With a low dissipation factor of 0.0012, it minimizes energy loss and enhances signal integrity, making it ideal for high-frequency applications.
Robust and Reliable:
RT/duroid 5870 exhibits remarkable thermal stability with a thermal coefficient of -115 ppm/℃, ensuring consistent performance across a wide temperature range. Its mechanical properties, including tensile modulus and ultimate stress, enable it to withstand demanding conditions. Whether at room temperature or elevated temperatures, RT/duroid 5870 delivers unwavering reliability.
Seamless Integration:
Machining and shaping PCBs are essential for custom designs. RT/duroid 5870 offers excellent machinability, allowing for easy cutting, sharing, and shaping. Its well-established material properties make it a versatile choice for various applications, providing designers with the freedom to bring their ideas to life.
Durability in Harsh Environments:
Operating in high-moisture environments or coming into contact with solvents and reagents can pose challenges for PCBs. However, RT/duroid 5870 excels in such conditions. It is resistant to solvents and reagents used in etching or plating edges and holes, ensuring long-term durability. Its moisture absorption rate of 0.02% and chemical resistance make it an ideal choice for demanding environments.
Versatility in Applications:
RT/duroid 5870 finds widespread applications in industries such as aerospace, telecommunications, and radar systems. It is well-suited for commercial airline broadband antennas, microstrip and stripline circuits, millimeter-wave applications, radar systems, guidance systems, and point-to-point digital radio antennas. The uniform electrical properties of RT/duroid 5870 over a wide frequency range make it a go-to solution for high-frequency designs.
Quality Assurance:
When it comes to PCB materials, quality is of utmost importance. RT/duroid 5870 meets IPC-Class-2 standards, ensuring consistent and reliable performance. Rigorous electrical testing guarantees that each PCB meets the highest standards of quality and performance. With RT/duroid 5870, you can trust that your high-frequency designs are in good hands.
Global Availability:
No matter where your project takes you, RT/duroid 5870 is readily available worldwide. Our extensive distribution network ensures that you can access this exceptional PCB material wherever you are. Say goodbye to geographical limitations and embrace the global availability of RT/duroid 5870 for your high-frequency applications.
Technical Support and Expertise:
We understand that designing high-frequency applications can be complex. That's why we offer dedicated technical support to assist you every step of the way. Our experienced team of experts is available to answer your questions, provide guidance, and offer solutions tailored to your specific needs. With our technical support and expertise, you can confidently bring your high-frequency designs to life.
Future Innovations:
The world of high-frequency applications is constantly evolving, and so is RT/duroid 5870. As technology advances, new possibilities and applications emerge. Stay ahead of the curve by exploring the future innovations and potential of RT/duroid 5870. Discover how this PCB material continues to push the boundaries of high-frequency design and unlock new realms of possibility.
Conclusion:
RT/duroid 5870 is a game-changing PCB material that opens up a world of possibilities for high-frequency applications. Its exceptional electrical performance, robust mechanical properties, seamless integration capabilities, durability in harsh environments, versatile applications, adherence to quality standards, global availability, and dedicated technical support make it the ideal choice for engineers and designers. With RT/duroid 5870, you can unleash the full potential of your high-frequency designs and bring your ideas to life.
