Product Details:
|
Highlight: | 2 Layer Rigid RF PCB Board,High Frequency 2 Layer Rigid PCB,Hydrocarbon Ceramic Laminates Rigid PCB |
---|

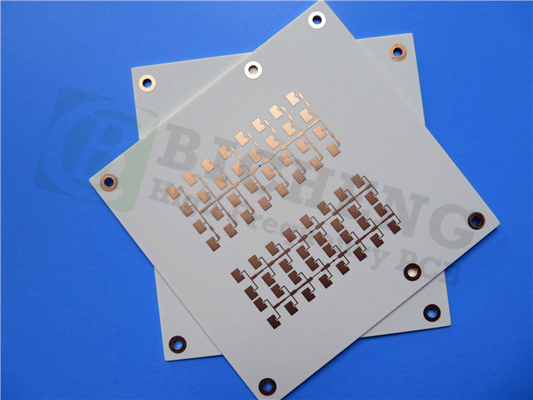

Today we are talking about our newly shipped PCB. The material used in the PCB is RO4003C hydrocarbon ceramic laminates. This material is known for its high-frequency performance and low dielectric loss. The use of this material in the PCB ensures optimal signal quality and reduces noise and crosstalk between components. Additionally, the lead-free process used in manufacturing makes it eco-friendly, and it can operate in a wide temperature range of -40℃ to +85℃.
The stackup configuration of the PCB is a 2-layer rigid board with a finished copper weight of 35um on both sides. The dielectric thickness is 60mil, and the stackup has been optimized for high-frequency performance. The use of RO4003C hydrocarbon ceramic laminates as the dielectric material ensures that the PCB has a low dielectric loss, making it suitable for high-frequency applications.
The construction details of the PCB have been carefully selected to ensure optimal performance and reliability. The board dimensions are 233mm x 229mm, with a tolerance of +/- 0.15mm. The minimum trace/space is 7/6 mils, and the minimum hole size is 0.3mm. There are no blind or buried vias. The finished board thickness is 1.6mm, and the finished Cu weight is 1 oz (1.4 mils) for all layers. The via plating thickness is 1 mil, and the surface finish is Hot Air Soldering Level (HASL). The top silkscreen is white, and the bottom silkscreen is not included. The top solder mask is green, and the bottom solder mask is not included. There is no silkscreen on solder pads, and 100% electrical testing has been performed.
PCB SIZE | 233 x 229mm=1PCS |
BOARD TYPE | RF PCB, Microwave PCB |
Number of Layers | Double sided PCB |
Surface Mount Components | YES |
Through Hole Components | YES |
LAYER STACKUP | copper ------- 35um(1oz)+PLATE |
RO4003C 60mil | |
copper ------- 35um(1oz)+PLATE |
Impedance matching is not required for this PCB, with a tolerance of +/- 10%. The PCB has a total of 95 components and 112 pads, with 37 thru-hole pads and 75 top SMT pads. There are no bottom SMT pads. There are 68 vias and 15 nets. The type of artwork supplied for this PCB is PCBDOC.
TEST | 100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA | Worldwide, Globally. |
In conclusion, the newly shipped PCB analyzed in this article offers a high-frequency solution for modern electronics. Its use of RO4003C hydrocarbon ceramic laminates ensures optimal signal quality and reduces noise and crosstalk between components. Its stackup configuration and construction details are carefully selected to ensure optimal performance and reliability. The PCB has undergone 100% electrical testing to ensure its quality and reliability. The PCB is ideal for high-frequency applications and can operate in a wide temperature range of -40℃ to +85℃. For technical questions, the supplier can be contacted at sales10@bichengpcb.com.
