Product Details:
|
| Size: | Customized | Impedance Control: | ±10% |
|---|---|---|---|
| Min. Hole Size: | 0.2mm | Silkscreen Color: | White/Black |
| Material: | FR4 | Solder Mask Color: | Green/ White/ Black/ Blue |
| High Light: | 4mil High Frequency PCB Board,0.2mm PCB Circuit Board,FR4 High Frequency PCB Circuit Board |
||

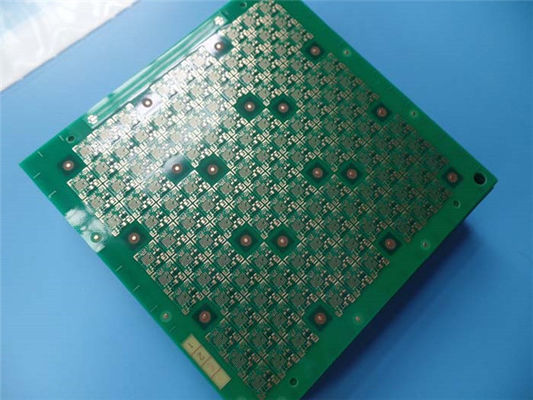

RF PCB Board is a high-frequency circuit board specially designed for special radio frequency circuitry applications. It is a custom-made printed circuit board (PCB) that can be used to create high-frequency circuitry connections. Its silkscreen color is available in white and black, and its minimum line spacing is 4 mil, which allows for increased signal accuracy. The solder mask color options include green, white, black and blue, and the board is designed with a minimum hole size of 0.2mm. The superior quality of RF PCB Board makes it a great option for creating highly accurate and reliable radio frequency circuitry.
| Parameter | Specification |
|---|---|
| Radio Frequency Printed Circuit Board | Yes |
| High Frequency PCB Board | Yes |
| Circuitry Printed Circuit Board | Yes |
| Solder Mask Color | Green/White/Black/Blue |
| Silkscreen Color | White/Black |
| Min. Line Spacing | 4 mil |
| Surface Finish | HASL/ENIG/OSP |
| Size | Customized |
| Min. Hole Size | 0.2mm |
| Min. Line Width | 4 mil |
| Material | FR4 |
| Layer |
1-32 |
Rogers 5880 Radio Frequency PCB Board is a High Frequency Printed Circuit Board with excellent performance. It is made in CHINA with high quality FR4 material, and is available in several solder mask colors, such as green, white, black, and blue. Its surface finish can be HASL, ENIG, or OSP. And the Max. Board Thickness it can reach is 4.2mm, while the Min. Line Width is 0.075mm.
This type of High Frequency Printed Circuit Board is widely used in electronics and communication applications, such as routers, TV receivers, base stations, etc. It is also the ideal choice for high speed digital circuits. And this Radio Frequency PCB Board with Rogers 5880 material is more and more popular in the market.
RF PCB Board Technical Support and Service:
RF PCB Board Packaging and Shipping:
The RF PCB board is packaged in an antistatic bag to assure the board is not exposed to any electrostatic discharge. The board is then placed in a bubble wrap bag and placed in a standard cardboard box. The box is then shipped to the customer via a courier or postal service.
