Rogers 4835 PCB 1.524mm Double Layer Rogers RF PCB Board High Frequency

Products

Metal Core PCB

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Contact Now

Rogers 4835 PCB 1.524mm Double Layer Rogers RF PCB Board High Frequency

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-200.V1.0

Base Material:

RO4835 1.524mm

Layer Count:

Two Layers

PCB Thickness:

1.6 Mm ±0.1

PCB Size:

12 X 26mm=1up

Copper Weight:

One Oz

Surface Finish:

Immersion Gold

Highlight:

Double Layer Rogers RF PCB Board

High Frequency Microwave PCB Board

1.524mm RF Circuit Board

Product Description

RO4835 High Frequency PCB Double Layer 60mil 1.524mm Rogers 4835 PCB With Immersion Gold

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

General Description

This is a type of Rogers high frequency PCB built on RO4835 laminates, double layers with signal layer on top side, shielding layer on bottom side. It is plated with immersion gold, no solder mask or silkscreen. It’s fabricated using 60mil substrates, 0.5oz copper starting. The boards are manufactured as per IPC Class II standard. All of the boards are 100% electrical tested before shipment.

PCB Specifications

PCB SIZE	12 x 26mm=1up
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 17um(0.5 oz)+plate TOP layer
	RO4835 1.524mm
	copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:	110 mil / 110 mil
Minimum / Maximum Holes:	1.0 mm / 1.0 mm
Number of Different Holes:	1
Number of Drill Holes:	10
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	RO4835 1.524mm
Final foil external:	1.0 oz
Final foil internal:	N/A
Final height of PCB:	1.6 mm ±0.1
PLATING AND COATING
Surface Finish	Immersion Gold, 86.2%
Solder Mask Apply To:	N/A
Solder Mask Color:	N/A
Solder Mask Type:	N/A
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	N/A
Colour of Component Legend	N/A
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 1.0mm.
FLAMIBILITY RATING	94V-0
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

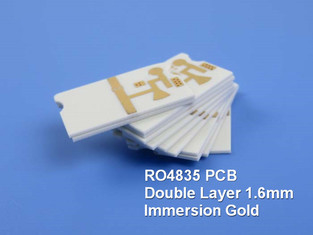

Rogers 4835 PCB 1.524mm Double Layer Rogers RF PCB Board High Frequency 0

About Us

We’re an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 18 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.

We also have divisions of FR-4 circuit board, flexible circuits and metal core PCBs featured as prototypes, small runs to mass production. We also actively research and build such high value added PCB projects as HDI, quick turn, impedance control, heavy copper and backplane board etc. This has made our PCB products generate an effective prolongation and complementation, as well as formation of integrated products line ranging from low-end to high-end.

Our Advantages

1. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;

2. PCB manufacturing is strictly as per required specifications;

3. Meeting your PCB needs from prototype to mass production;

4. Any Layer HDI PCBs;

5. 16000㎡ workshop; 8000 types of PCB's per month;

6. Quick CADCAM checking and free PCB quotation;

7. Eligible products rate of first production: >99% Customer complaint rate: <1%

8. More than 19+ years of high frequency PCB experience;

9. IPC Class 2 / IPC Class 3;

10. Prototype PCB capability and Volume Production capability;

Our PCB Capability (2022)

Parameter	Value
Layer Counts	1-32
Substrate Material	RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
Maximum Size	Flying test: 900600mm, Fixture test 460380mm, No test 1100*600mm
Board Outline Tolerance	±0.0059" (0.15mm)
PCB Thickness	0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)	±8%
Thickness Tolerance(t＜0.8mm)	±10%
Insulation Layer Thickness	0.00295" - 0.1969" (0.075mm--5.00mm)
Minimum Track	0.003" (0.075mm)
Minimum Space	0.003" (0.075mm)
Outer Copper Thickness	35µm--350µm (1oz-10oz)
Inner Copper Thickness	17µm--350µm (0.5oz - 10oz)
Drill Hole(Mechanical)	0.0079" - 0.25" (0.2mm--6.35mm)
Finished Hole(Mechanical)	0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical)	0.00295" (0.075mm)
Registration (Mechanical)	0.00197" (0.05mm)
Aspect Ratio	12:1
Solder Mask Type	LPI
Min Soldermask Bridge	0.00315" (0.08mm)
Min Soldermask Clearance	0.00197" (0.05mm)
Plug via Diameter	0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance	±10%
Surface Finish	HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc.

Rogers 4835 PCB 1.524mm Double Layer Rogers RF PCB Board High Frequency 1
