AD255C PCB ​Antenna Circuit Board Double Layer With Immersion Gold

AD255C PCB ​Antenna Circuit Board Double Layer With Immersion Gold
AD255C PCB ​Antenna Circuit Board Double Layer With Immersion Gold AD255C PCB ​Antenna Circuit Board Double Layer With Immersion Gold AD255C PCB ​Antenna Circuit Board Double Layer With Immersion Gold

Large Image :  AD255C PCB ​Antenna Circuit Board Double Layer With Immersion Gold

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-198.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: AD255C 1.524mm Layer Count: 2 Layers
PCB Thickness: 1.6 Mm ±0.1 PCB Size: 98 X 100mm=1up
Copper Weight: 1oz Surface Finish: Immersion Gold
High Light:

AD255C Antenna Circuit Board

,

PCB ​Antenna Circuit Board

,

Double Layer Printed Circuit Antenna



AD255C High Frequency PCB 60mil 1.524mm Antenna Circuit Board Double Layer with Immersion Gold

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

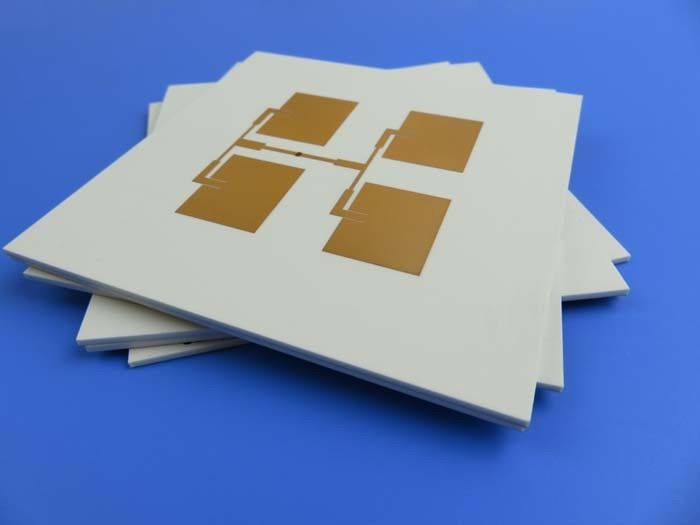

This is a type of antenna PCB that built on specialty antenna laminates AD255C. It’s a double layer board with antenna pads on top layer and shielding copper on bottom layer, making on 60mil substrate, 1oz copper plated on both sides. The whole boards are coating immersion gold, without solder mask or silkscreen. The boards are manufactured as per IPC Class II standard. All of the boards are 100% electrical tested before shipment.



PCB Specifications

PCB SIZE 98 x 100mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
AD255C 1.524mm
copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 118 mil / 118 mil
Minimum / Maximum Holes: 1.5 mm / 1.5 mm
Number of Different Holes: 1
Number of Drill Holes: 1
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: AD255C 1.524mm
Final foil external: 1.0 oz
Final foil internal: N/A
Final height of PCB: 1.6 mm ±0.1
PLATING AND COATING
Surface Finish Immersion Gold, 90.8%
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 1.5mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



AD255C PCB ​Antenna Circuit Board Double Layer With Immersion Gold 0



Our Advantages

1. More than 19+ years of high frequency PCB experience;

2. Eligible products rate of first production: >99%

3. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;

4. 16000㎡ workshop; 30000㎡ output capability per month;

5. Experienced sales persons provide skilled customer services;

6. No minimum order quantity and low cost sample;

7. Prototype PCB capability and Volume Production capability;

8. Customer complaint rate: <1%

9. IPC Class 2 / IPC Class 3;

10. Based in China serving the whole world.



Our PCB Capability (2022)

Parameter Value
 Layer Counts  1-32
 Substrate Material RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
 Maximum Size  Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
 Board Outline Tolerance  ±0.0059" (0.15mm)
 PCB Thickness 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)  ±8%
Thickness Tolerance(t<0.8mm)  ±10%
 Insulation Layer Thickness 0.00295" - 0.1969" (0.075mm--5.00mm)
 Minimum Track 0.003" (0.075mm)
 Minimum Space  0.003" (0.075mm)
 Outer Copper Thickness  35µm--350µm (1oz-10oz)
 Inner Copper Thickness  17µm--350µm (0.5oz - 10oz)
 Drill Hole(Mechanical) 0.0079" - 0.25" (0.2mm--6.35mm)
 Finished Hole(Mechanical) 0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical) 0.00295" (0.075mm)
 Registration (Mechanical) 0.00197" (0.05mm)
 Aspect Ratio  12:1
 Solder Mask Type  LPI
 Min Soldermask Bridge 0.00315" (0.08mm)
 Min Soldermask Clearance 0.00197" (0.05mm)
 Plug via Diameter 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance  ±10%
 Surface Finish HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc.



AD255C PCB ​Antenna Circuit Board Double Layer With Immersion Gold 1
