M6 Low Loss Multilayer Printed High Speed PCB Heat Resistant
Products

RF PCB Board

Rogers PCB Board

PTFE PCB Board

High TG PCB

Multi Layer PCB

Taconic PCB

HDI PCB Board

High Speed PCB

Impedance Controlled PCB

Flexible PCB Board

FR4 PCB Board

PCB Stencil

Metal Core PCB
Contact Us
Ms. Ivy Deng
sales10@bichengpcb.com
86-755-27374847
Contact Now
M6 Low Loss Multilayer Printed High Speed PCB Heat Resistant
  • name
  • name
  • name
  • name

M6 Low Loss Multilayer Printed High Speed PCB Heat Resistant

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-173.V1.0
Base Material:
Low DK Glass Cloth
Layer Count:
Multilayer PCB, Hybrid PCB
PCB Thickness:
0.4mm, 0.6mm, 0.8mm, 1.0mm, 1.6mm, 1.8mm, 2.0mm
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Silver, Immersion Tin, OSP Etc..
Highlight:

Multilayer Printed High Speed PCB

,

Heat Resistant Multilayer Printed PCB

,

Mobile Networking Multilayer Printed PCB

Product Description

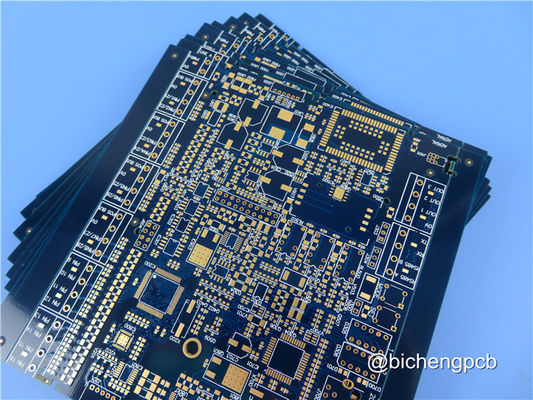

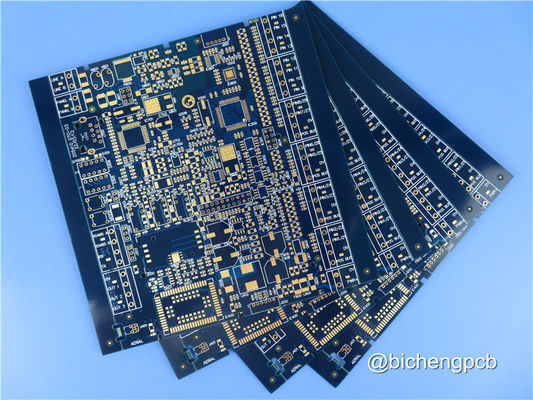

M6 High Speed Low Loss Multilayer Printed Circuit Board Megtron 6 PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Dear friends,

Today, I am going to talk about a type of high speed low loss multilayer PCB: M6 R-5775 PCB.



Megtron 6 is an ultra-low loss, highly heat resistant circuit board material designed for mobile, networking, and wireless applications etc. The main properties of Megtron 6 are low dielectric constant (DK) and dielectric dissipation factors (DF), low transmission loss and high heat resistance.



Part Numbers

Low Dielectric Constant (Dk) Glass Cloth - Laminate R-5775(N) / PrepregR-5670(N)

Standard E Glass Cloth - Laminate R-5775 / PrepregR-5670



They Features low Dk = 3.7 (@ 1GHz), low Df = 0.002 (@ 1GHz), excellent through-hole reliability (5x better than our conventional high Tg FR4 material), lead-free, ROHS-compliant soldering, high heat resistance. M6 also provides excellent high-density interconnect (HDI) and thermal performance.



Our PCB Capabilities (Megtron 6)

PCB Material: Low DK Glass Cloth
Designation: Laminate R-5775(G), Prepreg R-5670(G)
Dielectric constant: 3.61 at 10GHz
Dissipation Factor 0.004 at 10GHz
Layer count: Multilayer PCB, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 0.4mm, 0.6mm, 0.8mm, 1.0mm, 1.6mm, 1.8mm, 2.0mm
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP etc..



Main Applications

Antenna (Automotive millimeter wave radar, Base station)

ICT infrastructure equipment,

Measuring instrument,

Super computer,



Typical Value of R-5775

Property Units Test Method Condition Typical Value
THERMAL Glass Transition Temp ( Tg ) C DSC As received 185
  DMA As received 210
Thermal Decomposition Temp C TGA As received 410
Time to Delam (T288) Without Cu Min IPC TM-650 2.4.24.1 As received > 120
With Cu Min IPC TM-650 2.4.24.1 As received > 120
CTE : α1 X - axis ppm / C ppm / C IPC TM-650 2.4.24 < Tg 14 - 16
Y - axis ppm / C ppm / C IPC TM-650 2.4.24 < Tg 14 - 16
Z - axis ppm / C ppm / C IPC TM-650 2.4.24 < Tg 45
CTE : α2 Z - axis ppm / C ppm / C IPC TM-650 2.4.24 > Tg 260 260
ELECTRICAL Volume Resistivity MΩ - cm IPC TM-650 2.5.17.1 C-96/35/90 1 x 109
Surface Resistivity MΩ IPC TM-650 2.5.17.1 C-96/35/90 1 x 108
Dielectric Constant ( Dk ) @ 1GHz / IPC TM-650 2.5.5.9 C-24/23/50 3.71
@ 10GHz / IPC TM-650 2.5.5.5 C-24/23/50 3.61
Dissipation Factor ( Df ) @ 1GHz / IPC TM-650 2.5.5.9 C-24/23/50 0.002
@ 10GHz / IPC TM-650 2.5.5.5 C-24/23/50 0.004
PHYSICAL Water Absorption % IPC TM-650 2.6.2.1 D-24/23 0.14
Peel Strength 1oz ( H-VLP ) kN / m IPC TM-650 2.4.8 As Received 0.8 0.8
Flammability / UL C-48/23/50 94V-0



M6 Low Loss Multilayer Printed High Speed PCB Heat Resistant 0



Megtron 6 Material List in stock (as of September 2021)

Item Thickness (mil) Thickness(mm) Structure Copper weight(oz) Type of copper
R5775G 2.0 0.050 1035*1 H/H HVLP
R5775G 2.6 0.065 1080*1 H/H HVLP
R5775G 3.0 0.075 1078*1 1.0/1.0 RTF
R5775G 3.0 0.075 1078*1 H/H RTF
R5775G 3.0 0.075 1078*1 1.0/1.0 HVLP
R5775G 3.0 0.075 1078*1 H/H HVLP
R5775G 3.9 0.100 3313*1 H/H RTF
R5775G 3.9 0.100 3313*1 1.0/1.0 RTF
R5775G 5.9 0.150 1080*2 2.0/2.0 RTF
R5775G 9.8 0.250 2116*2 H/H RTF



M6 Low Loss Multilayer Printed High Speed PCB Heat Resistant 1



We can provide you with prototypes, small batches and mass production PCB’s. Any questions, please feel free to contact us.



Thanks for your reading.
