|Base Material:||PET||Layer Count:||2 Layers|
|PCB Thickness:||0.25mm||PCB Size:||32.35 X 68.17mm|
|Copper Weight:||1oz||Surface Finish:||Immersion Gold|
GPS Navigation Flexible PCB Board,
PI Substrate Flexible PCB Board,
PI Substrate Flex Printed Circuit Board

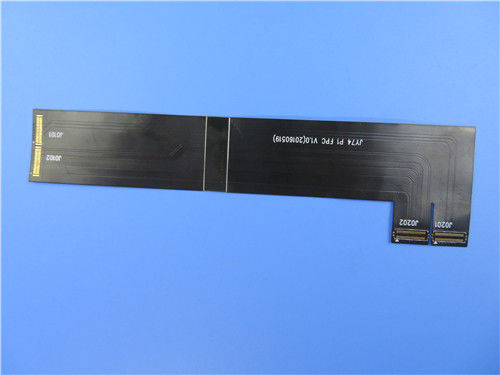

Dual Layer Flexible PCB Built on PI Substrate With Black Solder Mask and Immersion Gold for GPS Navigation
(FPC’s are custom-made products, the picture and parameters shown are just for reference)
This is a type of flexible printed circuit for the application of Voip System. It’s a 2 layer FPC at 0.25mm thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data.
Parameter and data sheet
|Size of Flexible PCB||32.35 X 68.17mm|
|Number of Layers||2|
|Board Type||Flexible PCB|
|Board Material||PET 25µm|
|Board Material Supplier||ITEQ|
|Tg Value of Board Material||60℃|
|PTH Cu thickness||≥20 µm|
|Inner Iayer Cu thicknes||N/A|
|Surface Cu thickness||35 µm|
|Number of Coverlay||2|
|Thickness of Coverlay||25 µm|
|Type of Silkscreen Ink||IJR-4000 MW300|
|Supplier of Silkscreen||TAIYO|
|Color of Silkscreen||White|
|Number of Silkscreen||2|
|Peeling test of Coverlay||No peelable|
|Legend Adhesion||3M 90℃ No peeling after Min. 3 times test|
|Surface Finish||Immersion Gold|
|Thickness of Nickle/Gold||Au: 0.03µm(Min.); Ni 2-4µm|
|Thermal Shock Test||Pass, -25℃±125℃, 1000 cycles.|
|Thermal Stress||Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.|
|Function||100% Pass electrical test|
|Workmanship||Compliance with IPC-A-600H & IPC-6013C Class 2|
Features and benefits
Reducing the volume
Consistency of assembly
The end can be whole soldered
Continuity of processing
No minimum order quantity and low cost sample.
Quick Lead time: 3-5 days
Display backlight, automobile GPS navigation flex board, industrial surveying and mapping instrument
Components of a flexible circuit
A flexible circuit consists of copper foil, dielectric substrate+ coverlay and adhesive.
Copper foil is available in two different types of copper: ED Copper and RA copper.
ED copper is an electro-deposited (ED) copper foil produced in the same way as the copper foil used for rigid printed circuit boards. This also means that the copper is “treated”, i.e., it has a slightly rough surface on one side, which ensures a better adhesion when the copper foil is bonded to the base material.
RA copper is a rolled and annealed copper foil produced from electrolytically deposited cathode copper, which is melted and cast into ingots. The ingots are first hot-rolled to a certain size and milled on all surfaces. The copper is then cold-rolled and annealed, until the desired thickness is obtained.
Copper foil is available in thickness of 12, 18, 35 and 70 μm.
The most common available for dielectric substrate and coverlay is polyimide films. This material can also be used as coverlay. Polyimide is best suited for flexible circuits because of its characteristics as stated below:
High temperature resistance allows soldering operations without damaging the flexible circuits
Very good electrical properties
Good chemical resistance
Polyimide is available in thicknesses of 12.5, 20, 25 and 50 μm.
Base laminates for rigid printed circuit boards are copper foils laminated together with the base materials, the adhesive coming from the prepreg material during lamination. Contrary to this is the flexible circuit where the lamination of the copper foil to the film material is achieved by means of an adhesive system. It is necessary to distinguish between two main systems of adhesive, namely thermoplastic and thermoset adhesives. The choice is dictated partly by the processing, and partly by the application of the finished flexible circuit.
