Large Flexible Circuits Fine Line FPC With Coil Design

Large Flexible Circuits Fine Line FPC With Coil Design
Large Flexible Circuits Fine Line FPC With Coil Design Large Flexible Circuits Fine Line FPC With Coil Design Large Flexible Circuits Fine Line FPC With Coil Design Large Flexible Circuits Fine Line FPC With Coil Design Large Flexible Circuits Fine Line FPC With Coil Design Large Flexible Circuits Fine Line FPC With Coil Design Large Flexible Circuits Fine Line FPC With Coil Design Large Flexible Circuits Fine Line FPC With Coil Design

Large Image :  Large Flexible Circuits Fine Line FPC With Coil Design

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-263.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Polyimide Layer Count: 2 Layer
PCB Thickness: 0.15mm PCB Size: 160 X 165mm=1PCS
Coverlay: Yellow Silkscreen: NO
Copper Weight: 1oz Surface Finish: Immersion Gold
High Light:

Single Layer FPC Circuit Board

,

0.2mm FPC Circuit Board

,

0.2mm Single Layer PCB



Large Flexible Circuits Fine Line FPC With Coil Design

(FPC’s are custom-made products, the picture and parameters shown are just for reference)



General description

This type of flexible PCB is build on polyimide with fine line coils for the application of GPS tracking systems. It’s a 2 layer board at 0.15mm thick. The base laminate is from Shengyi. It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Polyimide stiffener is applied on the inserting part.



Parameter and data sheet

Number of Layers 2
Board Size 160 x 165mm=1PCS
Board Type Flexbile cirucit
Board Thickness 0.15mm +/-10%
Board Material Polyimide (PI) 25um
Board Material Supplier ITEQ
Tg Value of Board Material 60

PTH Cu thickness 20 um
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 um (1oz)

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 um
Stiffener NO

Type of Silkscreen Ink NO
Supplier of Silkscreen NO
Color of Silkscreen NO
Number of Silkscreen NO

Mininum Trace (mil) 4 mil
Minimum Gap(mil) 4 mil

Surface Finish Immersion Gold
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25±125, 1000 cycles.
Thermal Stress Pass, 300±5,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2

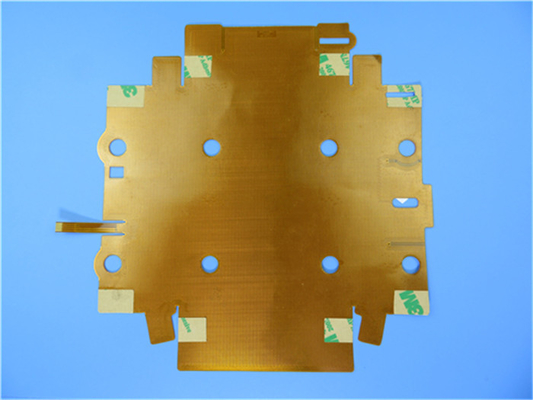

Large Flexible Circuits Fine Line FPC With Coil Design 0



Features and benefits

Excellent flexibility

Reducing the volume

Weight reduction

Consistency of assembly

Increased reliability

The end can be whole soldered

Low cost

Continuity of processing

Quick and on-time delivery

Make delivery on time. We keep higher than 98% on-time-delivery rate.



Applications

Keypad FPC, Industrial control computer soft board, consumer ETC (Electronic Toll Collection ) soft board,



Basic Types of Flexible Circuit

There are five basic types of flexible circuits as described below:



1. Single-Sided Flexible Circuits

This is the simplest type, and consists of a thin and flexible base material to which a copper foil is laminated by means of an adhesive. The finished circuit is frequently provided with a covercoat bonded to the copper side by means of an adhesive.



2. Double-Sided Flexible Circuits

As the name suggests, the circuit consists of a thin and flexible base material with copper foil laminated to each side. The outer sides of the finished circuits are frequently provided with covercoats bonded to the outer sides (copper).



3. Multilayer Flexible Circuits

A multilayer flexible circuit consists of a number of thin and flexible base laminates and copper foils laminated together by means of adhesive, in very much the same way as rigid multilayer boards. Also it is common practice to bond covercoats to the outer sides (copper).



4. Flex-Rigid Circuits

A flex-rigid circuit is a combination of rigid boards and flexible circuits, the latter creating flexible interconnects between the rigid boards to which they are laminated by means of bond plies.



5. Flexible Circuits with Rigid Areas

In some cases, the flexible circuit must support a number of relatively heavy components or even a connector part. Therefore it is necessary to reinforce such an area. This is accomplished by bonding a stiffener to that area. The stiffener can be an extra layer of not too thin polyimide, or it can be a glass/epoxy laminate.



More Displays of Large Flexible Circuits

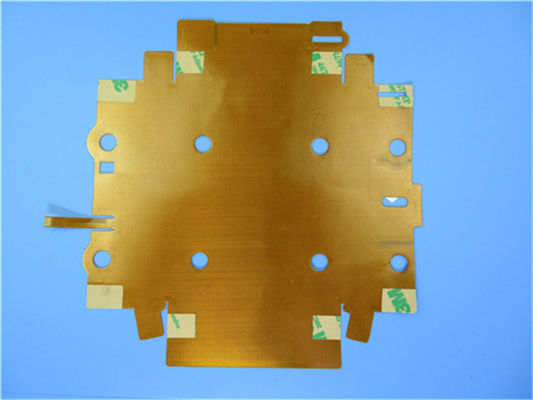

Large Flexible Circuits Fine Line FPC With Coil Design 1



Large Flexible Circuits Fine Line FPC With Coil Design 2
