Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold

Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold
Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold

Large Image :  Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-251.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Polyimide Layer Count: Single Sided
PCB Thickness: 0.1mm PCB Size: 45 X 33mm=1PCS
Coverlay: Yellow Silkscreen: White
Copper Weight: 1oz Surface Finish: ENIG
High Light:

FPC Flexible PCB Board

,

0.1mm Single Sided Flexible PCB Board

,

Polyimide Base Flexible PCB Board

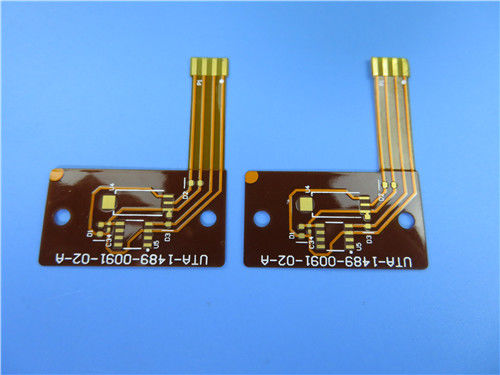

Single Sided Flexible Printed Circuit (FPC) Built On Polyimide With Immersion Gold

(FPC’s are custom-made products, the picture and parameters shown are just for reference)



General description

This is a type of flexible printed circuit for the application of Bluetooth Headset. It’s a single sided layer FPC at 0.15mm thick. The base laminate is from Shengyi. It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Polyimide stiffener is applied on the inserting part.



Parameter and data sheet

PCB SIZE 45 x 33mm=1PCS
BOARD TYPE
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components no
LAYER STACKUP copper ------- 35um(1oz)
Polyimide 0.1mm
TECHNOLOGY
Minimum Trace and Space: 12mil/12mil
Minimum / Maximum Holes: 2.5mm
Number of Different Holes: 1
Number of Drill Holes: 2
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control NO
BOARD MATERIAL
Glass Epoxy: Polyimide 0.1mm, FPC
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 0.1mm ±0.05
PLATING AND COATING
Surface Finish Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To: TOP
Solder Mask Color: Yellow, Coverlay
Solder Mask Type: LPSM
CONTOUR/CUTTING Laser cut
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300, Taiyo Supplied.
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA None Plated Through Hole(NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold 0



Features and benefits

1. Excellent flexibility

2. Reducing the volume

3. Weight reduction

4. Consistency of assembly

5. Increased reliability

6. Controllability of electrical parameter design

7. The end can be whole soldered

8. Material optionality

9. Low cost

10. Continuity of processing

11. No minimum order quantity and low cost sample.

12. More than 18 years of experience



Applications

Thin-film switch, Mobile phone battery flex board, medical keypad soft board



Manufacturing Process

A flow diagram of single-sided flexible PCB is shown as below.

Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold 1



Brief Introduction of FPC

Flexible Printed Circuit Board (FPC) is referred to as "soft board". In the industry, FPC is a printed circuit board made of flexible insulating substrate (mainly polyimide or polyester film), which has many advantages that rigid printed circuit boards do not have. For example, it can be freely bent, wound, folded. The volume of electronic products can be greatly reduced by using FPC, which is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability. Therefore, FPC has been widely used in aerospace, military, mobile communication, laptop, computer peripherals, PDA, digital camera and other fields or products.



FPC also has the advantages of good heat dissipation, solderability, easy mounting and low cost.



Flexible printed circuit board has one layer, two layers and multilayer board. The base material is polyimide clad laminate. This kind of material has high heat resistance and good dimensional stability. It is the final product through pressing with the coating film which has both mechanical protection and good electrical insulation. The surface and inner conductors of double-sided and multi-layer printed circuit boards are metallized to realize the electrical connection of inner and outer layers.



The function of flexible circuit board can be divided into four kinds, namely, lead line, printed circuit, connector and multifunction integrated system, which cover computer, computer peripheral auxiliary system, consumer household electrical appliance and automobile, etc.

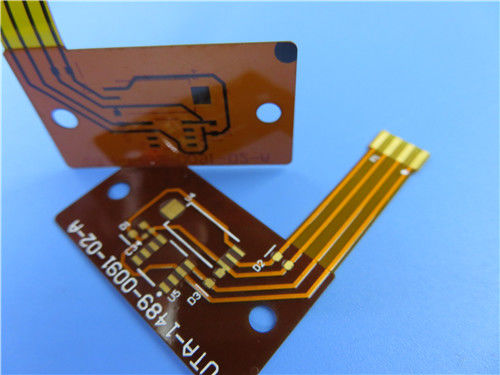

More Displays of Single Sided FPC



Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold 2



Polyimide Base Single Sided FPC Flexible PCB Board With Immersion Gold 3
