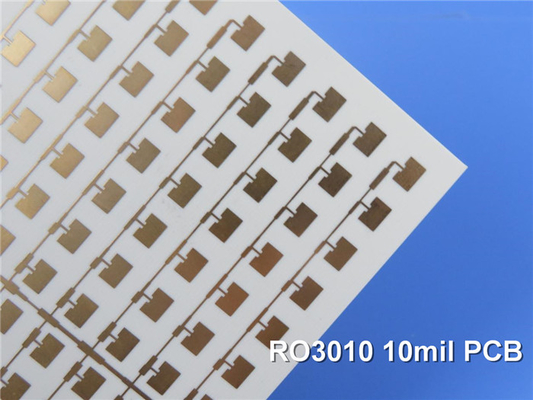

RO3010 Rogers Microwave PCB Board 10mil 0.254mm DK10.2 For Direct Broadcast Satellites

RO3010 Rogers Microwave PCB Board 10mil 0.254mm DK10.2 For Direct Broadcast Satellites
RO3010 Rogers Microwave PCB Board 10mil 0.254mm DK10.2 For Direct Broadcast Satellites RO3010 Rogers Microwave PCB Board 10mil 0.254mm DK10.2 For Direct Broadcast Satellites RO3010 Rogers Microwave PCB Board 10mil 0.254mm DK10.2 For Direct Broadcast Satellites RO3010 Rogers Microwave PCB Board 10mil 0.254mm DK10.2 For Direct Broadcast Satellites

Large Image :  RO3010 Rogers Microwave PCB Board 10mil 0.254mm DK10.2 For Direct Broadcast Satellites

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-048.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RO3010 Layer Count: 2 Layers
PCB Thickness: 0.3mm PCB Size: 91 X 85mm=1PCS
Solder Mask: Green Silkscreen: White
Copper Weight: 0.5oz Surface Finish: Immersion Gold
High Light:

Rogers Microwave PCB Board

,

RO3010 Microwave PCB Board

,

0.254mm Microwave PCB Board



Rogers Microwave PCB Made On RO3010 10mil 0.254mm DK10.2 With Immersion Gold for Direct Broadcast Satellites

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Rogers 3010 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices. The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3010 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.



Typical applications:

1) Automotive radar

2) Cellular telecommunications systems

3) Global positioning satellite antennas

4) Patch antenna for wireless communications

5) Remote meter readers



PCB Specifications

PCB SIZE 91 x 85mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 18um(0.5 oz)+plate TOP layer
RO3010 0.254mm
copper ------- 18um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 8 mil
Minimum / Maximum Holes: 0.4mm / 0.8mm
Number of Different Holes: n/a
Number of Drill Holes: n/a
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO3010 0.254mm
Final foil external: 1 oz
Final foil internal: N/A
Final height of PCB: 0.3 mm ±0.1mm
PLATING AND COATING
Surface Finish Immersion Gold
Solder Mask Apply To: Bottom, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Bottom
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA N/A
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



RO3010 Rogers Microwave PCB Board 10mil 0.254mm DK10.2 For Direct Broadcast Satellites 0



Data Sheet of Rogers 3010 (RO3010)

RO3010 Typical Value
Property RO3010 Direction Units Condition Test Method
Dielectric Constant,εProcess 10.2±0.05 Z   10 GHz/23 IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 11.2 Z   8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0022 Z   10 GHz/23 IPC-TM-650 2.5.5.5
Thermal Coefficient of ε -395 Z ppm/ 10 GHz -50to 150 IPC-TM-650 2.5.5.5
Dimensional Stability 0.35
0.31
X
Y
mm/m COND A IPC-TM-650 2.2.4
Volume Resistivity 105   MΩ.cm COND A IPC 2.5.17.1
Surface Resistivity 105   COND A IPC 2.5.17.1
Tensile Modulus 1902
1934
X
Y
MPa 23 ASTM D 638
Moisture Absorption 0.05   % D48/50 IPC-TM-650 2.6.2.1
Specific Heat 0.8   j/g/k   Calculated
Thermal Conductivity 0.95   W/M/K 50 ASTM D 5470
Coefficient of Thermal Expansion
(-55 to 288
)
13
11
16
X
Y
Z
ppm/ 23/50% RH IPC-TM-650 2.4.4.1
Td 500   TGA   ASTM D 3850
Density 2.8   gm/cm3 23 ASTM D 792
Copper Peel Stength 9.4   Ib/in. 1oz,EDC After Solder Float IPC-TM 2.4.8
Flammability V-0       UL 94
Lead-free Process Compatible Yes



RO3010 Rogers Microwave PCB Board 10mil 0.254mm DK10.2 For Direct Broadcast Satellites 1
