TLX-7 2 layers 1 oz copper HASL Finish PCB Dimensionally Stable
  • name
  • name

TLX-7 2 layers 1 oz copper HASL Finish PCB Dimensionally Stable

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-031.V1.0
Base Material:
TLX-7
Layer Count:
2 Layers
PCB Thickness:
1.6mm
PCB Size:
92 X 92mm=1PCS
Solder Mask:
Green
Silkscreen:
White
Copper Weight:
1oz
Surface Finish:
HASL
Highlight:

2 Layers HASL Finish PCB

,

1 Oz Copper HASL Finish PCB

,

1 Oz Copper Double Layer PCB

Product Description



 TLX-7 62mil 1.575mm With Immersion Silver for Power Splitter

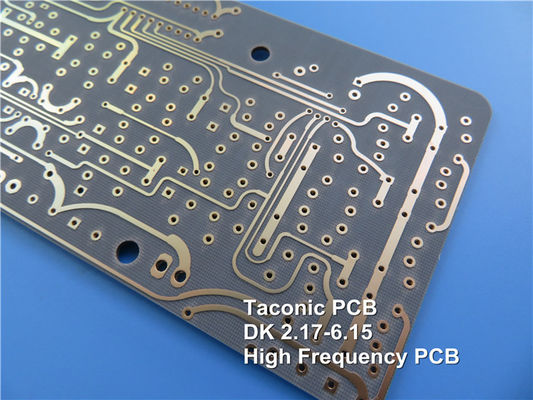

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



TLX offers reliability in a wide range of RF applications. This material is versatile due to its 2.45 - 2.65 DK range and available thicknesses and copper cladding. It is suitable for low layer count microwave designs.



TLX is PTFE based fiberglass laminate, it is ideal for use in radar systems, mobile communications, microwave test equipment, microwave transmission devices and RF components.



DK TLX-7

Type DK
TLY-5A 2.17
TLY-5 2.20
TLY-3 2.33
TLT-0 TLX-0 2.45
TLT-9 TLX-9 2.50
TLT-8 TLX-8 2.55
TLT-7 TLX-7 2.60
TLT-6 TLX-6 2.65
TLE-95 2.95
TLC-27 2.75
TLC-30 RF-30 3.00
TLC-32 3.20
TLF-35 3.50
TLF-35-xxxx-A 3.50
RF-35 RF-35A2 3.50
TRF-41 4.10
TRF-43 4.30
TRF-45 4.50
RF-60A 6.15
CER-10 10




TLX is a workhorse in the RF microwave substrate world where the fiberglass offers mechanical reinforcement wherever a substrate experiences severe environments such as: resistance to creep for PCBs bolted to a housing that encounter high levels of vibration during space launch, high temperature exposure in engine modules, radiation resistance in space, antenna for warships that undergo extreme environments at sea and a substrate for altimeters that see a wide range of temperatures during flight.



There're TLX-0 (dk2.45), TLX-9 (dk2.50), TLX-8 (dk2.55), TLX-7 (dk2.60) and TLX-6 (dk2.65) in the TLX family. Dielectric thickness of TLX-0 ranges from 0.127mm to 6.35mm (5mil-250mil), TLX-9 ranges from 0.05mm to 6.35mm (2mil - 250mil), TLX-8 ranges from 0.064mm to 6.35mm (2.5mil to 250mil), TLX-7 ranges from 0.089mm to 6.35mm (3.5mil - 250mil), TLX-6 ranges from 0.089mm to 6.35mm (3.5mil to 250mil).



Benefits:

1. Excellent mechanical & thermal properties

2. Low & stable DK

3. Dimensionally stable

4. Low moisture absorption

5. UL 94 V-O rating

6. Tightly controlled DK

7. Low DF

8. For low layer count microwave designs



The applications are Antennas, Couplers, Splitters, Combiners,, Amplifiers, Mixers, Filters, passive components



PCB Specifications

PCB SIZE 92 x 92mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1 oz)+plate TOP layer
TLX-7 1.575mm
copper ------- 35um(1oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 10 mil / 10 mil
Minimum / Maximum Holes: 0.3mm
Number of Different Holes: 1
Number of Drill Holes: 1
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: TLX-7 1.575mm
Final foil external: 1.5 oz
Final foil internal: N/A
Final height of PCB: 1.6 mm ±10%
PLATING AND COATING
Surface Finish Immersion Silver
Solder Mask Apply To: Top
Solder Mask Color: Green
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top
Colour of Component Legend White
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through holes(PTH), 0.3mm
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
