62mil TLX-0 Immersion Silver PCB HASL Lead Free Surface
  • name
  • name

62mil TLX-0 Immersion Silver PCB HASL Lead Free Surface

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-028.V1.0
Base Material:
TLX-0
Layer Count:
2 Layers
PCB Thickness:
1.6mm
PCB Size:
135 X 66mm=1PCS
Solder Mask:
Green
Silkscreen:
White
Copper Weight:
1oz
Surface Finish:
HASL Lead Free
Highlight:

62mil Immersion Silver PCB

,

1.575mm Immersion Silver PCB

,

62mil HASL Lead Free PCB

Product Description

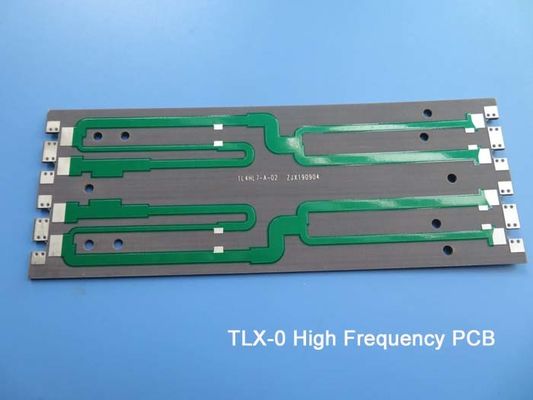

Taconic High Frequency PCB Built On TLX-0 62mil 1.575mm With Immersion Silver for RF Antenna

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



TLX offers reliability in a wide range of RF applications. This material is versatile due to its 2.45 - 2.65 DK range and available thicknesses and copper cladding. It is suitable for low layer count microwave designs.



TLX is PTFE based fiberglass laminate, it is ideal for use in radar systems, mobile communications, microwave test equipment, microwave transmission devices and RF components.



PCB Specifications

PCB SIZE 135 x 66mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1 oz)+plate TOP layer
TLX-0 1.575mm
copper ------- 35um(1oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 7 mil / 7 mil
Minimum / Maximum Holes: 0.4mm/2.0mm
Number of Different Holes: N/A
Number of Drill Holes: N/A
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: TLX-0 1.575mm
Final foil external: 1.5 oz
Final foil internal: N/A
Final height of PCB: 1.6 mm ±10%
PLATING AND COATING
Surface Finish HASL Lead Free
Solder Mask Apply To: Bottom, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Bottom
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA N/A
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.




TLX is a workhorse in the RF microwave substrate world where the fiberglass offers mechanical reinforcement wherever a substrate experiences severe environments such as: resistance to creep for PCBs bolted to a housing that encounter high levels of vibration during space launch, high temperature exposure in engine modules, radiation resistance in space, antenna for warships that undergo extreme environments at sea and a substrate for altimeters that see a wide range of temperatures during flight.



There're TLX-0 (dk2.45), TLX-9 (dk2.50), TLX-8 (dk2.55), TLX-7 (dk2.60) and TLX-6 (dk2.65) in the TLX family. Dielectric thickness of TLX-0 ranges from 0.127mm to 6.35mm (5mil-250mil), TLX-9 ranges from 0.05mm to 6.35mm (2mil - 250mil), TLX-8 ranges from 0.064mm to 6.35mm (2.5mil to 250mil), TLX-7 ranges from 0.089mm to 6.35mm (3.5mil - 250mil), TLX-6 ranges from 0.089mm to 6.35mm (3.5mil to 250mil).



Benefits:

(1) Low moisture absorption

(2) UL 94 V-O rating

(3) For low layer count microwave designs



Applications:

(1) Antennas

(2) Couplers, Splitters, Combiners,

(3) Amplifiers, Mixers, Filters

(4) Passive components



DK TLX-0

Type DK
TLY-5A 2.17
TLY-5 2.20
TLY-3 2.33
TLT-0 TLX-0 2.45
TLT-9 TLX-9 2.50
TLT-8 TLX-8 2.55
TLT-7 TLX-7 2.60
TLT-6 TLX-6 2.65
TLE-95 2.95
TLC-27 2.75
TLC-30 RF-30 3.00
TLC-32 3.20
TLF-35 3.50
TLF-35-xxxx-A 3.50
RF-35 RF-35A2 3.50
TRF-41 4.10
TRF-43 4.30
TRF-45 4.50
RF-60A 6.15
CER-10 10



62mil TLX-0 Immersion Silver PCB HASL Lead Free Surface 0
