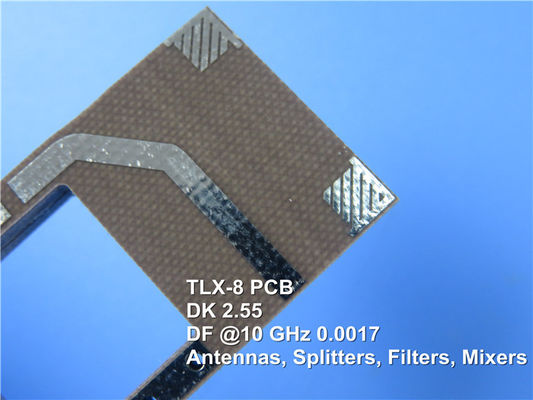

Taconic TLX RF PCB Board
  • name
  • name
  • name

Taconic TLX RF PCB Board

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-089.V1.0
Base Material:
PTFE Fiberglass
Layer Count:
1 Layer, 2 Layer, 4 Layer.
PCB Thickness:
0.5mm, 0.8mm, 1.0mm, 1.5mm, 3.2mm
PCB Size:
≤400mm X 500mm
Copper Weight:
0.5oz, 1oz, 2oz
Surface Finsh:
Bare Copper, HASL, ENIG, Immersion Tin Etc.
Highlight:

Taconic TLX RF PCB Board

,

HASL RF PCB Board

Product Description

Hello Everyone,

Today, we're going to talk about TLX high frequency PCB.



TLX is a series of PTFE fiberglass laminates launched by Taconic Company. It offers reliability in a wide range of RF applications. This material is versatile due to its 2.45 - 2.65 DK range. It is suitable for low layer count microwave PCBs.



Let's firstly see the advantages that we benefit from.

1. Dimensionally stable:

It can experience high level of vibration, such as space launch.



2. Excellent thermal properties:

It can experience high temperature exposure, such as working in engine modules.



3. Low and stable dielectric constant and tightly controlled DK.

Ranging 2.45 to 2.65 at tolerance +/-0.04



4. Low moisture absorption

Undergoing extreme severe environments, such as working at sea



5. Flame retardant grade, UL 94 V0



6. Low DF



Taconic TLX RF PCB Board 0



TLX is ideal material for use in the application of following list due to its wide DK range and available thickness and copper cladding.



The typical applications are radar systems, antennas, mobile communications, mcrowave test equipment, microwave transmission devices, mixers, splitters, filters and combiners etc.



Taconic TLX RF PCB Board 1



There’re TLX-0, TLX-9, TLX-8, TLX-7 and TLX-6 in TLX family. Often it’s used in single layer board, double layer board etc. Surface finish is mainly with bare copper, hot air level and immersion gold.



PCB Capability
PCB Material: PTFE Fiberglass
TLX Family (Dielectric constant ±0.04) TLX-0 (DK=2.45)
TLX-9 (DK=2.50)
TLX-8 (DK=2.55)
TLX-7 (DK=2.60)
TLX-6 (DK=2.65)
Layer count: 1 Layer, 2 Layer, 4 Layer.
Copper weight: 0.5oz, 1oz, 2oz
PCB thickness: 0.5mm, 0.8mm, 1.0mm,
1.5mm, 3.2mm
PCB Size: ≤400mm X 500mm
Surface finish: Bare copper, HASL, ENIG, Immersion tin etc.
　 　



Taconic TLX RF PCB Board 2



The basic colour of TLX high frequency PCB is brown and black.



We specialize in providing you with prototype, small batches and mass production service.

If you have any requirements on this kind of PCB, please feel free to contact us.

Thank you for your reading.



Appendix: Data Sheet of TLX-8

TLX-8 TYPICAL VALUES
Property Test Method Unit Value Unit Value
DK @10 GHz IPC-650 2.5.5.3   2.55   2.55
Df @1.9 GHz IPC-650 2.5.5.5.1   0.0012   0.0012
Df @10 GHz IPC-650 2.5.5.5.1   0.0017   0.0017
Dielectric Breakdown IPC-650 2.5.6 kV >45 kV >45
Moisture Absorption IPC-650 2.6.2.1 % 0.02 % 0.02
Flexural Strength(MD) ASTM D 709 psi 28,900 N/mm2
Flexural Strength(CD) ASTM D 709 psi 20,600 N/mm2
Tensile Strength(MD) ASTM D 902 psi 35,600 N/mm2
Tensile Strength(CD) ASTM D 902 psi 27,500 N/mm2
Elongation at Break(MD) ASTM D 902 % 3.94 % 3.94
Elongation at Break(CD) ASTM D 902 % 3.92 % 3.92
Young's Modulus(MD) ASTM D 902 kpsi 980 N/mm2
Young's Modulus(CD) ASTM D 902 kpsi 1,200 N/mm2
Young's Modulus(MD) ASTM D 3039 kpsi 1,630 N/mm2
Poisson's Ratio ASTM D 3039   0.135 N/mm
Peel Stength(1 oz.ed) IPC-650 2.4.8 Sec.5.2.2(Thermal Stress.) Ibs./linear inch 15 N/mm
Peel Stength(1 oz.RTF) IPC-650 2.4.8 Sec.5.2.2(Thermal Stress.) Ibs./linear inch 17 N/mm
Peel Stength(½ oz.ed) IPC-650 2.4.8.3(Elevated Temp.) Ibs./linear inch 14 N/mm
Peel Stength(½ oz.ed) IPC-650 2.4.8 Sec.5.2.2(Thermal Stress.) Ibs./linear inch 11 N/mm
Peel Stength(1 oz.rolled) IPC-650 2.4.8 Sec.5.2.2(Thermal Stress.) Ibs./linear inch 13 N/mm 2.1
Thermal Conductivity ASTM F433/ASTM 1530-06 W/M*K 0.19 W/M*K 0.19
Dimensional Stability(MD) IPC-650 2.4.39 Sec.5.5(After Bake.) mils/in. 0.06 mm/M
Dimensional Stability(CD) IPC-650 2.4.39 Sec.5.4(After Bake.) mils/in. 0.08 mm/M
Dimensional Stability(MD) IPC-650 2.4.39 Sec.5.5(Thermal Stress.) mils/in. 0.09 mm/M
Dimensional Stability(CD) IPC-650 2.4.39 Sec.5.5(Thermal Stress.) mils/in. 0.1 mm/M
Surface Resistivity IPC-650 2.5.17.1 Sec.5.2.1(Elevated Temp.) Mohm 6.605 x 108 Mohm 6.605 x 108
Surface Resistivity IPC-650 2.5.17.1 Sec.5.2.1(Humidity Cond.) Mohm 3.550 x 106 Mohm 3.550 x 106
Volume Resistivity IPC-650 2.5.17.1 Sec.5.2.1(Elevated Temp.) Mohm/cm 1.110 x 1010 Mohm/cm 1.110 x 1010
Volume Resistivity IPC-650 2.5.17.1 Sec.5.2.1(Humidity Cond.) Mohm/cm 1.046 x 1010 Mohm/cm 1.046 x 1010
CTE(X axis)(25-260℃) IPC-650 2.4.41/ASTM D 3386 ppm/℃ 21 ppm/℃ 21
CTE(Y axis)(25-260℃) IPC-650 2.4.41/ASTM D 3386 ppm/℃ 23 ppm/℃ 23
CTE(Z axis)(25-260℃) IPC-650 2.4.41/ASTM D 3386 ppm/℃ 215 ppm/℃ 215
Density(Specific Gravity) ASTM D 792 g/cm3 2.25 g/cm3 2.25
Td(2% Weight Loss) IPC-650 2.4.24.6(TGA) ℃ 535 ℃
Td(5% Weight Loss) IPC-650 2.4.24.6(TGA) ℃ 553 ℃
Flammability Rating UL-94   V-0   V-0



Taconic TLX RF PCB Board 3
