TLX-6 Substrate High Frequency Laminates Copper Clad Sheet
  • name

TLX-6 Substrate High Frequency Laminates Copper Clad Sheet

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-332.V1.0
Part Number:
TLX-6
Laminate Thickness:
0.089 - 6.35mm
Laminate Size:
12 X 18inch 304 X 457mm; 16 X 18inch 406 X 457mm; 18 X 24inch 457 X 610mm; 16 X 36inch; 406 X 914mm; 24 X 36inch 610 X 914mm; 18 X 48inch 457 X 1220mm; 36 X 48inch 914 X 1220mm
Copper Weight:
0.5oz(0.018mm); 1oz(0.035mm)
Highlight:

TLX-6 high frequency laminates

,

copper clad laminate sheets

,

high frequency copper clad substrate

Product Description

TLX-6 is a PTFE fiberglass laminate with a dielectric constant (Dk) of 2.65, available in various thicknesses and copper cladding options. Engineered for low-layer-count microwave designs, it provides a reliable foundation for RF circuits in radar, mobile communications, test equipment, and transmission devices.



As a proven workhorse in the microwave industry, TLX-6's woven glass construction delivers critical mechanical reinforcement for reliable performance in extreme environments—from high-vibration space launches and high-temperature engine modules to radiation-prone space applications, corrosive naval settings, and altimeters facing wide temperature swings.



Its versatile dielectric properties enable the efficient manufacture of key components like couplers, splitters, combiners, and antennas.

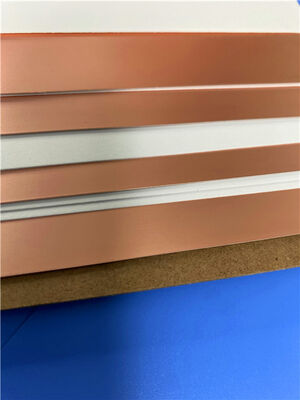

TLX-6 Substrate High Frequency Laminates Copper Clad Sheet 0



Key Benefits:

  • Exceptional PIM Performance (typically below -160 dBc)
  • Excellent Mechanical & Thermal Properties
  • Low, Stable, and Tightly Controlled Dk
  • Dimensionally Stable with Low Moisture Absorption
  • Low Dissipation Factor (Df)
  • UL 94 V-0 Rated
  • Optimized for Low-Layer-Count Designs



Typical Applications

  • Antennas
  • Mixers, Splitters, Filters & Combiners
  • Passive RF Components



Designation Dk

Dielectric Thickness

Inches mm
TLX-0 2.45 ± 0.04 0.0050 - 0.250 0.127 - 6.35
TLX-9 2.50 ± 0.04 0.0020 - 0.250 0.05 - 6.35
TLX-8 2.55 ± 0.04 0.0025 - 0.250 0.064 - 6.35
TLX-7 2.60 ± 0.04 0.0035 - 0.250 0.089 - 6.35
TLX-6 2.65 ± 0.04 0.0035 - 0.250 0.089 - 6.35



Available Sheet Sizes

Inches / mm
12 x 18 304 x 457
16 x 18 406 x 457
18 x 24 457 x 610
16 x 36 406 x 914
24 x 36 610 x 914
18 x 48 457 x 1220
36 x 48 914 x 1220
Tags:

0.1mm Copper Clad Laminate,

BME217 Copper Clad Laminate,

12mm Copper Clad Laminate
