DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications

DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-052.V1.0
Base Material:
DiClad 870
Layer Count:
2-layer
PCB Thickness:
2.5mm
PCB Size:
83mm X 35mm (1 Piece), +/- 0.15mm
Copper Weight:
1oz (equivalent To 1.4 Mils Or 35μm)
Surface Finish:
Immersion Gold
Highlight:

2-Layer RF PCB Board

,

35μm Copper Layers PCB

,

2.5mm Thickness Printed Circuit Board

Product Description
DiClad 870 PCB 2-Layer: 35μm Copper Layers 2.5mm Thickness
This 2-layer rigid PCB, built with Rogers DiClad 870 as its base material, is engineered to excel in high-frequency and low-loss electronic systems. With board dimensions of 83mm x 35mm (1 piece) and a tight tolerance of +/- 0.15mm, it provides a reliable and compact foundation for applications demanding consistent performance in diverse operating conditions.
PCB Details
Construction Detail Specification
Base material DiClad 870
Layer count 2-layer
Board dimensions 83mm x 35mm (1 piece), +/- 0.15mm
Minimum Trace/Space 5/9 mils
Minimum Hole Size 0.3mm
Finished board thickness 2.5mm
Finished Cu weight Outer layers: 1 oz (1.4 mils)
Via plating thickness 20 μm
Surface finish Immersion gold
Silkscreen No
Solder Mask No
Quality assurance (prior to shipment) 100% Electrical test
PCB Stack-up
The 2-layer rigid PCB features a precisely optimized stack-up to leverage DiClad 870's unique properties:
Layer/Material Thickness Specification
Copper_layer_1 35 μm
DiClad 870 Core 2.362mm (93mil)
Copper_layer_2 35 μm
Artwork, Standards, and Availability
Artwork Format: You should supply the file. Gerber RS-274-X, a universal standard for PCB manufacturing data, ensuring seamless production and compatibility with industry workflows.
Quality Standard: Complies with IPC-Class-2, guaranteeing reliable performance for general electronic applications and meeting stringent industry requirements.
Availability: Offered worldwide, making it accessible for global projects across various industries, from telecommunications to aerospace.

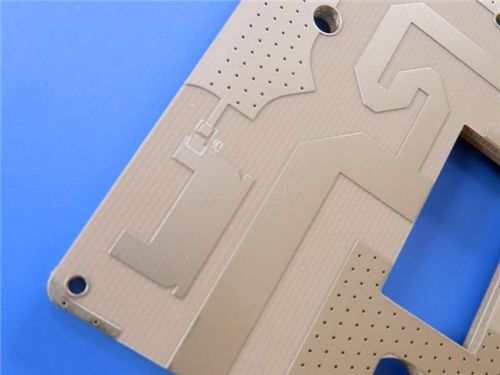

DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications 0
Key Features of Rogers DiClad 870
DiClad 870 enhances the PCB's performance with a range of standout features:
  • Electrical Stability: Dielectric Constant (Dk) of 2.33 at 10 GHz and 1 MHz (50% RH), with a low dissipation factor of 0.0013 at 10 GHz and 0.0009 at 1 MHz--minimizing signal loss in high-frequency applications.
  • Thermal Coefficient of Dielectric Constant (TcDK): -161 ppm/°C over the range of -10~140°C (10 GHz), ensuring stable electrical performance across temperature fluctuations.
  • Mechanical and Environmental Resilience: Low moisture absorption (0.02%)--the lowest among PTFE-based composites--along with a copper peel strength of 14 lbs/in (10s @288°C), ensuring durability in harsh environments.
  • Safety and Reliability: Arc resistance >180 seconds and UL 94-V0 flammability rating, enhancing safety in critical applications.
  • Dimensional Stability: Coefficient of Thermal Expansion (CTE) of 17 ppm/°C (X-axis), 29 ppm/°C (Y-axis), and 217 ppm/°C (Z-axis), supporting consistent performance under thermal stress.
Benefits of DiClad 870
These features translate to critical advantages for the PCB:
  • Lowest Moisture Absorption: Ensures long-term reliability in humid or moisture-prone environments.
  • Stable Dk Over Frequency: Maintains consistent signal propagation across a wide range of operating frequencies, critical for multi-band systems.
  • Reduced Insertion Loss: Low Dk supports wider line widths, minimizing signal attenuation and enhancing overall system efficiency.
Typical Applications
Leveraging the performance of Rogers DiClad 870, this PCB is ideally suited for:
  • Radar Feed Networks
  • Commercial Phased Array Networks
  • Low Loss Base Station Antennas
  • Guidance Systems
  • Digital Radio Antennas
  • Filters, Couplers, and LNAs (Low-Noise Amplifiers)
DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications 1
