1oz TLX-8 PCB Reliable RF Solutions 2 Layer

1oz TLX-8 PCB Reliable RF Solutions 2 Layer

MOQ: 1PCS
Price: USD9.99-99.99/PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Material:
Taconic TLX-8 Core - 0.762 Mm (30mil)
Layer Count:
2-layer
PCB Size:
85mm X 77 Mm=1PCS, +/- 0.15mm
PCB Thickness:
0.8 Mm
Copper Weight:
1oz (1.4 Mils) Outer Layers
Surface Finish:
Immersion Gold
Highlight:

2 Layer PCB Reliable RF Solutions

,

TLX-8 PCB Reliable RF Solutions

,

1oz PCB Reliable RF Solutions

Product Description

The launch of the TLX-8 PCB marks a significant advancement in high-volume antenna applications, particularly within the realms of RF engineering and microwave technologies. As a senior sales manager, I understand the importance of providing reliable and robust solutions for demanding environments. This article delves into the technical specifications, applications, and advantages of the TLX-8 PCB, highlighting why it stands out in a competitive market.



Introduction to TLX-8

The TLX-8 is constructed from PTFE fiberglass laminates, a material renowned for its excellent performance in a wide range of RF applications. This PCB is particularly advantageous for low layer count microwave designs, which require optimal mechanical reinforcement and stability. The TLX-8 is engineered to endure severe conditions, making it suitable for applications that face high levels of vibration, temperature fluctuations, and radiation exposure.



Key Characteristics of TLX-8

1. Durability in Extreme Conditions: One of the most compelling features of the TLX-8 is its resilience. It is designed to withstand extreme environments, including:


- High Vibration: Ideal for printed wiring boards (PWBs) used in space launch systems, where mechanical creep can lead to failure.


- High Temperatures: Perfect for engine modules that encounter intense heat during operation.


- Radiation Resistance: Compliant with NASA’s standards for low outgassing materials, making it suitable for aerospace applications.


- Maritime Applications: Its robustness against harsh sea environments ensures reliability in warship antennas.


- Temperature Stability: Maintains performance across a wide temperature range, essential for altimeter substrates in flight.



2. Outstanding Electrical Properties: The TLX-8 PCB excels in electrical performance, with:
- Dielectric Constant: Measured at 2.55 ± 0.04 at 10 GHz, ensuring consistent signal integrity.



- Dissipation Factor: A low dissipation factor of 0.0018 minimizes signal loss, enhancing overall system performance.


-Surface and Volume Resistivity: High resistivity values contribute to its effectiveness in various applications.



3. Mechanical and Chemical Stability: The TLX-8 PCB boasts:
- Moisture Absorption: A mere 0.02% moisture absorption rate, enhancing durability and performance longevity.



- Flammability Rating: With a UL 94 V0 rating, it meets stringent fire safety criteria, ensuring it can be deployed in sensitive environments.

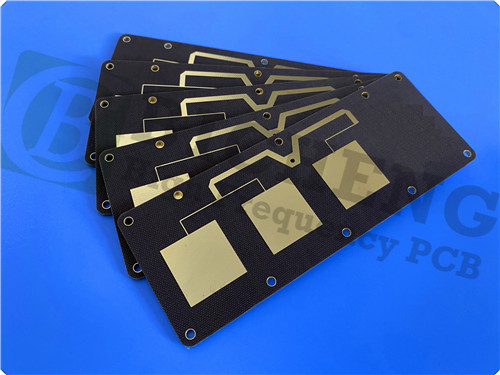

1oz TLX-8 PCB Reliable RF Solutions 2 Layer 0



PCB Construction and Specifications

This PCB features a 2-layer rigid stackup, with specific construction details that enhance its performance:



- Layer Composition:
- Copper Layer 1: 35 μm
- Taconic TLX-8 Core: 0.762 mm (30 mil)
- Copper Layer 2: 35 μm



- Board Dimensions: 85mm x 77mm, with a tolerance of +/- 0.15mm.
- Finished Thickness: 0.8mm, with a finished copper weight of 1 oz for the outer layers.



This careful engineering ensures that the TLX-8 PCB meets rigorous demands in various applications, from radar systems to microwave test equipment.



1oz TLX-8 PCB Reliable RF Solutions 2 Layer 1



Typical Applications

The TLX-8 PCB is designed for a wide array of applications in the RF and microwave sectors:



- Radar Systems: Its ability to maintain performance in high-vibration and temperature environments makes it ideal for radar technology.


- Mobile Communications: With its low PIM values, the TLX-8 enhances signal reliability in mobile applications.


- Microwave Test Equipment: The stability and performance of this PCB are critical for accurate testing and measurement in microwave technologies.


- Transmission Devices: It excels in couplers, splitters, combiners, amplifiers, and antennas, contributing to efficient signal transmission.



Quality Assurance and Availability

Each PCB adheres to IPC-Class 2 quality standards, ensuring that every unit shipped meets the highest benchmarks for performance and reliability. We utilize a 100% electrical testing prior to shipment, guaranteeing that every PCB functions flawlessly in its intended application.

The TLX-8 is available worldwide, providing engineers and designers with a robust solution for their RF and microwave project challenges.



Conclusion

In conclusion, the TLX-8 PCB represents a cutting-edge solution for professionals in the RF and microwave industries. Its exceptional mechanical, thermal, and electrical properties make it a reliable choice for demanding applications. As we continue to push the boundaries of technology, the TLX-8 stands as a testament to innovation and quality in PCB project.



For more information or to place an order, please contact our sales team at sales10@bichengpcb.com. Let's elevate your projects to new heights with the TLX-8 PCB!
