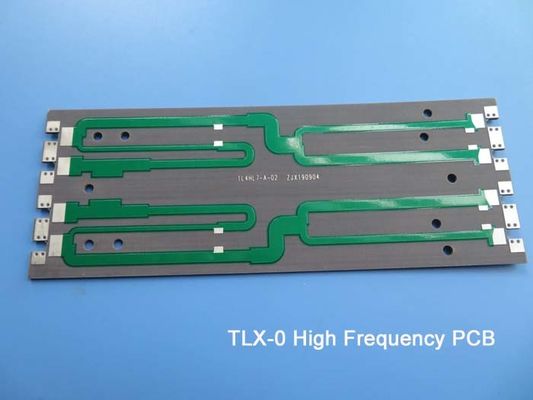

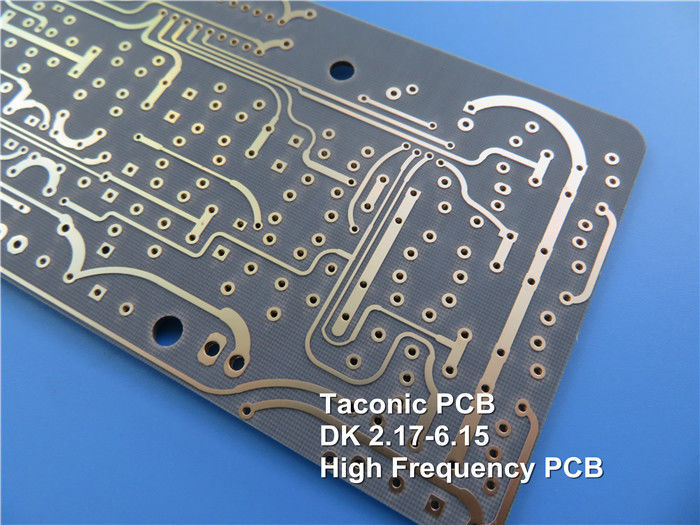

TLX-0 Rf Pcb Board 5mil 1OZ Immersion Gold
  • name
  • name

TLX-0 Rf Pcb Board 5mil 1OZ Immersion Gold

MOQ: 1PCS
Price: USD9.99-99.99/PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Material:
TLX-0
PCB Size:
26.64mm X 64.97 Mm=1PCS, +/- 0.15mm
Copper Weight:
1oz (1.4 Mils)
Surface Finish:
Immersion Gold
Layer Count:
2-layer
PCB Thickness:
0.2mm
Highlight:

TLX-0 rf pcb board

,

5mil rf pcb board

,

1OZ Immersion Gold rf pcb board

Product Description

Introduction
The TLX-0 is a high-performance printed circuit board made using PTFE fiberglass composite material. The TLX series laminates offer excellent reliability and versatility for a wide range of RF and microwave applications. With a dielectric constant of 2.45 ± 0.04 and low dissipation factor, the TLX-0 is an ideal choice for low-layer count microwave designs.



Features
Dielectric Constant (Dk): 2.45 ± 0.04 at 10 GHz
Dissipation Factor (Df): 0.0021 at 10 GHz
Low Moisture Absorption: 0.02%
Coefficient of Thermal Expansion (CTE):
X-Axis: 21 ppm/°C
Y-Axis: 23 ppm/°C
Z-Axis: 215 ppm/°C
Strong Peel Strength: 12 lbs/in



Type DK
TLY-5A 2.17
TLY-5 2.20
TLY-3 2.33
TLT-0 TLX-0 2.45
TLT-9 TLX-9 2.50
TLT-8 TLX-8 2.55
TLT-7 TLX-7 2.60
TLT-6 TLX-6 2.65
TLE-95 2.95
TLC-27 2.75
TLC-30 RF-30 3.00
TLC-32 3.20
TLF-35 3.50
TLF-35-xxxx-A 3.50
RF-35 RF-35A2 3.50
TRF-41 4.10
TRF-43 4.30
TRF-45 4.50
RF-60A 6.15
CER-10 10



Benefits
Excellent PIM performance (< -160 dBc)
Robust mechanical and thermal properties
Low and stable dielectric constant
Dimensionally stable
Low moisture absorption
Tight Dk tolerance
Low dissipation factor
UL 94 V0 flammability rating
Suitable for low-layer count microwave designs



Applications
The TLX-0 PCB is well-suited for a variety of RF and microwave applications, including:



Couplers, splitters, combiners, amplifiers
Antennas and passive components
Radar systems and mobile communications
Microwave test equipment
Microwave transmission devices and RF components



PCB Specifications

Material: TLX-0 PTFE Fiberglass Composite
Layer Stack-up: 2-layer rigid
Copper Thickness: 1 oz (35 μm) on both layers
Board Dimensions: 26.64 mm x 64.97 mm ± 0.15 mm
Minimum Trace/Space: 5/5 mils
Minimum Hole Size: 0.3 mm
Finished Board Thickness: 0.2 mm
Via Plating Thickness: 20 μm
Surface Finish: Immersion Gold



This PCB is manufactured to IPC-Class-2 quality standards and is available worldwide. Contact us today to discuss your RF and microwave design requirements.
