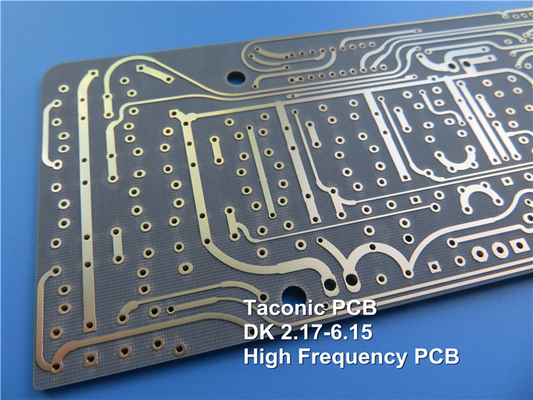

TLX-9 High Frequency PCB 0.508mm 1OZ Immersion Gold

TLX-9 High Frequency PCB 0.508mm 1OZ Immersion Gold
TLX-9 High Frequency PCB 0.508mm 1OZ Immersion Gold TLX-9 High Frequency PCB 0.508mm 1OZ Immersion Gold

Large Image :  TLX-9 High Frequency PCB 0.508mm 1OZ Immersion Gold

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Material: TLX-9 Thickness: 0.508mm
Surface Finish: Immersion Gold Copper Weight: 1 OZ

It's delighted to share our newly shipped PCB with you. This high performance PCB whihch is based on TLX-9 substrates. TLX-9 is a cutting-edge PTFE/woven glass laminate PCB designed to offer exceptional electrical and mechanical properties. This composite material provides precise control over its characteristics, with the dielectric constant (Dk) customizable within a specified range and a tolerance of ±0.04. When measured at 10 GHz, TLX-9 exhibits a dissipation factor of approximately 0.0019.



TLX-9 boasts an impressive set of material properties. Its dielectric constant at 10 GHz is 2.5, ensuring low signal loss and maintaining signal integrity in high-frequency applications. With a moisture absorption rate of less than 0.02%, TLX-9 offers enhanced reliability even under humid conditions. It showcases a high dielectric breakdown of over 60 kV, ensuring safe operation in demanding electrical environments. TLX-9 also features excellent volume and surface resistivity, along with a remarkable arc resistance of more than 180 seconds.



The mechanical properties of TLX-9 are equally impressive. It has a flexural strength of over 23,000 lbs./in. lengthwise and over 19,000 lbs./in. crosswise, providing exceptional mechanical reinforcement. The peel strength with 1oz copper is 12 lbs./linear in., ensuring secure adhesion of components. TLX-9 also exhibits controlled coefficient of thermal expansion (CTE) values, with a range of 9-12 ppm/°C in the x-y direction and 130-145 ppm/°C in the z direction, enhancing reliability in varying temperature conditions. Additionally, TLX-9 has a thermal conductivity of 0.19 W/m/K, facilitating efficient heat dissipation.



TLX-9 TYPICAL VALUES
Property Test Method Units Value Units Value
Dielectric Constant @ 10 GHz IPC-TM 650 2.5.5.5   2.5   2.5
Dissipation Factor @ 10 GHz IPC-TM 650 2.5.5.5   0.0019   0.0019
Moisture Absorption IPC-TM 650 2.6.2.1 % <0.02 % <0.02
Dielectric Breakdown IPC-TM 650 2.5.6 kV >60 kV >60
Volume Resistivity IPC-TM 650 2.5.17.1 Mohm/cm 10^7 Mohm/cm 10^7
Surface Resistivity IPC-TM 650 2.5.17.1 Mohm 10^7 Mohm/cm 10^7
Arc Resistance IPC-TM 650 2.5.1 seconds >180 seconds >180
Flexural Strength Lengthwise IPC-TM 650 2.4.4 lbs./in. >23,000 N/mm2 >159
Flexural Strength Crosswise IPC-TM 650 2.4.4 lbs./in. >19,000 N/mm2 >131
Peel Strength (1oz copper) IPC-TM 650 2.4.8 lbs./linear in. 12 N/mm 2.1
Thermal Conductivity ASTM F 433 W/m/K 0.19 W/m/K 0.19
x-y CTE ASTM D 3386 (TMA) ppm/°C 9-12 ppm/°C 9-12
z CTE ASTM D 3386 (TMA) ppm/°C 130- 145 ppm/°C 130- 145
UL-94 Flammability Rating UL-94   V-0   V-0



Safety is a priority with TLX-9, as it meets the UL-94 flammability rating of V-0, ensuring high fire resistance in critical applications. These properties make TLX-9 an excellent choice for applications that demand low dielectric constant, low dissipation factor, low moisture absorption, high dielectric breakdown, good peel strength, and controlled CTE.



This newly shipped PCB is a 2-layer rigid board with a copper weight of 35 μm on each outer layer. The board dimensions are 41.5mm x 32.72 mm, with a finished thickness of 0.6mm. It supports a minimum trace/space of 7/8 mils and a minimum hole size of 0.4mm. Each PCB undergoes a thorough 100% electrical test prior to shipment, ensuring its quality and reliability.



TLX-9 High Frequency PCB 0.508mm 1OZ Immersion Gold 0



TLX-9 PCBs find applications in various industries. They are particularly suitable for LNAs, LNBs, and LNCs, personal communications services/networks (PCS/PCN) large format antennas, high-power amplifiers, and passive components. With its exceptional electrical and mechanical properties, TLX-9 PCBs provide reliable performance and optimal signal transmission.



TLX-9 PCBs adhere to the IPC-Class-2 quality standard and are available worldwide. The supplied artwork is in Gerber RS-274-X format, ensuring compatibility with standard PCB manufacturing processes.



With its exceptional electrical properties, mechanical strength, and wide range of applications, TLX-9 PCBs offer a reliable and high-performance solution for demanding electronic projects, empowering innovation across various industries.
