1OZ RT duroid 6002 40mil Thick Immersion Gold PCB

1OZ RT duroid 6002 40mil Thick Immersion Gold PCB
1OZ RT duroid 6002 40mil Thick Immersion Gold PCB 1OZ RT duroid 6002 40mil Thick Immersion Gold PCB

Large Image :  1OZ RT duroid 6002 40mil Thick Immersion Gold PCB

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
High Light:

duroid 6002 Immersion Gold PCB


1OZ Immersion Gold PCB


40mil Immersion Gold PCB

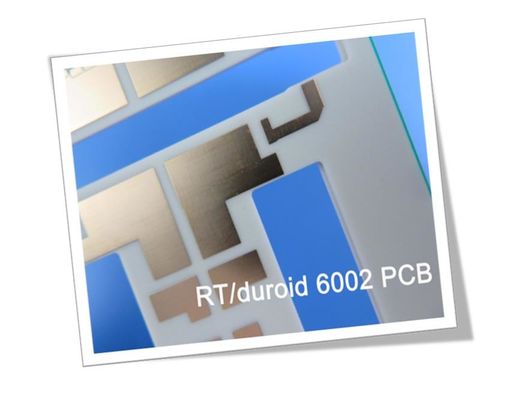

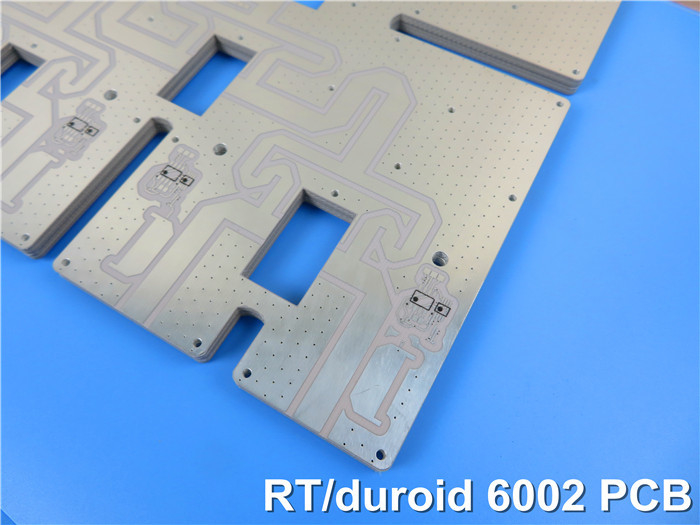

Introducing the our RF PCB built on Rogers RT/duroid 6002 materials. RT duroid 6002 is a high-performance microwave material engineered for complex microwave structures. With its low dielectric constant (Dk) and exceptional mechanical and electrical properties, this PCB is designed to deliver reliable performance in multi-layer board constructions. Whether you're working on phased array antennas, radar systems, GPS antennas, power backplanes, or beam forming networks, the RT/duroid 6002 PCB is the ideal choice for your high-frequency applications.


Key Features of the RT/duroid 6002 PCB:


1. Superior High-Frequency Performance:
- Low Dielectric Constant (Dk): With a Dk of 2.94 +/- .04, the RT/duroid 6002 PCB ensures precise signal integrity and reliable high-frequency performance.


- Low Dissipation Factor: Boasting a dissipation factor of .0012 at 10GHz, this PCB minimizes signal loss, enabling efficient and high-speed data transmission.

- Excellent Thermal Stability: With a low thermal coefficient of Dk at 12 ppm/°C, the RT/duroid 6002 PCB maintains stable performance even in varying temperature conditions.

- High Thermal Conductivity: The PCB's thermal conductivity of 0.6 W/m/k helps dissipate heat effectively, ensuring optimal performance in demanding applications.

- Minimal Moisture Absorption: With a moisture absorption rate of only 0.02%, this PCB is well-suited for high-humidity environments, providing long-term reliability.


RT/duroid 6002 Typical Value
Property RT/duroid 6002 Direction Units Condition Test Method
Dielectric Constant,εProcess 2.94±0.04 Z   10 GHz/23℃ IPC-TM-650
Dielectric Constant,εDesign 2.94     8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0012 Z   10 GHz/23℃ IPC-TM-650
Thermal Coefficient of ε +12 Z ppm/℃ 10 GHz 0℃-100℃ IPC-TM-650
Volume Resistivity 106 Z A ASTM D 257
Surface Resistivity 107 Z Mohm A ASTM D 257
Tensile Modulus 828(120) X,Y MPa(kpsi) 23℃ ASTM D 638
Ultimate Stress 6.9(1.0) X,Y MPa(kpsi)
Ultimate Strain 7.3 X,Y %
Compressive Modulus 2482(360) Z MPa(kpsi)   ASTM D 638
Moisture Absorption 0.02   % D48/50 IPC-TM-650
ASTM D 570
Thermal Conductivity 0.6   W/m/k 80℃ ASTM C518
Coefficient of Thermal Expansion
(-55 to 288℃)
ppm/℃ 23℃/50% RH IPC-TM-650 2.4.41
Td 500   ℃ TGA   ASTM D 3850
Density 2.1   gm/cm3   ASTM D 792
Specific Heat 0.93(0.22)   j/g/k
Copper Peel 8.9(1.6)   Ibs/in.(N/mm)   IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-free Process Compatible Yes


2. Reliable Construction and Dimensional Stability:
- Multi-Layer Board Construction: The RT/duroid 6002 PCB is designed for multi-layer board constructions, offering excellent mechanical and electrical properties for reliable performance.


- Tight Thickness Control: The PCB stackup features a precise thickness of 40mil (1.016mm), ensuring consistent performance and compatibility with your design requirements.

- Dimensional Stability: Enjoy excellent dimensional stability, allowing for accurate integration of components and reliable operation over time.

- Immersion Gold Surface Finish: The PCB surface is coated with immersion gold, providing excellent conductivity and protecting against oxidation, ensuring long-term reliability.


3. Rigorous Quality Assurance:
- IPC-Class-2 Standard: This PCB complies with the IPC-Class-2 standard, guaranteeing adherence to stringent quality requirements.


- 100% Electrical Test: Each PCB undergoes a thorough 100% electrical test before shipment, ensuring that only the highest quality products reach your hands.

- Gerber RS-274-X Artwork: The PCB artwork is supplied in Gerber RS-274-X format, facilitating seamless integration into your manufacturing processes.

- Global Availability: This PCB is readily available worldwide, ensuring accessibility for PCB engineers and designers alike.


4. PCB Statistics:
- Components: This PCB supports up to 25 components, providing flexibility for your design requirements.
- Total Pads: The PCB features 64 pads, allowing for efficient connectivity and integration of components.


- Thru Hole and SMT Pads: With 41 thru hole pads and 23 top SMT pads, this PCB accommodates various component types and assembly methods.

- Vias: This PCB includes 42 vias, enabling efficient signal routing and connectivity.
- Nets: This PCB supports 2 nets, allowing for organized and optimized signal flow.


PCB Material: Ceramic-filled PTFE composite
Designation: RT/duroid 6002
Dielectric constant: 2.94 ±0.04 (process)
2.94 (design)
Layer count: 2 Layer, Multilayer
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10mil (0.254mm), 20mil (0.508mm)
30mil (0.762mm), 60mil (1.524mm), 120mil (3.048mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immserion Silver, OSP etc..


1OZ RT duroid 6002 40mil Thick Immersion Gold PCB 0


5. Wide Range of Applications:
The RT/duroid 6002 PCB is suitable for a variety of high-frequency applications, including:
- Phased Array Antennas: Achieve precise beam steering and high-speed data transmission in phased array antenna systems.
- Radar Systems: Benefit from exceptional signal integrity and reliable performance in ground-based and airborne radar systems.
- GPS Antennas: Ensure accurate positioning and reliable GPS signal reception with the RT/duroid 6002 PCB.
- Power Backplanes: Experience efficient power distribution and low-loss performance in power backplane applications.
- Commercial Airline Collision Avoidance: Enhance safety and communication in commercial airline collision avoidance systems.
- Beam Forming Networks: Achieve optimal signal processing and beamforming capabilities with the RT/duroid 6002 PCB.


To summarize, the Rogers RT/duroid 6002 PCB is a superior choice for high-frequency applications due to its exceptional performance, low dielectric constant, and impressive mechanical properties. Its reliable construction, dimensional stability, and compatibility with multi-layer board configurations make it well-suited for demanding applications across various industries. Rest assured that the RT/duroid 6002 PCB will deliver the performance you need to fully unleash the potential of your high-frequency designs.
