2-Layer RF PCB Made Of 30mil RT Duroid 5870 Laminates With Bare Copper

2-Layer RF PCB Made Of 30mil RT Duroid 5870 Laminates With Bare Copper

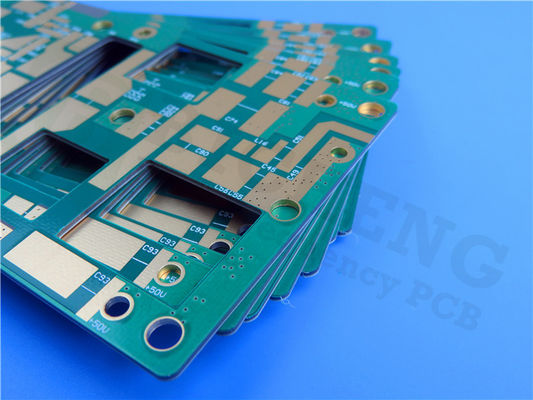

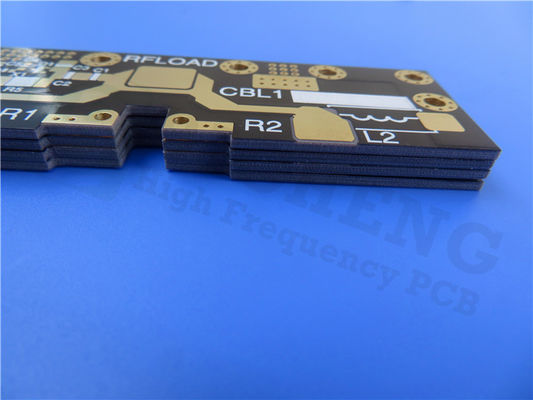

2-Layer RF PCB Made Of 30mil RT Duroid 5870 Laminates With Bare Copper 2-Layer RF PCB Made Of 30mil RT Duroid 5870 Laminates With Bare Copper 2-Layer RF PCB Made Of 30mil RT Duroid 5870 Laminates With Bare Copper

Large Image :  2-Layer RF PCB Made Of 30mil RT Duroid 5870 Laminates With Bare Copper

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
High Light:

30mil 2Layer RF PCB


Bare Copper 2Layer RF PCB


5870 Laminates RF PCB

Introducing a newly shipped PCB which is made of RT/duroid 5870, a premium high-frequency laminate engineered by Rogers. With its PTFE composites reinforced with glass microfibers, this exceptional PCB material offers unparalleled performance in high-frequency applications, while maintaining a low dielectric constant (Dk). The randomly oriented microfibers within the PTFE composites ensure remarkable Dk uniformity, making RT/duroid 5870 laminates the ideal choice for high-frequency/broadband applications where minimizing dispersion and losses is crucial.


Key Features of RT/duroid 5870:


1. Consistent Electrical Performance:
- Low Dielectric Constant (Dk): With a Dk of 2.33 and a tight tolerance of 0.02 at 10 GHz/23°C, RT/duroid 5870 ensures precise signal integrity and reliable performance.


- Minimal Dissipation Factor: Boasting a dissipation factor of 0.0012 at 10GHz, this laminate minimizes signal loss and attenuation, maximizing the efficiency of your high-frequency circuits.

- Temperature Coefficient of Dielectric Constant (TCDk): With a TCDk of -115 ppm/°C, RT/duroid 5870 maintains stable performance across varying temperature conditions.

- Low Moisture Absorption: With a moisture absorption rate of only 0.02%, this laminate is well-suited for demanding high-humidity environments.

- Isotropic Properties: RT/duroid 5870 exhibits uniform electrical properties over a wide frequency range, ensuring consistent performance throughout your applications.


Property RT/duroid 5870 Direction Units Condition Test Method
Dielectric Constant,εProcess 2.33
2.33±0.02 spec.
Z N/A C24/23/50
1 MHz IPC-TM-650
Dielectric Constant,εDesign 2.33 Z N/A 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0005
Z N/A C24/23/50
1 MHz IPC-TM-650
Thermal Coefficient of ε -115 Z ppm/℃ -50℃to 150℃ IPC-TM-650
Volume Resistivity 2 x 107 Z Mohm cm C/96/35/90 ASTM D 257
Surface Resistivity 3 x 107 Z Mohm C/96/35/90 ASTM D 257
Specific Heat 0.96(0.23) N/A j/g/k
N/A Calculated
Tensile Modulus Test at 23℃ Test at 100℃ N/A MPa(kpsi) A ASTM D 638
1300(189) 490(71) X
1280(185) 430(63) Y
Ultimate Stress 50(7.3) 34(4.8) X
42(6.1) 34(4.8) Y
Ultimate Strain 9.8 8.7 X %
9.8 8.6 Y
Compressive Modulus 1210(176) 680(99) X MPa(kpsi) A ASTM D 695
1360(198) 860(125) Y
803(120) 520(76) Z
Ultimate Stress 30(4.4) 23(3.4) X
37(5.3) 25(3.7) Y
54(7.8) 37(5.3) Z
Ultimate Strain 4 4.3 X %
3.3 3.3 Y
8.7 8.5 Z
Moisture Absorption 0.02 N/A % 0.62"(1.6mm) D48/50 ASTM D 570
Thermal Conductivity 0.22 Z W/m/k 80℃ ASTM C 518
Coefficient of Thermal Expansion 22
ppm/℃ 0-100℃ IPC-TM-650 2.4.41
Td 500 N/A ℃ TGA N/A ASTM D 3850
Density 2.2 N/A gm/cm3 N/A ASTM D 792
Copper Peel 27.2(4.8) N/A Pli(N/mm) 1oz(35mm)EDC foil
after solder float
IPC-TM-650 2.4.8
Flammability V-0 N/A N/A N/A UL 94
Lead-free Process Compatible Yes N/A N/A N/A N/A


2. Unmatched Benefits:
- Lowest Electrical Loss: Among reinforced PTFE materials, RT/duroid 5870 stands out with its exceptionally low electrical loss, enabling superior signal integrity and reduced power loss.


- Easy Machinability: RT/duroid 5870 can be easily cut, shaped, and machined to meet your specific design requirements, providing flexibility and efficiency during fabrication.

- Chemical Resistance: This laminate is highly resistant to solvents and reagents used in etching or plating processes, ensuring durability and longevity.

- Ideal for High Moisture Environments: RT/duroid 5870 excels in high-moisture environments, making it the perfect choice for applications where reliability is paramount.

- Proven Performance: With a well-established reputation in the industry, RT/duroid 5870 has been trusted and utilized by professionals worldwide for its exceptional performance.

- Uniform Electrical Properties: Enjoy consistent electrical properties over a wide frequency range, allowing you to achieve reliable and predictable results in your designs.


2-Layer RF PCB Made Of 30mil RT Duroid 5870 Laminates With Bare Copper 0


3. PCB Construction Details:
- 2-layer Rigid PCB: This PCB stackup consists of a top copper layer (35 μm), an RT/duroid 5870 core (0.787 mm or 31mil), and a bottom copper layer (35 μm).


- Precise Board Dimensions: The board measures 35mm x 22.5mm with a tolerance of +/- 0.15mm, ensuring accurate and reliable integration into your systems.

- Advanced Manufacturing: The finished board boasts a thickness of 0.87mm, a finished copper weight of 1oz (1.4 mils) on the outer layers, and a via plating thickness of 20 μm.

- Minimalistic Design: The surface finish is bare copper, providing excellent conductivity, while there is no top or bottom silkscreen or solder mask, maintaining a clean and sleek appearance.

- Rigorous Quality Assurance: Each PCB undergoes a 100% electrical test before shipment, ensuring that only the highest quality products reach your hands.


4. PCB Statistics:
- Components: 7
- Total Pads: 19
- Thru Hole Pads: 12
- Top SMT Pads: 7
- Bottom SMT Pads: 0
- Vias: 5
- Nets: 2


5. Supported Standards and Availability:
- Accepted Standard: RT/duroid 5870 complies with IPC-Class-2, guaranteeing adherence to stringent quality standards.
- Compatibility: Artwork is supplied in Gerber RS-274-X format, facilitating seamless integration into your manufacturing processes.
- Worldwide Availability: RT/duroid 5870 is readily available worldwide, ensuring accessibility for PCB manufacturers and designers alike.


6. Explore Various Applications:
- Commercial Airline Broadband Antennas: RT/duroid 5870 delivers exceptional electrical performance, making it ideal for reliable and high-speed broadband communication in the aviation industry.


- Microstrip and Stripline Circuits: Achieve precise signal transmission and reception in RF and microwave circuits, ensuring optimal performance.

- Millimeter Wave Applications: Develop cutting-edge millimeter-wave systems and devices for advanced communication and sensing applications, leveraging the outstanding capabilities of RT/duroid 5870 for enhanced performance.

- Radar Systems: Benefit from RT/duroid 5870's excellent performance in radar applications, enabling accurate detection and tracking capabilities.

- Guidance Systems: Ensure reliable signal processing and communication in guidance systems, offering precise navigation and control.

- Point-to-Point Digital Radio Antennas: Experience efficient and high-speed data transmission in point-to-point radio communication systems, powered by RT/duroid 5870.


In summary,this RF PCB made of RT/duroid 5870 laminates from Rogers provide exceptional high-frequency performance, low dielectric constant, and remarkable uniformity. With its outstanding electrical properties, ease of customization, chemical resistance, and suitability for high-moisture environments, RT/duroid 5870 is the go-to choice for demanding applications. Trust in the proven performance of RT/duroid 5870 to unlock the full potential of your high-frequency projects.
