RO4003C Dual Layer Immersion Gold PCB on 32mil Laminates UL 94 Standard

RO4003C Dual Layer Immersion Gold PCB on 32mil Laminates UL 94 Standard
RO4003C Dual Layer Immersion Gold PCB on 32mil Laminates UL 94 Standard RO4003C Dual Layer Immersion Gold PCB on 32mil Laminates UL 94 Standard

Large Image :  RO4003C Dual Layer Immersion Gold PCB on 32mil Laminates UL 94 Standard

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description

Introduction:
In the fast-paced world of electronics, demand for high-performance printed circuit boards (PCBs) continues to rise. The recently shipped RO4003C PCB is a breakthrough solution that enables the realization of cutting-edge applications requiring high operating frequencies, stability, and reliability. This article delves into the features, benefits, construction details, statistics, and typical applications of the RO4003C PCB, highlighting its significant advantages for the electronics industry.



1. Features:
The RO4003C substrate boasts an array of features that make it a standout choice for high-frequency applications:



a) Rogers RO4003C Woven Glass Reinforced Hydrocarbon/Ceramics:
The RO4003C PCB is constructed using Rogers' advanced RO4003C material, a woven glass reinforced hydrocarbon/ceramics substrate. This unique composition provides exceptional electrical performance, stability, and dimensional accuracy.



b) Dielectric Constant (DK) of 3.38 +/- 0.05 at 10GHz:
With a low dielectric constant and tight tolerance, the RO4003C PCB ensures precise signal propagation, minimizing losses and maximizing signal integrity.



c) Dissipation Factor of 0.0027 at 10GHz:
The low dissipation factor of the RO4003C PCB enables efficient energy transfer, reducing signal attenuation and supporting high-frequency applications.



d) Thermal Conductivity of 0.71 W/m/°K:
The PCB's high thermal conductivity facilitates effective heat dissipation, ensuring optimal performance and reliability even under demanding conditions.



e) Coefficient of Thermal Expansion (CTE):
The RO4003C PCB exhibits a low Z-axis expansion and controlled expansion coefficients in the X, Y, and Z axes, making it highly stable across a wide range of temperatures.



f) Tg > 280 °C:
With a high glass transition temperature (Tg), the RO4003C PCB can withstand elevated temperatures, making it suitable for applications that involve harsh operating conditions.



g) -40℃ to +85℃ Operation:
The PCB is designed to operate reliably in a temperature range from -40℃ to +85℃, ensuring its suitability for various environments.



RO4003C Typical Value
Property RO4003C Direction Units Condition Test Method
Dielectric Constant,εProcess 3.38±0.05 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3.55 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0027
0.0021
Z   10 GHz/23℃
2.5 GHz/23℃
IPC-TM-650 2.5.5.5
Thermal Coefficient of ε +40 Z ppm/℃ -50℃to 150℃ IPC-TM-650 2.5.5.5
Volume Resistivity 1.7 x 1010   MΩ.cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 4.2 x 109   COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650 2.5.6.2
Tensile Modulus 19,650(2,850)
19,450(2,821)
X
Y
MPa(ksi) RT ASTM D 638
Tensile Strength 139(20.2)
100(14.5)
X
Y
MPa(ksi) RT ASTM D 638
Flexural Strength 276
(40)
  MPa
(kpsi)
  IPC-TM-650 2.4.4
Dimensional Stability <0.3 X,Y mm/m
(mil/inch)
after etch+E2/150℃ IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 11
14
46
X
Y
Z
ppm/℃ -55℃to288℃ IPC-TM-650 2.4.41
Tg >280   ℃ TMA A IPC-TM-650 2.4.24.3
Td 425   ℃ TGA   ASTM D 3850
Thermal Conductivity 0.71   W/M/oK 80℃ ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50℃
ASTM D 570
Density 1.79   gm/cm3 23℃ ASTM D 792
Copper Peel Stength 1.05
(6.0)
  N/mm
(pli)
after solder float 1 oz.
EDC Foil
IPC-TM-650 2.4.8
Flammability N/A       UL 94
Lead-free Process Compatible Yes



2. Benefits:
The RO4003C PCB offers several benefits that make it an ideal choice for high-frequency and broadband applications:



a) Low Dielectric Tolerance and Low Loss:
The PCB's low dielectric tolerance and low loss characteristics enable efficient signal transmission, minimizing signal degradation and maximizing system performance.



b) Excellent Electrical Performance:
With stable electrical properties across a wide frequency range, the RO4003C PCB ensures consistent signal integrity and enables the design of high-performance filters and transmission lines.



c) Controlled Impedance Transmission Lines:
The PCB's properties allow for the creation of controlled impedance transmission lines, ensuring accurate signal matching and minimizing reflections, resulting in improved signal quality.



d) Excellent Dimensional Stability:
The RO4003C PCB exhibits excellent dimensional stability, ensuring consistent performance and enabling precise manufacturing and assembly processes.



e) Reliable Plated Through Holes:
The low Z-axis expansion and CAF resistance of the RO4003C PCB contribute to the reliability and longevity of plated through holes, enhancing overall PCB durability.



f) Remains Stable over a Wide Range of Temperatures:
The PCB's low in-plane expansion coefficient ensures stability throughout the circuit processing temperature range, allowing for consistent performance during manufacturing and operation.



g) Volume Manufacturing Process and Competitive Pricing:
RO4003C laminates can be fabricated using standard glass epoxy processes, making them compatible with volume manufacturing. Additionally, the PCB's competitive pricing offers cost-effective solutions for various applications.

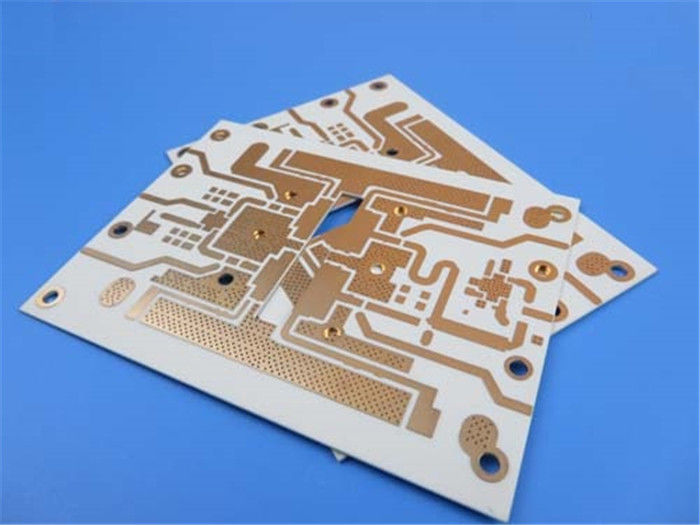

RO4003C Dual Layer Immersion Gold PCB on 32mil Laminates UL 94 Standard 0



3. PCB Stackup and Construction Details:
This PCB follows a 2-layer rigid PCB stackup, with copper layers on both sides of the RO4003C core. The construction details are as follows:

- Copper Layer 1: 35 μm
- Rogers 4003C Core: 0.813 mm (32 mil)
- Copper Layer 2: 35 μm



The board dimensions are 1200mm x 300mm, with a tolerance of +/- 0.15mm. This PCB supports a minimum trace/space of 6/6 mils and a minimum hole size of 0.5mm. It does not incorporate blind vias. The finished board thickness is 0.9mm, with a finished outer layer copper weight of 1oz (1.4 mils). Via plating thickness is 20 μm, and the surface finish is immersion gold. The top silkscreen is black, and there is no bottom silkscreen or solder mask.



Every PCB undergoes a 100% electrical test before shipment, ensuring the highest quality standards.



4. PCB Statistics:
This PCB is equipped to handle complex electronic designs, with the following statistics:

- Components: 51
- Total Pads: 232
- Thru Hole Pads: 171
- Top SMT Pads: 61
- Bottom SMT Pads: 0
- Vias: 120
- Nets: 4

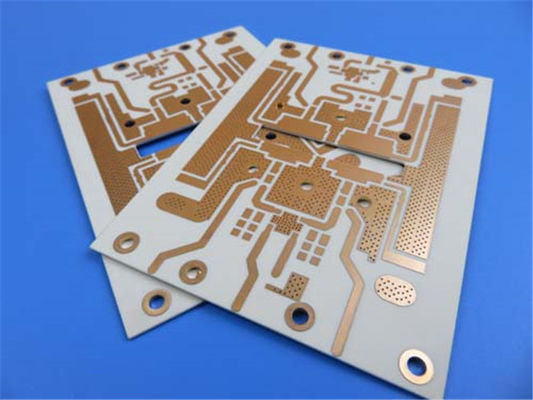

RO4003C Dual Layer Immersion Gold PCB on 32mil Laminates UL 94 Standard 1



5. Type of Artwork Supplied: Gerber RS-274-X
This RO4003C PCB accepts Gerber RS-274-X artwork, ensuring compatibility with industry-standard design tools and facilitating seamless integration into existing manufacturing processes.



6. Quality Standard: IPC-Class-2
The RO4003C PCB adheres to the IPC-Class-2 quality standard, guaranteeing reliable performance and consistent manufacturing quality.



7. Availability: Worldwide
The RO4003C PCB is available for purchase and shipment worldwide, making it accessible to designers and manufacturers across the globe.



8. Some Typical Applications:
The versatility and performance characteristics of the RO4003C PCB make it well-suited for a wide range of applications, including:



- Cellular Base Station Antennas and Power Amplifiers: The high-frequency capabilities and stability of the RO4003C PCB make it an ideal choice for cellular base station antennas and power amplifiers, where reliable signal transmission and efficient energy transfer are crucial.



- RF Identification Tags: The low dielectric tolerance and controlled impedance transmission lines of the PCB enable highly accurate and reliable RF identification tag systems.



- Automotive Radar and Sensors: The RO4003C PCB's stable electrical properties and low loss characteristics make it an excellent choice for automotive radar and sensor systems, where precise signal transmission and detection are essential.



- LNB's for Direct Broadcast Satellites: The PCB's low dielectric tolerance, low loss, and controlled impedance transmission lines are advantageous for LNB (Low Noise Block) applications in direct broadcast satellites, enabling high-quality signal reception and processing.



Conclusion:
The RO4003C PCB represents a significant advancement in high-frequency PCB technology, offering exceptional electrical performance, stability, and reliability. With its low dielectric tolerance, controlled impedance transmission lines, and dimensional stability, the RO4003C PCB opens up new possibilities for applications requiring high operating frequencies and stringent performance standards. Whether in cellular base stations, RF identification, automotive radar, or satellite systems, the R
O4003C PCB provides the foundation for superior performance, enabling engineers and designers to push the boundaries of technology.
