2 Layer Cutting Edge Rigid PCB Board Built On 30mil RO4350B Substrates

2 Layer Cutting Edge Rigid PCB Board Built On 30mil RO4350B Substrates
2 Layer Cutting Edge Rigid PCB Board Built On 30mil RO4350B Substrates 2 Layer Cutting Edge Rigid PCB Board Built On 30mil RO4350B Substrates 2 Layer Cutting Edge Rigid PCB Board Built On 30mil RO4350B Substrates

Large Image :  2 Layer Cutting Edge Rigid PCB Board Built On 30mil RO4350B Substrates

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99/PCS-99.99/PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
High Light:

Woven Glass Reinforced Hydrocarbon PCB Board


2 Layer Rigid PCB Substrates


30mil Rigid PCB Board

Introducing our cutting-edge PCB built on Rogers RO4350B substrates. Supplied for exceptional performance and reliability, this PCB offers a wide range of features and benefits that make it ideal for advanced electronic applications.


The PCB substrates are constructed using Rogers RO4350B woven glass reinforced hydrocarbon/ceramics, which provide outstanding electrical properties. With a dielectric constant of DK 3.48 +/-0.05 at 10GHz and a dissipation factor of 0.0037 at 10GHz, this PCB enables applications with higher operating frequencies and offers low dielectric tolerance and loss.


RO4350B Typical Value
Property RO4350B Direction Units Condition Test Method
Dielectric Constant,εProcess 3.48±0.05 Z   10 GHz/23 IPC-TM-650 Clamped Stripline
Dielectric Constant,εDesign 3.66 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0037
Z   10 GHz/23
2.5 GHz/23
Thermal Coefficient of ε +50 Z ppm/ -50to 150 IPC-TM-650
Volume Resistivity 1.2 x 1010   MΩ.cm COND A IPC-TM-650
Surface Resistivity 5.7 x109   COND A IPC-TM-650
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650
Tensile Modulus 16,767(2,432)
MPa(ksi) RT ASTM D 638
Tensile Strength 203(29.5)
MPa(ksi) RT ASTM D 638
Flexural Strength 255
  IPC-TM-650 2.4.4
Dimensional Stability <0.5 X,Y mm/m
after etch+E2/150 IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 10
ppm/ -55to288 IPC-TM-650 2.4.41
Tg >280   TMA A IPC-TM-650
Td 390   TGA   ASTM D 3850
Thermal Conductivity 0.69   W/M/oK 80 ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50
ASTM D 570
Density 1.86   gm/cm3 23 ASTM D 792
Copper Peel Stength 0.88
after solder float 1 oz.
EDC Foil
IPC-TM-650 2.4.8
Flammability (3)V-0       UL 94
Lead-free Process Compatible Yes


One of the key advantages of this PCB is its excellent stability of electrical properties across different frequencies, making it suitable for controlled impedance transmission lines and the repeatable design of filters. The RO4350B laminates also exhibit a low thermal coefficient of dielectric constant, ensuring excellent dimensional stability even in demanding thermal environments.


The low Z-axis expansion of the substrate guarantees reliable plated through holes, while the low in-plane expansion coefficient ensures stability throughout the entire range of circuit processing temperatures.


Supplied as a 2-layer rigid PCB, this product provides a reliable and cost-effective solution for electronic designs. The board dimensions are 100mm x 50mm with a thickness of 0.8mm. It features a copper layer thickness of 35 μm on both sides and a Rogers 4350B core thickness of 0.762mm (30mil). The minimum trace/space is 4/4 mils, and the minimum hole size is 0.25mm. The finished Cu weight is 1oz (1.4 mils) on the outer layers, and the via plating thickness is 20 μm. The surface finish is HASL, providing a reliable and widely-used coating for the PCB. The top silkscreen is in white, and the top solder mask is in green.

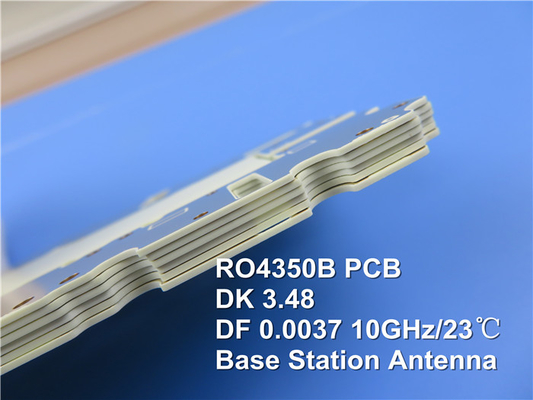

2 Layer Cutting Edge Rigid PCB Board Built On 30mil RO4350B Substrates 0


This high-quality PCB has undergone rigorous testing, including a 100% electrical test, to ensure its reliability and performance. It complies with IPC-Class-2 quality standards, meeting industry requirements for consistent and reliable performance.


With its competitive pricing, this PCB offers a cost-effective solution without compromising on quality. The RO4350B laminates can be fabricated using standard glass epoxy processes, simplifying the manufacturing process and reducing production costs.


The RO4350B PCB is CAF resistant and UL 94 V-0 rated, making it suitable for applications that require excellent performance and safety standards.


This PCB is suitable for a wide range of applications, including cellular base station antennas and power amplifiers, RF identification tags, automotive radar and sensors, and LNBs for direct broadcast satellites.


With worldwide availability, you can easily integrate this high-performance PCB into your electronic designs.


For technical inquiries or further information, please contact Our dedicated team is ready to assist you with any questions or specific requirements. Choose the high-performance RO4350B PCB for exceptional reliability, stability, and cost-effectiveness in your next electronic project.
