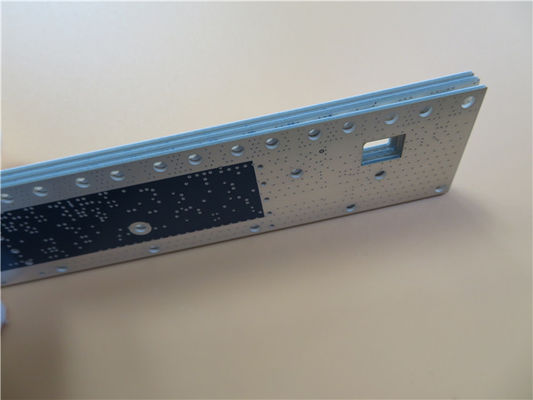

30mil RF-30 PCB 2-Layer Rigid Circuit Board HASL And Green Solder Mask

Introducing our cutting-edge 2-layer rigid PCB, specially crafted with Taconic RF-30 PTFE Ceramic-Glass substrate to deliver exceptional reliability and unwavering stability. This PCB is meticulously designed to meet the stringent demands of a wide range of applications, ensuring optimal signal integrity and top-notch performance. With a DK of 3.0 +/- 0.1 at 1.9 GHz/23°C and a dissipation factor of 0.0014 at the same frequency and temperature, rest assured your signals will be transmitted with utmost precision.

he Taconic RF-30 substrate boasts an array of advanced features, including improved PIMD (Passive Intermodulation Distortion) and PTH (Plated Through Hole) quality, elevating the overall performance to unparalleled heights. Its rock-solid mechanical properties and exceptional high-frequency stability make it the perfect choice for mission-critical applications. Meanwhile, the remarkably low moisture absorption of 0.02% and an impressive peel strength of 10 lbs/in guarantee long-term reliability, even in the harshest environments.

This PCB's stackup comprises two copper layers seamlessly integrated with the RF-30 substrate, ensuring optimal signal performance and dimensional stability. With a generous board dimension of 228.99mm x 117.25mm, this PCB offers ample space to accommodate your components with precision and flexibility. It supports a minimum trace/space of 5/6 mils and a minimum hole size of 0.3mm, allowing for intricate designs and seamless integration.

Rest assured that this PCB adheres to the rigorous standards set by IPC-Class-2, a testament to our commitment to excellence and quality. Prior to shipment, each PCB undergoes a meticulous 100% electrical test, guaranteeing flawless performance and unwavering reliability.

With an impressive lineup of 72 components and 181 pads, this PCB caters to a wide range of applications, including antennas and subcomponents, RF passive components, and power amplifiers. Its unrivaled high temperature stability and exceptional price/performance ratio make it the ideal solution for demanding projects that require nothing short of perfection.

We take pride in offering worldwide availability for our PCB, ensuring that customers from all corners of the globe can benefit from its superior performance. For any technical inquiries or further information, our dedicated sales team is ready to assist you. Reach out to us at sales10@bichengpcb.com and let us elevate your next project with our cutting-edge 2-layer rigid PCB featuring Taconic RF-30 substrate.
