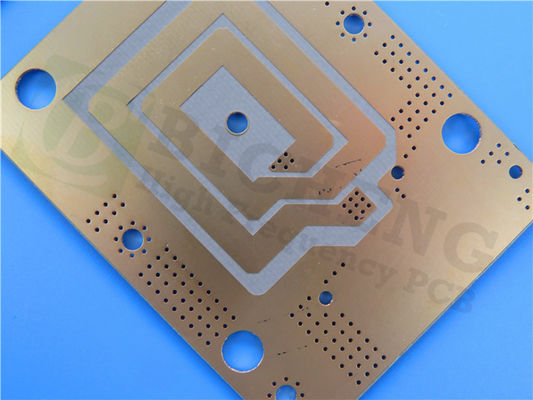

20mil DiClad 880 RF PCB Board With Immesion Silver And Blue Solder Mask

20mil DiClad 880 RF PCB Board With Immesion Silver And Blue Solder Mask
20mil DiClad 880 RF PCB Board With Immesion Silver And Blue Solder Mask 20mil DiClad 880 RF PCB Board With Immesion Silver And Blue Solder Mask

Large Image :  20mil DiClad 880 RF PCB Board With Immesion Silver And Blue Solder Mask

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99/PCS-99.99/PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
High Light:

2-Layer RF PCB Board


20mil Rigid PCB Board


Rigid PCB Circuit Board

Introducing our newly shipped PCB built on the cutting-edge Rogers DiClad 880 woven fiberglass reinforced, PTFE-based composites. This advanced substrate offers exceptional electrical properties, dimensional stability, and chemical resistance, making it the perfect choice for a wide range of high-performance systems.


This PCB substrate features a DK of 2.2 +/- 0.04 at 10 GHz/23°C and 1 MHz, along with a dissipation factor of 0.0009 at 10 GHz/23°C and 0.0008 at 1 MHz. It exhibits a TCDK of -160 ppm/°C ranging from -10°C to 140°C, ensuring stable performance across temperature variations. Moreover, with a moisture absorption rate of only 0.02%, it outperforms other PTFE-based composites in humid environments.


The PCB substrate boasts several key features. It offers an extremely low loss tangent, minimizing signal degradation and ensuring superior signal integrity. The excellent dimensional stability of the DiClad 880 substrate guarantees consistent performance even in challenging environments. You can rely on the product performance uniformity, which provides consistent and reliable operation across a wide range of frequencies.


Parameter Value
 Layer Counts  1-32
 Substrate Materials RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
 Maximum Size  Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
 Board Outline Tolerance  ±0.0059" (0.15mm)
 PCB Thickness 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)  ±8%
Thickness Tolerance(t<0.8mm)  ±10%
 Insulation Layer Thickness 0.00295" - 0.1969" (0.075mm--5.00mm)
 Minimum Track 0.003" (0.075mm)
 Minimum Space  0.003" (0.075mm)
 Outer Copper Thickness  35µm--350µm (1oz-10oz)
 Inner Copper Thickness  17µm--350µm (0.5oz - 10oz)
 Drill Hole(Mechanical) 0.0079" - 0.25" (0.2mm--6.35mm)
 Finished Hole(Mechanical) 0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical) 0.00295" (0.075mm)
 Registration (Mechanical) 0.00197" (0.05mm)
 Aspect Ratio  12:1
 Solder Mask Type  LPI
 Min Soldermask Bridge 0.00315" (0.08mm)
 Min Soldermask Clearance 0.00197" (0.05mm)
 Plug via Diameter 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance  ±10%
 Surface Finish HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc.


This PCB demonstrates consistent mechanical performance, delivering exceptional durability and reliability for critical electronic systems. It also exhibits excellent chemical resistance, protecting against damage from various chemicals. The lowest moisture absorption among PTFE-based composites further enhances the reliability of the PCB.


With a stable dielectric constant (Dk) over a wide frequency range, this PCB enables precise signal control and transmission. Additionally, the low Dk characteristic supports wider line widths, resulting in lower insertion loss and improved overall signal integrity.


20mil DiClad 880 RF PCB Board With Immesion Silver And Blue Solder Mask 0

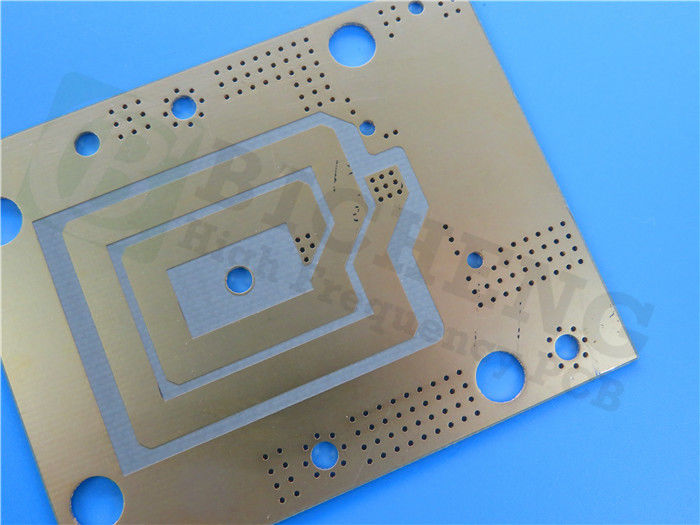

This 2-layer rigid PCB stackup consists of copper Layer 1 with a thickness of 35 μm, a DiClad 880 substrate with a thickness of 0.508 mm (20 mil), and copper Layer 2 with a thickness of 35 μm. The finished board has a thickness of 0.6mm and a Cu weight of 1oz (1.4 mils) on the outer layers. It features a surface finish of immersion silver, top silkscreen in white, and top solder mask in blue.


This PCB find a variety of applications, including radar feed networks, commercial phased array networks, low loss base station antennas, guidance systems, digital radio antennas, filters, couplers, and LNAs.


For technical inquiries or to place an order, please contact our dedicated sales team at We prioritize exceptional customer support and aim to deliver high-quality PCBs to customers worldwide.


20mil DiClad 880 RF PCB Board With Immesion Silver And Blue Solder Mask 1
