HASL Lead Free High Frequency PCB,
0.8mm High Frequency PCB,
30mil Double Sided PCB

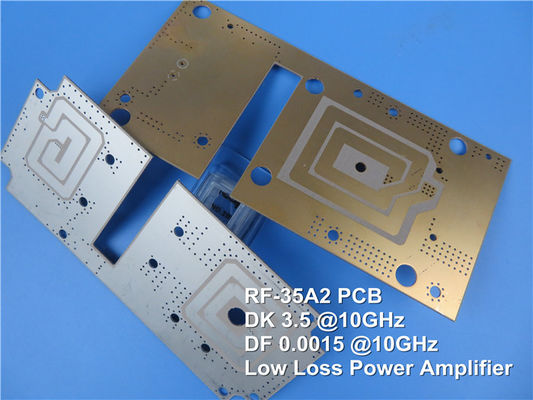

Experience the pinnacle of electronic performance with the RF-35A2 PCB. Meticulously crafted using Glass Reinforced PTFE Ceramic Composites, this two-layer rigid printed circuit board sets a new standard for excellence. With its exceptional material composition, precise construction details, and impressive performance characteristics, the RF-35A2 PCB offers unparalleled reliability and functionality for your most demanding electronic applications.
Material and Performance:
Crafted from Glass Reinforced PTFE Ceramic Composites, the RF-35A2 PCB exhibits outstanding electrical properties. With a Dielectric Constant (Dk) of 3.5 at 10 GHz and a Dissipation Factor of 0.0015 at 10 GHz/23°C, it ensures low loss and high signal integrity. The PCB also boasts an X-CTE of 10 ppm/°C, Y-CTE of 13 ppm/°C, and Z-CTE of 108 ppm/°C, allowing stable operation across a wide temperature range from -40℃ to +85℃.
|Dk @ 10 GHz||IPC-650 126.96.36.199.1 (Modified)||3.5||3.5|
|Df @ 10 GHz||IPC-650 188.8.131.52.1 (Modified)||0.0015||0.0015|
|Moisture Absorption||IPC-650 184.108.40.206||%||0.03||%||0.03|
|Dielectric Breakdown||IPC-650 2.5.6/ASTM D 149||kV||59||kV||59|
|Dielectric Strength||ASTM D 149||V/mil||1000||V/mm||39,370|
|Volume Resistivity||IPC-650 220.127.116.11 Sec. 5.2.1 (Humidity Cond.)||Mohm/cm||10^9||Mohm/cm||10^9|
|Surface Resistivity||IPC-650 18.104.22.168 Sec. 5.2.1 (Humidity Cond.)||Mohm||10^8||Mohm||10^8|
|Arc Resistance||IPC-650 2.5.1||Seconds||242||Seconds||242|
|Flexural Strength (MD)||IPC-650 2.4.4||kpsi||24||N/mm2||165|
|Flexural Strength (CD)||IPC-650 2.4.4||kpsi||15||N/mm2||103|
|Tensile Strength (MD)||ASTM D 3039||psi||16,800||N/mm2||116|
|Tensile Strength (CD)||ASTM D 3039||psi||11,000||N/mm2||75.8|
|Young’s Modulus (MD)||ASTM D 3039||psi||106||N/mm2||8,343|
|Young’s Modulus (CD)||ASTM D 3039||psi||106||N/mm2||7,171|
|Poisson’s Ratio (MD)||ASTM D 3039||0.14||0.14|
|Poisson’s Ratio (CD)||ASTM D 3039||0.1||0.1|
|Strain at Break (MD)||ASTM D 3039||%||1.6||%||1.6|
|Strain at Break (CD)||ASTM D 3039||%||1.4||%||1.4|
|Compressive Modulus (Z axis)||ASTM D 695 (23°C)||kpsi||385||N/mm2||2,650|
|Peel Strength (1 oz. VLP)||IPC-650 2.4.8 (Thermal Stress)||lbs/in||12||N/mm||2.1|
|Peel Strength (1 oz. VLP)||IPC-650 22.214.171.124 (150°C ) (Elevated Temp.)||lbs/in||14||N/mm||2.5|
|Peel Strength (1 oz. VLP)||IPC-650 2.4.8 Sec. 5.2.3 (Proc. Chemicals)||lbs/in||11||N/mm||2|
|Density (Specific Gravity)||gm/cm3||2.28||gm/cm3||2.28|
|Specific Heat||ASTM E 1269 (DSC) (100°C)||J/g/K||0.99||J/g/K||0.99|
|Thermal Conductivity||ASTM F 433||W/M*K||0.29||W/M*K||0.29|
|Td||IPC-650 126.96.36.199 2% Weight Loss||°C||528||°C||528|
|Td||IPC-650 188.8.131.52 5% Weight Loss||°C||547||°C||547|
|CTE (x)||IPC-650 2.4.41 (>RT - 125°C)||ppm/°C||10||ppm/°C||10|
|CTE (y)||IPC-650 2.4.41 (>RT - 125°C)||ppm/°C||13||ppm/°C||13|
|CTE (z)||IPC-650 2.4.41 (>RT - 125°C)||ppm/°C||108||ppm/°C||108|
The RF-35A2 PCB offers several key benefits, including low loss properties, a Dk Tolerance of ±0.05, and homogeneous Dk throughout the board. Its excellent peel strength and low moisture absorption ensure long-lasting durability. Moreover, the PCB facilitates ease of drilling, simplifying the manufacturing process.
The PCB features a 2-layer rigid design with a Taconic Core RF-35A2 of 0.762 mm (30mil) thickness, sandwiched between two copper layers of 35 μm each. With a finished board thickness of 0.8mm and a finished Cu weight of 1 oz (1.4 mils) on the outer layers, it strikes a balance between sturdiness and flexibility. The minimum trace/space of 7/7 mils and minimum hole size of 0.30mm enable intricate circuit designs.
Quality Assurance and Compatibility:
To ensure its reliability, each RF-35A2 PCB undergoes a 100% electrical test before shipment. The PCB adheres to the IPC-Class-2 standard, guaranteeing high-quality manufacturing standards. With worldwide availability, it caters to customers from all corners of the globe.
The RF-35A2 PCB finds wide application in various fields, including power amplifiers, filters/couplers, high-speed digital systems, multilayer PCBs, passive components, and wireless antennas. Its versatile nature makes it suitable for both commercial and industrial applications.
For any technical inquiries or assistance, our dedicated team member Ivy at email@example.com.
Exploring the Advanced Features of RF-35A2: A Deep Dive into the Newly Shipped PCB
Unlocking the Potential: Discover the Cutting-Edge RF-35A2 PCB.
The world of printed circuit boards (PCBs) is constantly evolving, driven by the demand for high-performance and reliable electronic devices. In this context, the RF-35A2 PCB has emerged as a game-changer, revolutionizing the industry with its advanced features and exceptional capabilities. In this article, we will take a deep dive into the RF-35A2 PCB, exploring its high-frequency performance, moisture absorption, dielectric properties, electrical performance, mechanical strength, structural integrity, thermal conductivity, and dimensional stability.
Taking High-Frequency Applications to New Heights: Unveiling RF-35A2.
The RF-35A2 PCB offers outstanding high-frequency performance, making it ideal for applications in the telecommunications, aerospace, and wireless communication sectors. With a dielectric constant (Dk) of 3.5 at 10 GHz, it ensures accurate signal transmission and minimal signal loss. Additionally, the low dissipation factor (Df) of 0.0015 guarantees excellent signal integrity and reduced power loss, enabling high-speed data transfer and reliable communication.
Ensuring Reliability: The Low Moisture Absorption of RF-35A2.
Moisture absorption is a critical consideration in PCB design, as it can impact the long-term reliability and performance of electronic devices. The RF-35A2 PCB boasts a moisture absorption rate of just 0.03%, minimizing the risk of delamination, electrical performance degradation, and other moisture-related issues. This exceptional feature ensures the longevity and stability of devices in harsh environments or high-humidity conditions.
Breaking Barriers: Exploring the Dielectric Properties of RF-35A2.
The dielectric properties of the RF-35A2 PCB contribute to its exceptional performance. With a dielectric breakdown strength of 59 kV and a dielectric strength of 1000 V/mil, it can withstand high voltages and electrical stress, ensuring reliable operation under demanding conditions. Moreover, the volume and surface resistivity values of 10^9 Mohm/cm and 10^8 Mohm, respectively, guarantee efficient and consistent electrical insulation.
Powerful Performance: Unraveling the Electrical Capabilities of RF-35A2.
The RF-35A2 PCB excels in electrical performance, making it an excellent choice for high-end electronic applications. Its arc resistance of 242 seconds ensures the prevention of arcing and electrical breakdown, enhancing the safety and reliability of the device(Continued from previous response)
Built to Last: Harnessing the Mechanical Strength of RF-35A2.
In addition to its electrical prowess, the RF-35A2 PCB exhibits impressive mechanical strength. With a flexural strength of 24 kpsi (165 N/mm2) in the machine direction (MD) and 15 kpsi (103 N/mm2) in the cross direction (CD), it can withstand bending and mechanical stress without deformation or damage. This robustness ensures the longevity and durability of the PCB in demanding applications.
Cooling Innovations: The Thermal Conductivity of RF-35A2.
Efficient heat dissipation is vital to ensure the optimal performance and reliability of electronic devices. The RF-35A2 PCB offers a thermal conductivity of 0.29 W/M*K, enabling the effective transfer of heat away from critical components. This feature prevents overheating, extends the lifespan of devices, and enhances their overall performance, particularly in high-power applications.
The RF-35A2 PCB exhibits excellent dimensional stability, making it an ideal choice for applications requiring precise component placement and alignment. With a low coefficient of thermal expansion (CTE) of 10 ppm/°C (x-axis), 13 ppm/°C (y-axis), and 108 ppm/°C (z-axis), it minimizes dimensional changes due to temperature variations. This stability ensures the integrity of solder joints, reduces the risk of stress-induced failures, and enhances the overall performance and reliability of electronic devices.
The RF-35A2 PCB stands at the forefront of PCB technology, offering exceptional performance and reliability for a wide range of high-frequency applications. With its high-frequency performance, low moisture absorption, robust dielectric properties, impressive electrical performance, mechanical strength, structural integrity, thermal conductivity, and dimensional stability, the RF-35A2 PCB paves the way for cutting-edge electronic designs. Incorporating this advanced PCB into your applications will unlock new possibilities, ensuring the success and longevity of your electronic devices in today's fast-paced and demanding technological landscape.
