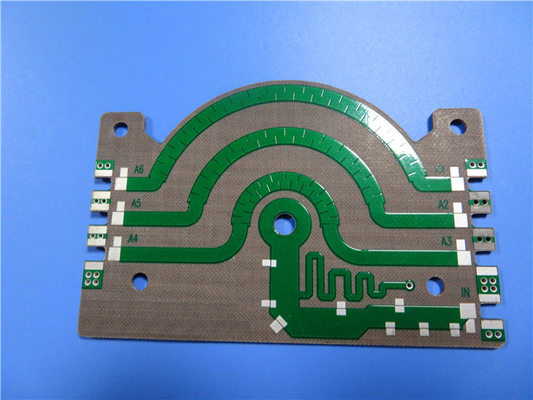

60mil Hybrid Multilayer RF PCB Board With Immersion Gold

60mil Hybrid Multilayer RF PCB Board With Immersion Gold
60mil Hybrid Multilayer RF PCB Board With Immersion Gold 60mil Hybrid Multilayer RF PCB Board With Immersion Gold

Large Image :  60mil Hybrid Multilayer RF PCB Board With Immersion Gold

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-193.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Composites Of Ceramic, PTFE And Woven Fiberglass Layer Count: Double Sided PCB, Multilayer PCB, Hybrid PCB
PCB Thickness: 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm ) PCB Size: ≤400mm X 500mm
Solder Mask: Green, Black, Blue, Yellow, Red Etc. Copper Weight: 0.5oz (17 µm), 1oz (35µm)
Surface Finish: Bare Copper, HASL, ENIG, Immersion Silver, Immersion Tin, OSP, Pure Gold Plated Etc..
High Light:

Hybrid RF Prototype Board

,

Multilayer Electronic Circuit Board

,

60mil Multilayer RF PCB



TLY-5Z High Frequency PCB 60mil 30mil 20mil and 10mil Taconic RF PCB with Immersion Gold

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Taconic's TLY-5Z high frequency laminates are advanced composites of ceramic, PTFE and woven fiberglass reinforcement. It is designed for low density applications such as aerospace having optimally low weight requirements. Since using ceramic and woven fiberglass, TLY-5Z has high stable property on dimension. The low density approach also makes it with a low Z axis expansion which is not possible with PTFE-rich composites. TLY-5Z has high thermally stability and it has just half the thermal expansion of PTFE-rich laminates, offers improved drilling and can be thermally cycled.



Benefits:

Low Z Axis CTE

Plated through hole stability

Low density (1.92 g/cm3)

Attractive price/performance ratio

Excellent peel strength

Compatible with flat copper



Typical Applications:

Aerospace components

Low weight antennas for aircraft

RF passive components



60mil Hybrid Multilayer RF PCB Board With Immersion Gold 0



Our PCB Capability (TLY-5Z)

PCB Material: Composites of Ceramic, PTFE and Woven Fiberglass
Designation: TLY-5Z
Dielectric constant: 2.20 +/- 0.04 (1.9GHz)
Dissipation Factor 0.0015 (10GHz)
Layer count: Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm)
Laminate thickness: 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm )
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold plated etc..



About Us

Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 18 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.



We also have divisions of FR-4 circuit board, flexible circuits and metal core PCBs featured as prototypes, small runs to mass production. We also actively research and build such high value added PCB projects as HDI, quick turn, impedance control, heavy copper and backplane board etc. This has made our PCB products generate an effective prolongation and complementation, as well as formation of integrated products line ranging from low-end to high-end.



Our PCBs are used for a variety of purposes, including, but not limited to, computer networking, safety and surveillance, power supply, telecommunication, automotive electronics, medical apparatus and instruments, national defense and industrial equipment etc.



Appendix: Typical Values of TLY-5Z

Property Test Method Unit Value Unit Value
Dk @ 1.9 GHz IPC-650 2.5.5.5.1 Mod.   2.20+/- 0.04   2.20+/- 0.04
Df @ 1.9 GHz IPC-650 2.5.5.5.1 Mod.   0.001   0.001
Df @ 10 GHz IPC-650 2.5.5.5.1 Mod.   0.0015   0.0015
Tc(D)K (-55 ~150°C) IPC-650 2.5.5.6 Mod. ppm/°C -72 ppm/°C -72
Dielectric Breakdown Voltage IPC-650 2.5.6 kV 45 kV 45
Dielectric Strength IPC-650 2.5.6.2 V/mil 770 V/mm 30,315
Moisture Absorption IPC-650 2.6.2.1 % 0.03 % 0.03
Peel Strength (1 oz. copper) IPC-650 2.4.8 lbs./inch 7 N/mm 1.3
Volume Resistivity IPC-650 2.5.17.1 Mohms/cm 10^9 Mohms/cm 10^9
Surface Resistivity IPC-650 2.5.17.1 Mohms 10^8 Mohms 10^8
Tensile Strength (MD) IPC-650 2.4.18.3 psi 9137 N/mm2 63
Tensile Strength (CD) IPC-650 2.4.18.3 psi 9572 N/mm2 66
Tensile Modulus (MD) IPC-650 2.4.18.3 psi 182,748 N/mm2 1260
Tensile Modulus (CD) IPC-650 2.4.18.3 psi 165,344 N/mm2 1140
Elongation (MD) IPC-650 2.4.18.3 % 6 % 6
Elongation (CD) IPC-650 2.4.18.3 % 6.9 % 6.9
Flex Strength (MD) ASTM D790 psi 10,300 N/mm2 71
Flex Strength (CD) ASTM D790 psi 11,600 N/mm2 80
Flex Modulus (MD) ASTM D790 psi 377,100 N/mm2 2600
Flex Modulus (CD) ASTM D790 psi 432,213 N/mm2 2980
Dimensional Stability (MD) IPC-650 2.4.39 (Bake) % (10 mil) -0.05 % (30 mil) -0.05
Dimensional Stability (CD) IPC-650 2.4.39 (Bake) % (10 mil) -0.17 % (30 mil) -0.11
Dimensional Stability (MD) IPC-650 2.4.39 (Stress) % (10 mil) -0.07 % (30 mil) -0.07
Dimensional Stability (CD) IPC-650 2.4.39 (Stress) % (10 mil) -0.22 % (30 mil) -0.14
Density (Specific Gravity) IPC-650 2.3.5 g/cm3 1.92 g/cm3 1.92
Specific Heat IPC-650 2.4.50 J/g°C 0.95 J/g°C 0.95
Thermal Conductivity IPC-650 2.4.50 W/M*K 0.2 W/M*K 0.2
CTE (x-y) (50 - 150°C) IPC-650 2.4.41 ppm/ºC 30-40 ppm/ºC 30-40
CTE (z) (50 - 150°C) IPC-650 2.4.41 ppm/ºC 130 ppm/ºC 130
Hardness ASTM D2240 (Durometer) - 68 - 68
UL-94 Flammability Rating UL-94   V-0   V-0
