5.0mm High Frequency Printed Circuit Board Alternative High DK RF PCB
  • name
  • name

5.0mm High Frequency Printed Circuit Board Alternative High DK RF PCB

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-184.V1.0
Base Material:
TP-1/2 5.0mm
Layer Count:
2 Layers
PCB Thickness:
5.1 Mm ±0.12
PCB Size:
50 X 61mm=1up
Solder Mask:
Black
Copper Weight:
1oz
Surface Finish:
HASL Lead Free
Highlight:

5.0mm Printed Circuit Board

,

High DK RF PCB Board

,

Double Sided RF PCB Board

Product Description



5.0mm TP-1/2 High Frequency Printed Circuit Board Alternative High DK RF PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

This is a type of microwave PCB which is built on Wangling’s TP-1/2 substrate (DK 10.0). It is a double layer build up on 5.0mm laminate. Surface finish is hot air soldering level (HASL) with black solder mask. Both layers are 1 oz copper finished. The boards are fabricated per IPC 6012 Class 2 using supplied Gerber data. Every 20 boards are packed for shipment.



PCB Specifications

PCB SIZE 50 x 61mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
TP-1/2 5.0mm
copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 197 mil / 118 mil
Minimum / Maximum Holes: 2.0 mm / 6.0 mm
Number of Different Holes: 2
Number of Drill Holes: 8
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: TP-1/2 5.0mm, DK 10.0
Final foil external: 1.0 oz
Final foil internal: N/A
Final height of PCB: 5.1 mm ±0.12
PLATING AND COATING
Surface Finish HASL Lead free
Solder Mask Apply To: Top layer
Solder Mask Color: Black
Solder Mask Type: LPI
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 2.0mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

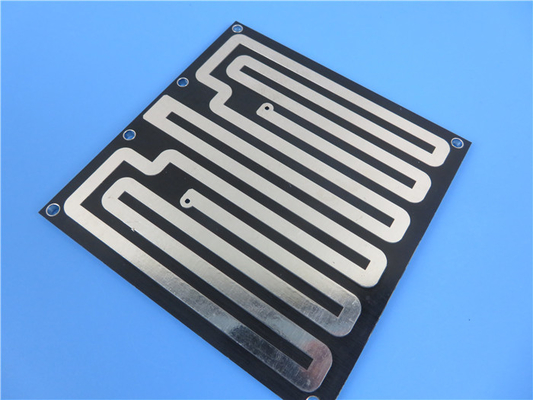

5.0mm High Frequency Printed Circuit Board Alternative High DK RF PCB 0



The typical applications for this material include aircraft collision avoidance systems, GPS antennas, microstrip patch antenna, passive components and satellite components.



Typical Value of TP-1/2

Name Test condition Unit Value
Density Normal state g/cm3 1.0~2.9
Moisture Absorption Dip in distilled water of 20±2℃ for 24 hours % ≤0.02
Peel strength In normal state N/cm ≥6
In the environment of alternating humidity and temperature: N/cm ≥4
Operating Temperature High-low temperature cabinet ℃ -100～+150(Processing temperature should not exceed 200℃)
Thermal Conductivity -55~288℃ W /m /k 0.6
CTE Temperature rise of 96℃ per hour   < 6×10-5
Shrinkage Factor 2 hours in boiling water % 0.0004
Surface Resistivity 500V DC Normal state M.Ω ≥1×107
500V DC Constant humidity and temperature M.Ω ≥1×105
Volume Resistivity Normal state MΩ.cm ≥1×109
Constant humidity and temperature   ≥1×106
Surface dielectric strength Normal state Kv/mm ≥1.5
Constant humidity and temperature   ≥1.2
Dielectric Constant 10GHz εr 3, 6, 9.6, 10.2, 10.5, 11, 16, 20, 22(±2%)(DK can be customized)
Dissipation Factor 10GHz Tgδ(εr 3-11) ≤1×10-3
Tgδ(εr 12-22) ≤1.5×10-3



Other Available High Frequency Materials

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.



Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.



Rogers TMM4, TMM10, Kappa 438 etc.



PTFE F4B DK2.2, DK2.65



Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35TC, RF-35, TLF-35, RF-60A, RF-60TC, RF-35, RF-35A2, RF-45, TRF-45, RF-10 etc.



AD450, AD600, AD1000, TC350 etc.



5.0mm High Frequency Printed Circuit Board Alternative High DK RF PCB 1
