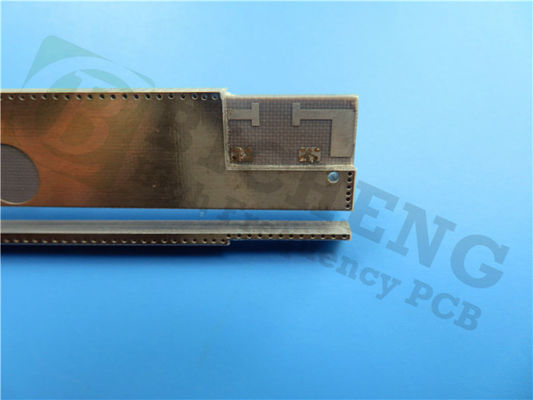

High Frequency Double Sided Taconic Microwave PCB 60mil RF-10
  • name
  • name

High Frequency Double Sided Taconic Microwave PCB 60mil RF-10

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINAz
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-182.V1.0
Base Material:
RF-10 1.524mm
Layer Count:
2 Layers
PCB Thickness:
1.6 Mm ±0.16
PCB Size:
90 X 100mm=1up
Solder Mask:
Green
Copper Weight:
1oz
Surface Finish:
Immersion Gold
Highlight:

Taconic Microwave PCB 60mil

,

Double Sided Taconic Microwave PCB

,

High Frequency Taconic Microwave PCB

Product Description



60mil RF-10 High Frequency PCB Double Sided Taconic Microwave PCB Low Loss High DK RF PCBs

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

This type of low loss high DK PCB is built on 60mil RF-10 substrate.It is a double layer build-up with large area of immersion gold and partial green solder mask. Finished copper 1oz are on both sides. The boards are fabricated per IPC 6012 Class 2 using supplied Gerber data. Every 25 boards are packed for shipment.



PCB Specifications

PCB SIZE 90 x 100mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
RF-10 1.524mm
copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 4 mil
Minimum / Maximum Holes: 0.3 mm / 4.0 mm
Number of Different Holes: 5
Number of Drill Holes: 211
Number of Milled Slots: 5
Number of Internal Cutouts: 3
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RF-10 1.524mm
Final foil external: 1.0 oz
Final foil internal: N/A
Final height of PCB: 1.6 mm ±0.16
PLATING AND COATING
Surface Finish Immersion Gold, 89%
Solder Mask Apply To: Top layer
Solder Mask Color: Green
Solder Mask Type: LPI
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



Typical Applications

1.Aircraft Collision Avoidance Systems

2.GPS Antennas

3.Microstrip Patch Antennas

4.Passive Components (filters, couplers, power dividers)

5.Satellite Components



Why choose us?

1.ISO9001, ISO14001, IATF16949, ISO13485, UL Certified;

2.More than 18+ years’ high frequency PCB experience;

3.Small quantity order is available, no MOQ required;

4.We’re a Team of passion, discipline, responsibility and honesty;

5.Delivery on time: >98%, Customer complaint rate: <1%

6.16000㎡ workshop, 30000㎡ output a month and 8000 types of PCB's a month;

7.Powerful PCB capabilities support your research and development, sales and marketing;

8.IPC Class 2 / IPC Class 3

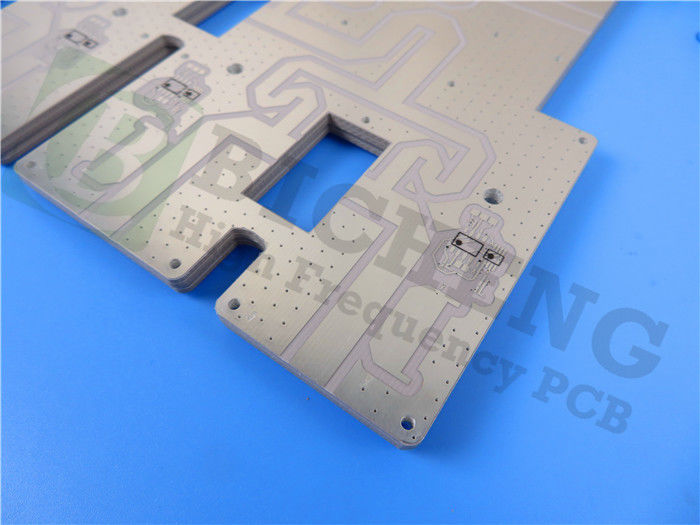

High Frequency Double Sided Taconic Microwave PCB 60mil RF-10 0



Typical Value of RF-10

Property Test Method Unit Value Unit Value
Dk @ 10 GHz IPC-650 2.5.5.5.1 Mod.   10.2 ± 0.3   10.2 ± 0.3
Df @ 10 GHz IPC-650 2.5.5.5.1 Mod.   0.0025   0.0025
TcK† (-55 to 150 °C) IPC-650 2.5.5.6 ppm/°C -370 ppm/°C -370
Moisture Absorption IPC-650 2.6.2.1 % 0.08 % 0.08
Peel Strength (1 oz. RT copper) IPC-650 2.4.8 (solder) lbs/in 10 N/mm 1.7
Volume Resistivity IPC-650 2.5.17.1 Mohm/cm 6.0 x 107 Mohm/cm 6.0 x 107
Surface Resistivity IPC-650 2.5.17.1 Mohm 1.0 x 108 Mohm 1.0 x 108
Flexural Strength (MD) IPC - 650 - 2.4.4 psi 14,000 N/mm2 96.53
Flexural Strength (CD) IPC - 650 - 2.4.4 psi 10,000 N/mm2 68.95
Tensile Strength (MD) IPC - 650 - 2.4.19 psi 8,900 N/mm2 62.57
Tensile Strength (CD) IPC - 650 - 2.4.19 psi 5,300 N/mm2 37.26
Dimensional Stability IPC-650 2.4.39 (After Etch) % (25 mil-MD) -0.0032 % (25 mil-CD) -0.0239
Dimensional Stability IPC-650 2.4.39 (After Bake) % (25 mil-MD) -0.0215 % (25 mil-CD) -0.0529
Dimensional Stability IPC-650 2.4.39 (After Stress) % (25 mil-MD) -0.0301 % (25 mil-CD) -0.0653
Dimensional Stability IPC-650 2.4.39 (After Etch) % (60 mil-MD) -0.0027 % (60 mil-CD) -0.0142
Dimensional Stability IPC-650 2.4.39 (After Bake) % (60 mil-MD) -0.1500 % (60 mil-CD) -0.0326
Dimensional Stability IPC-650 2.4.39 (After Stress) % (60 mil-MD) -0.0167 % (60 mil-CD) -0.0377
Density (Specific Gravity) IPC-650-2.3.5 g/cm3 2.77 g/cm3 2.77
Specific Heat IPC-650-2.4.50 J/g°C 0.9 J/g°C 0.9
Thermal Conductivity (Unclad) IPC-650-2.4.50 W/M*K 0.85 W/M*K 0.85
CTE (X -Y axis) (50 to 150 °C) IPC-650 2.4.41 ppm/°C 16-20 ppm/°C 16-20
CTE (Z axis) (50 to 150 °C) IPC-650 2.4.41 ppm/°C 25 ppm/°C 25
Flammability Rating Internal   V-0   V-0
