30mil AD1000 High Frequency Double Sided RF PCB Board With Immersion Gold

30mil AD1000 High Frequency PCB Double Sided RF PCB DK 10.2 PWB with Immersion Gold

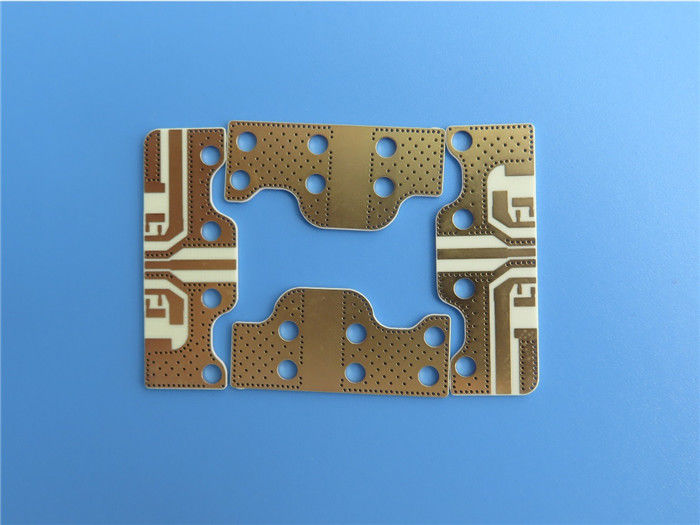

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

Brief Introduction

This type of immersion gold RF PCB is made on AD1000 material, PTFE/Woven Fiberglass/Ceramic Filled Laminate. The circuit board is dual layers with finished 1oz copper. No solder mask and silkscreen. Both layers are fully exposed to air. It’s 0.8mm thick and 50 boards are vacuum packed for shipment.

Typical Applications:

1. Aircraft Collision Avoidance Systems (TCAS)

2. Ground Based Radar Surveillance Systems

3. Low Noise Amplifiers (LNAs)

4. Miniaturized Circuitry & Patch Antennas

5. Power Amplifiers (PAs)

6. Radar Modules and Manifolds

7. X-Band and Below

PCB Specifications

Other Available RF PCB Material

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B DK2.2, DK2.65

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-10, RF-35TC, RF-35, RF-35A2, TLF-35, RF-60A, RF-60TC, RF-45, TRF-45 etc.

AD450, AD600, AD1000, TC350 etc.

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB

Megtron 6 (M6) R-5775G

Our PCB Services

PCB prototypes

Mass volume production

Single sided PCB

Double sided PCB

Multilayer PCB up to 32 layers

Heavy copper PCB

Hybrid PCB

Impedance controlled PCB

Via in pad PCB

Ball grid array (BGA) PCB

Blind via PCB

Countersink holes, half hole, press-fit hole

Quick turn-around (QTA) Delivery

No Minimum Order Quantity (MOQ)

Door to Door shipment service

CAPABILITY

2500-3000 types each month.

SERVICE AREA

North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.

Manufacturing Process of Dual Layer PTH PCB

The immersion gold and HASL PCB are proceeding as following steps: (1). Material Shearing --> (2). Drilling --> (3). PTH --> (4). Dry Film (Circuit) --> (5). Pattern Plating --> (6). Etching --> (7). Solder Mask --> (8). Silkscreen --> (9). Surface Finish --> (10). Profile Contour --> (11). V-groove --> (12). Electrical Test --> (13). Packaging -->(14). Delivery

We can provide you with prototypes, small batches and mass production. Any enquiry, please feel free to contact us.
