AD1000 Printed RF PCB Board Arlon PTFE Ceramic Filled High Frequency

AD1000 Printed RF PCB Board Arlon PTFE Ceramic Filled High Frequency

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-179.V1.0
Base Material:
Woven Glass Reinforced PTFE/Ceramic Filled
Layer Count:
Double Sided PCB, Multilayer PCB, Hybrid PCB
PCB Thickness:
6mil (0.1524mm), 10.5mil (0.2667mm), 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil (0.762mm), 50mil (1.27mm), 59mil (1.499mm ), 125mil ( 3.175mm ), 127mil (3.226mm )
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Silver, Immersion Tin, OSP Etc..
Highlight:

6mil Printed RF PCB Board

,

PTFE Ceramic Filled RF PCB Board

,

Woven Glass Reinforced RF PCB Board

Product Description

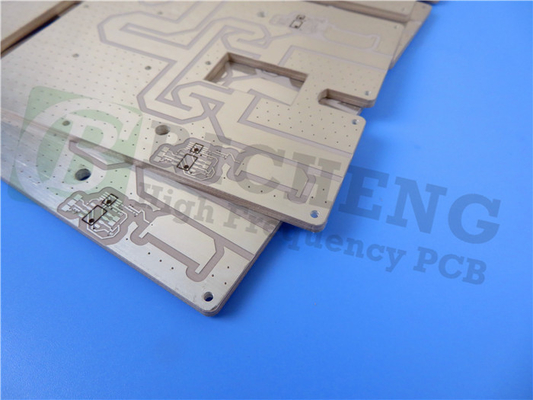

Rogers AD1000 Printed Circuit Board Arlon PTFE Ceramic-Filled High Frequency PCB Double Sided AD1000 RF PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Brief Introduction

AD1000 is a high dielectric constant (10.2 or greater) high frequency material, a woven glass reinforced laminate. It permits circuit miniaturization, compared to traditional low loss materials and allows for greater dimensional stability and mechanical robustness than other 10 Dk laminates. AD1000 Laminates are considered a soft material which can bear vibrational stress, do not need special complicated processing or handling during the fabrication process, comparing with pure ceramic materials.



Features:

1. Woven glass reinforced PTFE/Ceramic with high Dk of 10.2

2. Thermal conductivity of 0.81 W/mK

3. High copper peel strength allows for thinner etched line widths

4. Lowest insertion loss

5. Larger panel sizes available

6. Low moisture absorption of 0.03%

7. Highly reliability ceramic component attachment and PTH reliability resulting from excellent CTE values



AD1000 Printed RF PCB Board Arlon PTFE Ceramic Filled High Frequency 0



AD1000 Printed RF PCB Board Arlon PTFE Ceramic Filled High Frequency 1



Typical Applications:

1. Aircraft Collision Avoidance Systems (TCAS)

2. Ground Based Radar Surveillance Systems

3. Low Noise Amplifiers (LNAs)

4. Miniaturized Circuitry & Patch Antennas

5. Power Amplifiers (PAs)

6. Radar Modules and Manifolds

7. X-Band and Below



AD1000 Printed RF PCB Board Arlon PTFE Ceramic Filled High Frequency 2



Our PCB Capability (AD1000)

PCB Material: Woven Glass Reinforced PTFE/Ceramic Filled
Designation: AD1000
Dielectric constant: 10.2
Dissipation Factor 0.0023 10GHz
Layer count: Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 6mil (0.1524mm), 10.5mil (0.2667mm), 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil (0.762mm), 50mil (1.27mm), 59mil (1.499mm ), 125mil ( 3.175mm ), 127mil (3.226mm )
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP etc..



Why Choose Us?

1. Engineering design prevents problems from occurring in pre-production;

2. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;

3. AOI inspection;

4. Delivery on time higher than 98% on-time-delivery rate;

5. 16000㎡ workshop;

6. 30000㎡ output capability per month;

7. 8000 types of PCB's per month;

8. Quick CADCAM checking and free PCB quotation;

9. More than 18+ years of PCB experience;

10. Customer complaint rate: <1%



Other Available High Frequency PCBs

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B DK2.2, DK2.65

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35TC, RF-35, RF-35A2, RF-45, TRF-45, TLF-35, RF-60A, RF-60TC etc.

AD450, AD600, TC350 etc.
