TRF-45 RF PCB Board 1.0mm Double Sided High Thermal Conductivity
  • name
  • name
  • name

TRF-45 RF PCB Board 1.0mm Double Sided High Thermal Conductivity

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-176.V1.0
Base Material:
TRF-45
Layer Count:
2 Layers
PCB Thickness:
1.1 Mm ±0.1
PCB Size:
100 X 65mm=1up
Solder Mask:
Black
Silkscreen:
White
Copper Weight:
0.5oz
Surface Finish:
Immersion Gold
Highlight:

RF PCB Board 1.0mm

,

Double Sided RF PCB Board

,

Immersion Gold RF PCB Board

Product Description



TRF-45 RF PCB 1.0mm Double Sided High Thermal Conductivity Low Loss PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Brief Introduction

This type of double sided high frequency PCB is built on 40mil TRF-45 low-loss ceramic-filled material with 1oz copper on both top and bottom side. It’s an electroless nikel and immersion gold (ENIG) circuit board with dielectric constant (DK) 4.5. Bottom layer is fully exposed to air.



PCB Specifications

PCB SIZE 100 x 65mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
TRF-45 1.02mm
copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 5.0 mil / 6.0 mil
Minimum / Maximum Holes: 0.4 mm / 3.5 mm
Number of Different Holes: 1
Number of Drill Holes: 3
Number of Milled Slots: 1
Number of Internal Cutouts: 1
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: TRF-45
Final foil external: 1.0 oz
Final foil internal: N/A
Final height of PCB: 1.1 mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold, 65%
Solder Mask Apply To: Top Layer
Solder Mask Color: Black
Solder Mask Type: Kuangshun
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top Layer
Colour of Component Legend White
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

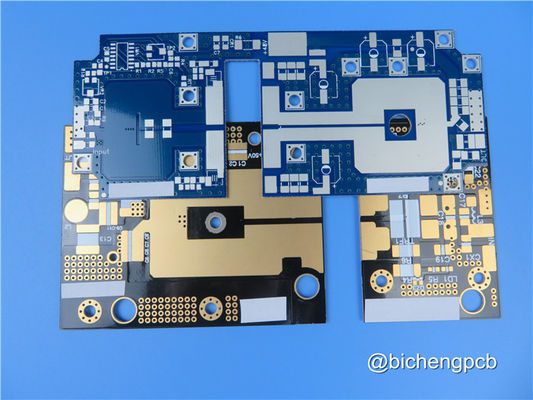

TRF-45 RF PCB Board 1.0mm Double Sided High Thermal Conductivity 0



Other PCB Available Materials

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B (DK2.2, DK2.65, DK2.85, DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2)

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-10, RF-35TC, TLF-35, RF-60A, RF-60TC, RF-35A2 etc.

AD450, AD600, AD1000, TC350 etc.

Nelco N4000, N9350, N9240

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB



CAPABILITY

2500-3000 types each month.



SERVICE AREA

North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.



We can see their applications in Satellite Radio, RF Identification, Power Amplifier etc.







TRF-45 RF PCB Board 1.0mm Double Sided High Thermal Conductivity 1



Manufacturing Process of Dual Layer PTH PCB

The immersion gold and HASL PCB are proceeding as following steps: (1). Material Shearing --> (2). Drilling --> (3). PTH --> (4). Dry Film (Circuit) --> (5). Pattern Plating --> (6). Etching --> (7). Solder Mask --> (8). Silkscreen --> (9). Surface Finish --> (10). Profile Contour --> (11). V-groove --> (12). Electrical Test --> (13). Packaging -->(14). Delivery



TRF-45 RF PCB Board 1.0mm Double Sided High Thermal Conductivity 2



We can provide you with prototypes, small batches and mass production. Any enquiry, please feel free to contact us.
