Rogers TMM13i High Frequency Printed Circuit Board 15mil 20mil 25mil 60mil High DK 12.85 RF PCB With Immersion Gold
  • name
  • name

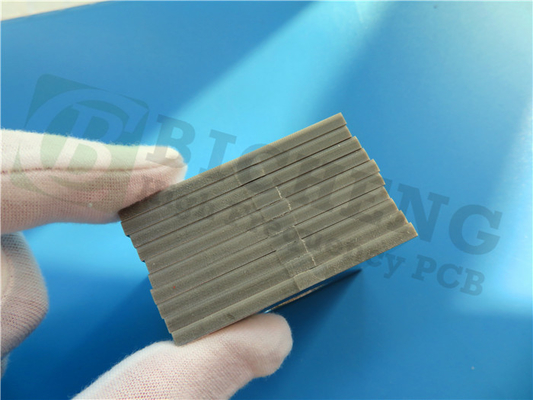

Rogers TMM13i High Frequency Printed Circuit Board 15mil 20mil 25mil 60mil High DK 12.85 RF PCB With Immersion Gold

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-159.V1.0
Base Material:
Woven Fiberglass Reinforced, Ceramic Filled, PTFE Based Composite
Layer Count:
Double Layer, Multilayer, Hybrid PCB
PCB Thickness:
15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil(0.762mm), 50mil (1.27mm), 60mil (1.524mm), 75mil(1.905mm), 100mil (2.54mm), 125mil (3.175mm), 150mil (3.81mm), 200mil (5.08mm), 250mil (6.35mm), 275mil (6.985mm), 300mil (7.62mm), 500mil (12.7mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, OSP, Immersin Tin, Immersion Silver, Pure Gold Plated Etc..
Highlight:

1.524mm Rogers PCB Board

,

60mil Printed Circuit Board

,

Multimedia Transmission Printed Circuit Board

Product Description



Rogers TMM13i High Frequency Printed Circuit Board 15mil 20mil 25mil 60mil High DK 12.85 RF PCB With Immersion Gold

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

Rogers' TMM13i thermoset microwave laminates are ceramic, hydrocarbon, thermoset polymer composites designed for high PTH reliability stripline and microstrip applications. It has the dielectric constant of 12.85 and dissipation factor of 0.0019.



TMM13i has an exceptionally low thermal coefficient of dielectric constant. Its isotropic coefficients of thermal expansion is very closely matched to copper which results in production of high reliability plated through holes, and low etch shrinkage values. Furthermore, the thermal conductivity of TMM13i is approximately twice that of traditional PTFE/ceramic laminates, facilitating heat removal.



Since TMM13i is based on thermoset resins, and do not soften when heated. So wire bonding of component leads to circuit traces can be performed without concerns of pad lifting or substrate deformation.



Typical Applications

1. Chip testers

2. Dielectric polarizers and lenses

3. Filters and coupler

4. Global Positioning Systems Antennas

5. Patch Antennas

6. Power amplifiers and combiners

7. RF and microwave circuitry

8. Satellite communication systems

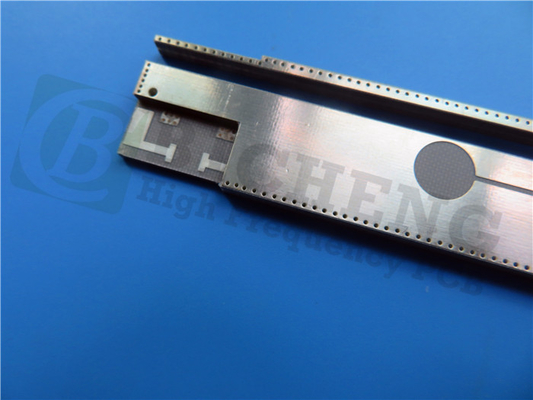

Rogers TMM13i High Frequency Printed Circuit Board 15mil 20mil 25mil 60mil High DK 12.85 RF PCB With Immersion Gold 0



Our PCB Capability(TMM13i)

PCB Material: Ceramic, Hydrocarbon, Thermoset Polymer Composites
Designation: TMM13i
Dielectric constant: 12.85
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil(0.762mm), 50mil (1.27mm), 60mil (1.524mm), 75mil(1.905mm), 100mil (2.54mm), 125mil (3.175mm), 150mil (3.81mm), 200mil (5.08mm), 250mil (6.35mm), 275mil (6.985mm), 300mil (7.62mm), 500mil (12.7mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, Immersin tin, Immersion silver, Pure gold plated etc..



Why Choose Us?

1.ISO9001, ISO14001, IATF16949, ISO13485, UL Certified;

2.More than 18+ years’ high frequency PCB experience;

3.Small quantity order is available, no MOQ required;

4.We’re a Team of passion, discipline, responsibility and honesty;

5.Delivery on time: >98%, Customer complaint rate: <1%

6.16000㎡ workshop, 30000㎡ output a month and 8000 types of PCB's a month;

7.Powerful PCB capabilities support your research and development, sales and marketing;

8.IPC Class 2 / IPC Class 3



Typical Value of TMM13i

Property TMM13i Direction Units Condition Test Method
Dielectric Constant,εProcess 12.85±0.35 Z   10 GHz IPC-TM-650 2.5.5.5
Dielectric Constant,εDesign 12.2 - - 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor (process) 0.0019 Z - 10 GHz IPC-TM-650 2.5.5.5
Thermal Coefficient of dielectric constant -70 - ppm/°K -55℃-125℃ IPC-TM-650 2.5.5.5
Insulation Resistance >2000 - Gohm C/96/60/95 ASTM D257
Volume Resistivity - - Mohm.cm - ASTM D257
Surface Resistivity - - Mohm - ASTM D257
Electrical Strength(dielectric strength) 213 Z V/mil - IPC-TM-650 method 2.5.6.2
Thermal Properties
Decompositioin Temperature(Td) 425 425 ℃TGA - ASTM D3850
Coefficient of Thermal Expansion - x 19 X ppm/K 0 to 140 ℃ ASTM E 831 IPC-TM-650, 2.4.41
Coefficient of Thermal Expansion - Y 19 Y ppm/K 0 to 140 ℃ ASTM E 831 IPC-TM-650, 2.4.41
Coefficient of Thermal Expansion - Z 20 Z ppm/K 0 to 140 ℃ ASTM E 831 IPC-TM-650, 2.4.41
Thermal Conductivity - Z W/m/K 80 ℃ ASTM C518
Mechanical Properties
Copper Peel Strength after Thermal Stress 4.0 (0.7) X,Y lb/inch (N/mm) after solder float 1 oz. EDC IPC-TM-650 Method 2.4.8
Flexural Strength (MD/CMD) - X,Y kpsi A ASTM D790
Flexural Modulus (MD/CMD) - X,Y Mpsi A ASTM D790
Physical Properties
Moisture Absorption (2X2) 1.27mm (0.050") 0.16 - % D/24/23 ASTM D570
3.18mm (0.125") 0.13
Specific Gravity 3 - - A ASTM D792
Specific Heat Capacity - - J/g/K A Calculated
Lead-Free Process Compatible YES - - - -



Tags:

RO4003C LoPro Rogers PCB Board,

8mil Rogers PCB Board,

0.5oz Rogers PCB Board
