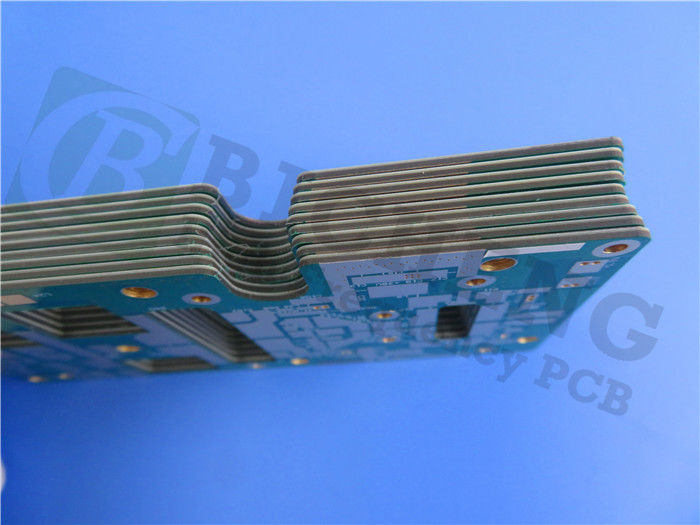

Radio Frequency Rogers RF PCB Board 30mil TMM10 For Couplers

Radio Frequency Rogers RF PCB Board 30mil TMM10 For Couplers
Radio Frequency Rogers RF PCB Board 30mil TMM10 For Couplers Radio Frequency Rogers RF PCB Board 30mil TMM10 For Couplers

Large Image :  Radio Frequency Rogers RF PCB Board 30mil TMM10 For Couplers

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-150.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Ceramic, Hydrocarbon, Thermoset Polymer Composites Layer Count: Double Layer, Multilayer, Hybrid PCB
PCB Size: ≤400mm X 500mm PCB Thickness: 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil(0.762mm), 50mil (1.27mm), 60mil (1.524mm), 75mil(1.905mm), 100mil (2.54mm), 125mil (3.175mm), 150mil (3.81mm), 200mil (5.08mm), 250mil (6.35mm), 275mil (6.985mm), 300mil (7.62mm), 500m
Solder Mask: Green, Black, Blue, Yellow, Red Etc. Copper Weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish: Bare Copper, HASL, ENIG, OSP Etc..
High Light:

Rogers Radio Frequency RF PCB Board

,

30mil RF PCB Board

,

Couplers Rogers PCB Board



Rogers Radio Frequency (RF) PCBs Built on 30mil 0.762mm TMM10 with Immersion Gold for Filters and Couplers.



Rogers’ TMM10 thermoset microwave materials are ceramic, hydrocarbon, thermoset polymer composites designed for high plated-thru-hole reliability stripline and microstrip applications.



The electrical and mechanical properties of TMM10 laminates combine many of the benefits of both ceramic and traditional PTFE microwave circuit laminates, without requiring the specialized production techniques common to these materials.



TMM10 laminates have an exceptionally low thermal coefficient of dielectric constant, typically less than 30 ppm/°C. The material’s isotropic coefficients of thermal expansion, very closely matched to copper, allow for production of high reliability plated through holes, and low etch shrinkage values. Furthermore, the thermal conductivity of TMM10 laminates is approximately twice that of traditional PTFE/ceramic laminates, facilitating heat removal.



TMM10 laminates are based on thermoset resins, and do not soften when heated. As a result, wire bonding of component leads to circuit traces can be performed without concerns of pad lifting or substrate deformation.



Some Typical Applications:

1. Global Positioning Systems Antennas

2. Power amplifiers and combiners

3. RF and microwave circuitry

4. Satellite communication systems



Radio Frequency Rogers RF PCB Board 30mil TMM10 For Couplers 0



Our Capabilities (TMM10)

PCB Capability (TMM10)
PCB Material: Ceramic, Hydrocarbon, Thermoset Polymer Composites
Designation: TMM10
Dielectric constant: 9.20 ±0.23
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil(0.762mm), 50mil (1.27mm), 60mil (1.524mm), 75mil(1.905mm), 100mil (2.54mm), 125mil (3.175mm), 150mil (3.81mm), 200mil (5.08mm), 250mil (6.35mm), 275mil (6.985mm), 300mil (7.62mm), 500mil (12.70mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP etc..



Data Sheet of TMM10

TMM10 Typical Value
Property   TMM10 Direction Units Condition Test Method
Dielectric Constant,εProcess 9.20±0.23 Z   10 GHz IPC-TM-650 2.5.5.5
Dielectric Constant,εDesign 9.8 - - 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor (process) 0.0022 Z - 10 GHz IPC-TM-650 2.5.5.5
Thermal Coefficient of dielectric constant -38 - ppm/°K -55℃-125℃ IPC-TM-650 2.5.5.5
Insulation Resistance >2000 - Gohm C/96/60/95 ASTM D257
Volume Resistivity 2 x 108 - Mohm.cm - ASTM D257
Surface Resistivity 4 x 107 - Mohm - ASTM D257
Electrical Strength(dielectric strength) 285 Z V/mil - IPC-TM-650 method 2.5.6.2
Thermal Properties
Decompositioin Temperature(Td) 425 425 ℃TGA - ASTM D3850
Coefficient of Thermal Expansion - x 21 X ppm/K 0 to 140 ℃ ASTM E 831 IPC-TM-650, 2.4.41
Coefficient of Thermal Expansion - Y 21 Y ppm/K 0 to 140 ℃ ASTM E 831 IPC-TM-650, 2.4.41
Coefficient of Thermal Expansion - Z 20 Z ppm/K 0 to 140 ℃ ASTM E 831 IPC-TM-650, 2.4.41
Thermal Conductivity 0.76 Z W/m/K 80 ℃ ASTM C518
Mechanical Properties
Copper Peel Strength after Thermal Stress 5.0 (0.9) X,Y lb/inch (N/mm) after solder float 1 oz. EDC IPC-TM-650 Method 2.4.8
Flexural Strength (MD/CMD) 13.62 X,Y kpsi A ASTM D790
Flexural Modulus (MD/CMD) 1.79 X,Y Mpsi A ASTM D790
Physical Properties
Moisture Absorption (2X2) 1.27mm (0.050") 0.09 - % D/24/23 ASTM D570
3.18mm (0.125") 0.2
Specific Gravity 2.77 - - A ASTM D792
Specific Heat Capacity 0.74 - J/g/K A Calculated
Lead-Free Process Compatible YES - - - -



Radio Frequency Rogers RF PCB Board 30mil TMM10 For Couplers 1
